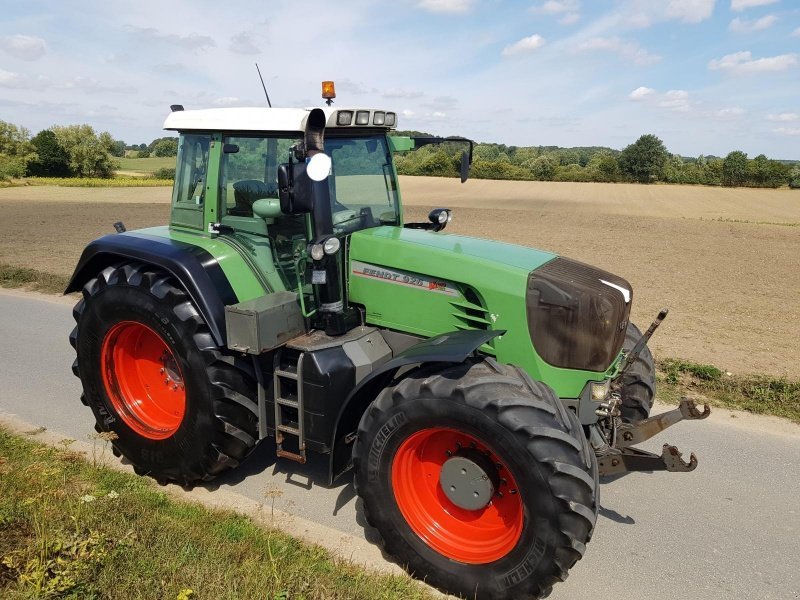

Fendt 926 Vario-TMS
Built: 2002–2006 · Series: 900 Vario
More machines from model year 2002
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Fendt 900 Vario (since 1995) – the world's first continuously variable tractor: 926 Vario of 1995, 916 to 926 with MAN, 920 to 930 with Deutz 7.15 l, 927 to 939 with 7.8 l and SCR, 132 to 265 kW
The 900 Vario is the tractor that changed farm machinery: in 1995 Fendt presented with the 926 Vario the first production tractor with a continuously variable transmission – the power-split Vario transmission, developed in Marktoberdorf, that drives from zero to 50 km/h without gears and is today copied by almost every maker. The type logic: the 9 stands for the series, the following digits order the power step – 916 about 160 hp, 926 about 260 hp, 939 about 390 hp. Three generations appear in the register: the first with 916 to 926 (1995 to 2002) and MAN six-cylinders of 6.9 litres, the second with 920 to 930 (2002 to 2010) and Deutz engines of 7.15 litres, the third with 927 to 939 (from 2010) and Deutz engines of 7.8 litres with SCR aftertreatment, with which the 939 Vario reached 390 hp; TMS marks the tractor management system.
Read on 3 more paragraphs
The register lists 10 versions with 132 to 265 kW (180 to 390 hp), 6,871 to 7,755 cm³ with six cylinders, torque from 825 to 1,482 Nm at 2,150 to 2,250 rpm, unladen weights from 8,750 to 10,830 kg, gross weights from 16,000 to 18,000 kg, lengths from 4,940 to 5,655 mm, widths from 2,550 to 2,750 mm and heights from 3,095 to 3,372 mm; the fuel approvals name diesel, RME and AdBlue.
The 926 Vario of 1995 stands today in the Deutsches Museum; for two decades the range was the reference of large tractors and the reason Fendt became market leader in the class above 200 hp.
On used tractors, operating hours, the condition of the Vario transmission, engine and, on the third generation, the SCR system, front-axle and cab suspension, hydraulics and the electronics count; the early 926s with MAN engine are by now collector pieces of farm-machinery history.
Sources: SpecCodex register, model data: Fendt 900 Vario, Fendt 900 Vario (manufacturer)
Technical data
Engine
| Fuel | Diesel /Biodieselcorrect |
|---|---|
| Power | 270 hp (199 kW)correct |
| Rated speed | 2,250 rpmcorrect |
| Torque | 1,180 Nmcorrect |
| Speed at max. torque | 1,400 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 6,871 cm³correct |
| Bore | 108 mmcorrect |
| Stroke | 125 mmcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,940 mmcorrect |
|---|---|
| Width | 2,640 mmcorrect |
| Height | 3,110 mmcorrect |
| Wheelbase | 2,840 mmcorrect |
| Ground clearance | 605 mmcorrect |
| Unladen weight | 8,800 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | continuously variablecorrect |
| Front tyres | 600/65 R 34correct |
| Rear tyres | 650/85 R 38correct |
| Top speed | 50 km/hcorrect |
Origin and approval
| Construction | cast semi-framecorrect |
|---|
Where this model stands
Power-to-weight ratio: 22.6 kW/t (199 kW / 8.8 t)
Power class: Heavy (> 180 hp)
Stronger than 96% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Fendt 926 Vario-TMS have?
The Fendt 926 Vario-TMS delivers 270 hp.
How much does the Fendt 926 Vario-TMS weigh?
The unladen weight is 8,800 kg.
What engine does the Fendt 926 Vario-TMS have?
6 cylinders, 6,871 cm³ displacement, Diesel /Biodiesel.
How fast does the Fendt 926 Vario-TMS go?
Top speed is 50 km/h.
What are the dimensions of the Fendt 926 Vario-TMS?
4,940 mm × 2,640 mm × 3,110 mm.
When was the Fendt 926 Vario-TMS built?
Production years: 2002–2006.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 23 individual figures for this model. They come from 2 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
