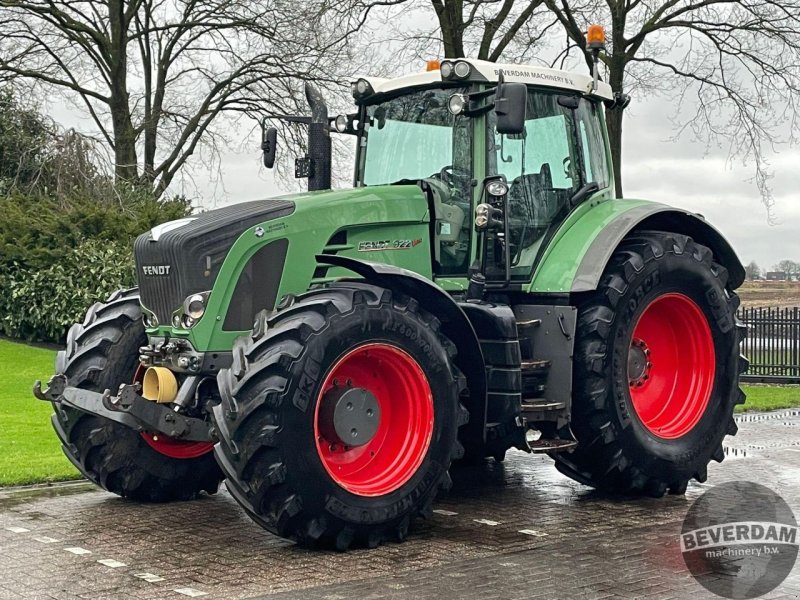

Fendt 922 Vario
Built: 2005–2010 · Series: 900 Vario
More machines from model year 2005
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Fendt 900 Vario (since 1995) – the world's first continuously variable tractor: 926 Vario of 1995, 916 to 926 with MAN, 920 to 930 with Deutz 7.15 l, 927 to 939 with 7.8 l and SCR, 132 to 265 kW
The 900 Vario is the tractor that changed farm machinery: in 1995 Fendt presented with the 926 Vario the first production tractor with a continuously variable transmission – the power-split Vario transmission, developed in Marktoberdorf, that drives from zero to 50 km/h without gears and is today copied by almost every maker. The type logic: the 9 stands for the series, the following digits order the power step – 916 about 160 hp, 926 about 260 hp, 939 about 390 hp. Three generations appear in the register: the first with 916 to 926 (1995 to 2002) and MAN six-cylinders of 6.9 litres, the second with 920 to 930 (2002 to 2010) and Deutz engines of 7.15 litres, the third with 927 to 939 (from 2010) and Deutz engines of 7.8 litres with SCR aftertreatment, with which the 939 Vario reached 390 hp; TMS marks the tractor management system.
Read on 3 more paragraphs
The register lists 10 versions with 132 to 265 kW (180 to 390 hp), 6,871 to 7,755 cm³ with six cylinders, torque from 825 to 1,482 Nm at 2,150 to 2,250 rpm, unladen weights from 8,750 to 10,830 kg, gross weights from 16,000 to 18,000 kg, lengths from 4,940 to 5,655 mm, widths from 2,550 to 2,750 mm and heights from 3,095 to 3,372 mm; the fuel approvals name diesel, RME and AdBlue.
The 926 Vario of 1995 stands today in the Deutsches Museum; for two decades the range was the reference of large tractors and the reason Fendt became market leader in the class above 200 hp.
On used tractors, operating hours, the condition of the Vario transmission, engine and, on the third generation, the SCR system, front-axle and cab suspension, hydraulics and the electronics count; the early 926s with MAN engine are by now collector pieces of farm-machinery history.
Sources: SpecCodex register, model data: Fendt 900 Vario, Fendt 900 Vario (manufacturer)
Technical data
Engine
| Fuel | Diesel/RMEcorrect |
|---|---|
| Power | 190 hp (140 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Torque | 913 Nmcorrect |
| Speed at max. torque | 1,450 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 7,142 cm³correct |
| Bore | 108 mmcorrect |
| Stroke | 130 mmcorrect |
| Compression ratio | 17correct |
| Injection pressure | 1,600 barcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 5,655 mmcorrect |
|---|---|
| Width | 2,750 mmcorrect |
| Height | 3,322 mmcorrect |
| Wheelbase | 3,050 mmcorrect |
| Ground clearance | 480 mmcorrect |
| Unladen weight | 10,080 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | continuously variablecorrect |
| Front tyres | 540/65 R 34correct |
| Rear tyres | 650/65 R 42correct |
| Top speed | 50 km/hcorrect |
Working data
| Fuel tank capacity | 24 lcorrect |
|---|
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Other data
| Linkage category | Cat IIIcorrect |
|---|---|
| PTO speed | 540E/1000 rpmcorrect |
Where this model stands
Power-to-weight ratio: 13.9 kW/t (140 kW / 10.1 t)
Power class: Heavy (> 180 hp)
Stronger than 90% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Fendt 922 Vario have?
The Fendt 922 Vario delivers 190 hp.
How much does the Fendt 922 Vario weigh?
The unladen weight is 10,080 kg.
What engine does the Fendt 922 Vario have?
6 cylinders, 7,142 cm³ displacement, Diesel/RME.
How fast does the Fendt 922 Vario go?
Top speed is 50 km/h.
What are the dimensions of the Fendt 922 Vario?
5,655 mm × 2,750 mm × 3,322 mm.
When was the Fendt 922 Vario built?
Production years: 2005–2010.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
