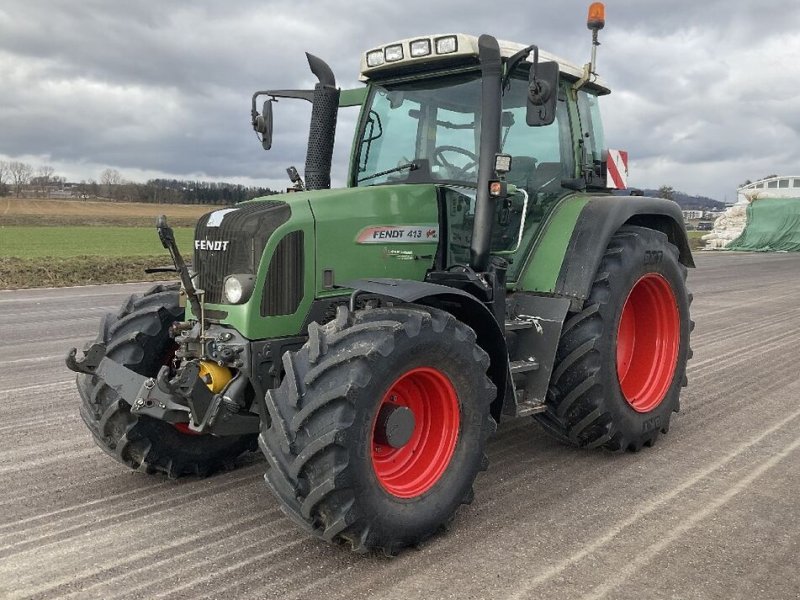

Fendt 413 Vario

Built: 2006–2013 · Series: 400 Vario

More machines from model year 2006

Source: https://www.technikboerse.at/gebraucht/traktor-357/fendt-370

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The 413 Vario from Fendt is part of the 400 Vario series. Production: 2006–2013. The engine delivers 120 hp (88 kW), has 4 cylinders, with a displacement of 4,038 cm³. Torque is 589 Nm. Rated speed is 2,100 rpm. The machine is 4,242 mm long, 2,380 mm wide and 2,923 mm high. The unladen weight is 5,420 kg. The wheelbase measures 2,417 mm. Ground clearance is 482 mm. Top speed is 40 km/h. The tank holds 245 litres. Transmission: continuously variable. The engine is water-cooled. Tyres: front 540/65 R 24, rear 600/65 R 38. The fuel is Diesel/RME. The bore measures 101 mm. The stroke is 126 mm. The compression ratio is 18:1. Maximum torque is reached at 1,400 rpm. Construction: cast semi-frame. Injection pressure is 1600 bar. The linkage is category II/III. The PTO runs at 540/540E/1000 rpm. The 400 Vario series covers 4 models. Rated output within it ranges from 100 to 140 hp; the 413 Vario sits in the middle of that range with 120 hp. Its immediate neighbours are the 411 Vario below it with 100 hp and the 414 Vario above it with 130 hp. Unladen weight within it ranges from 5,400 to 5,450 kg; here the 413 Vario sits in the middle of that range with 5,420 kg. 1545 Fendt models across 89 series are on record.

Fendt 400 Vario – compact class from Marktoberdorf since 1998: stepless Vario transmission, four-cylinder of 4,038 cm3, 74 to 103 kW, diesel/RME

The 400 Vario series has been built at the Fendt plant in Marktoberdorf in the Allgäu since 1998 and was one of the first ranges in which Fendt also offered its stepless Vario transmission in the compact class. The type numbers 411 to 415 order the four models by ascending engine output within the same range.

Read on 3 more paragraphs

The register lists here four versions with 74 to 103 kW (100 to 140 hp) from four-cylinder engines of 4,038 cm3 displacement. Unladen weight ranges from 5,400 to 5,450 kg, and one version reaches a permissible gross weight of 9,500 kg. Overall length sits between 4,242 and 4,281 mm, width between 2,340 and 2,490 mm, height between 2,900 and 2,953 mm. Torque ranges from 505 to 652 Nm at a rated speed of 2,100 rpm; all four engines are approved for operation on diesel and rapeseed methyl ester (RME).

With a stepless transmission and a power band of 100 to 140 hp, the 400 Vario series positioned itself in the mid segment of modern field tractors, covering comfortable fieldwork with stepless speed control as well as transport and PTO work.

On a used purchase of the Vario transmission, what counts is the oil change intervals, the condition of the hydrostatic unit and the fault memory of the transmission control, along with the PTO clutch, the tightness of the hydraulics and lift linkage, and rust on the frame and cab mounting. Spare parts and diagnostics run through the Fendt/AGCO dealer network.

Sources: SpecCodex register, model data: Fendt 400 Vario, Fendt (AGCO, Hersteller)

Technical data

Engine

Fuel	Diesel/RMEcorrect
Power	120 hp (88 kW)correct
Rated speed	2,100 rpmcorrect
Torque	589 Nmcorrect
Speed at max. torque	1,400 rpmcorrect
Cylinders	4correct
Displacement	4,038 cm³correct
Bore	101 mmcorrect
Stroke	126 mmcorrect
Compression ratio	18correct
Injection pressure	1,600 barcorrect
Cooling	water-cooledcorrect

Dimensions and weights

Length	4,242 mmcorrect
Width	2,380 mmcorrect
Height	2,923 mmcorrect
Wheelbase	2,417 mmcorrect
Ground clearance	482 mmcorrect
Unladen weight	5,420 kgcorrect

Drivetrain and chassis

Drive	four-wheel drivecorrect
Gearbox	continuously variablecorrect
Front tyres	540/65 R 24correct
Rear tyres	600/65 R 38correct
Top speed	40 km/hcorrect

Working data

Fuel tank capacity	245 lcorrect

Origin and approval

Construction	cast semi-framecorrect

Other data

Linkage category	Cat II/IIIcorrect
PTO speed	540/540E/1000 rpmcorrect

Where this model stands

Power-to-weight ratio: 16.2 kW/t (88 kW / 5.4 t)

Power class: Large (100–180 hp)

Stronger than 74% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Fendt 413 Vario have?

The Fendt 413 Vario delivers 120 hp.

How much does the Fendt 413 Vario weigh?

The unladen weight is 5,420 kg.

What engine does the Fendt 413 Vario have?

4 cylinders, 4,038 cm³ displacement, Diesel/RME.

How fast does the Fendt 413 Vario go?

Top speed is 40 km/h.

What are the dimensions of the Fendt 413 Vario?

4,242 mm × 2,380 mm × 2,923 mm.

When was the Fendt 413 Vario built?

Production years: 2006–2013.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
