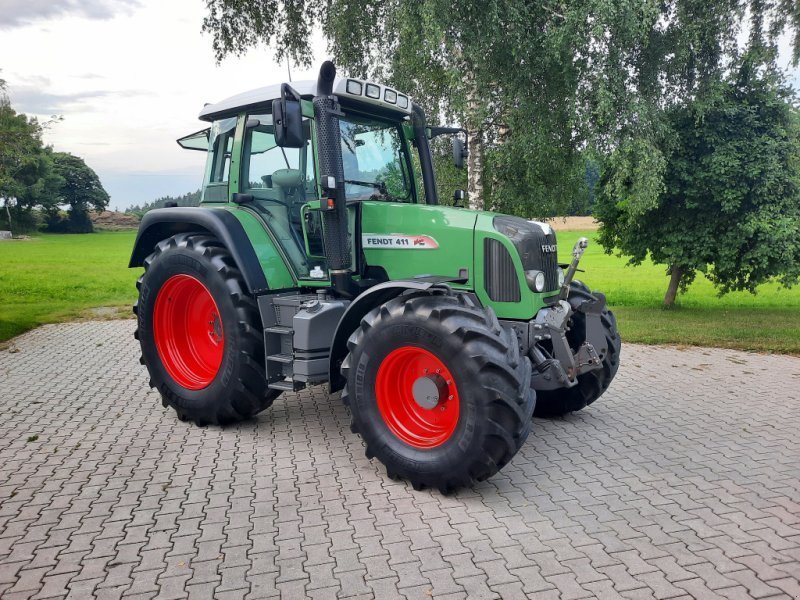

Fendt 411 Vario

Built: 2006–2013 · Series: 400 Vario

More machines from model year 2006

Source: https://www.technikboerse.com/gebraucht/traktor-357/fendt-37

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the 411 Vario, Fendt offers a model from the 400 Vario series. Production: 2006–2013. The engine delivers 100 hp (74 kW), has 4 cylinders, with a displacement of 4,038 cm³. Torque is 505 Nm. Rated speed is 2,100 rpm. The machine is 4,252 mm long, 2,340 mm wide and 2,900 mm high. The unladen weight is 5,400 kg. The wheelbase measures 2,417 mm. Ground clearance is 462 mm. Top speed is 40 km/h. The tank holds 245 litres. Transmission: continuously variable. The engine is water-cooled. Tyres: front 480/65 R 24, rear 540/65 R 38. The fuel is Diesel/RME. Construction: semi-frame construction. The linkage is category II/III. The 400 Vario series covers 4 models. Rated output within it ranges from 100 to 140 hp; the 411 Vario sits at the bottom of that range with 100 hp. Its immediate neighbours are the 413 Vario above it with 120 hp. Unladen weight within it ranges from 5,400 to 5,450 kg; here the 411 Vario sits at the bottom of that range with 5,400 kg. 1545 Fendt models across 89 series are on record.

Fendt 400 Vario – compact class from Marktoberdorf since 1998: stepless Vario transmission, four-cylinder of 4,038 cm3, 74 to 103 kW, diesel/RME

The 400 Vario series has been built at the Fendt plant in Marktoberdorf in the Allgäu since 1998 and was one of the first ranges in which Fendt also offered its stepless Vario transmission in the compact class. The type numbers 411 to 415 order the four models by ascending engine output within the same range.

Read on 3 more paragraphs

The register lists here four versions with 74 to 103 kW (100 to 140 hp) from four-cylinder engines of 4,038 cm3 displacement. Unladen weight ranges from 5,400 to 5,450 kg, and one version reaches a permissible gross weight of 9,500 kg. Overall length sits between 4,242 and 4,281 mm, width between 2,340 and 2,490 mm, height between 2,900 and 2,953 mm. Torque ranges from 505 to 652 Nm at a rated speed of 2,100 rpm; all four engines are approved for operation on diesel and rapeseed methyl ester (RME).

With a stepless transmission and a power band of 100 to 140 hp, the 400 Vario series positioned itself in the mid segment of modern field tractors, covering comfortable fieldwork with stepless speed control as well as transport and PTO work.

On a used purchase of the Vario transmission, what counts is the oil change intervals, the condition of the hydrostatic unit and the fault memory of the transmission control, along with the PTO clutch, the tightness of the hydraulics and lift linkage, and rust on the frame and cab mounting. Spare parts and diagnostics run through the Fendt/AGCO dealer network.

Sources: SpecCodex register, model data: Fendt 400 Vario, Fendt (AGCO, Hersteller)

Technical data

Engine

Fuel	Diesel/RMEcorrect
Power	100 hp (74 kW)correct
Rated speed	2,100 rpmcorrect
Torque	505 Nmcorrect
Cylinders	4correct
Displacement	4,038 cm³correct
Cooling	water-cooledcorrect

Dimensions and weights

Length	4,252 mmcorrect
Width	2,340 mmcorrect
Height	2,900 mmcorrect
Wheelbase	2,417 mmcorrect
Ground clearance	462 mmcorrect
Unladen weight	5,400 kgcorrect

Drivetrain and chassis

Drive	four-wheel drivecorrect
Gearbox	continuously variablecorrect
Front tyres	480/65 R 24correct
Rear tyres	540/65 R 38correct
Top speed	40 km/hcorrect

Working data

Fuel tank capacity	245 lcorrect

Origin and approval

Construction	semi-frame constructioncorrect

Other data

Linkage category	Cat II/IIIcorrect

Where this model stands

Power-to-weight ratio: 13.7 kW/t (74 kW / 5.4 t)

Power class: Universal (40–100 hp)

Stronger than 66% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Fendt 411 Vario have?

The Fendt 411 Vario delivers 100 hp.

How much does the Fendt 411 Vario weigh?

The unladen weight is 5,400 kg.

What engine does the Fendt 411 Vario have?

4 cylinders, 4,038 cm³ displacement, Diesel/RME.

How fast does the Fendt 411 Vario go?

Top speed is 40 km/h.

What are the dimensions of the Fendt 411 Vario?

4,252 mm × 2,340 mm × 2,900 mm.

When was the Fendt 411 Vario built?

Production years: 2006–2013.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
