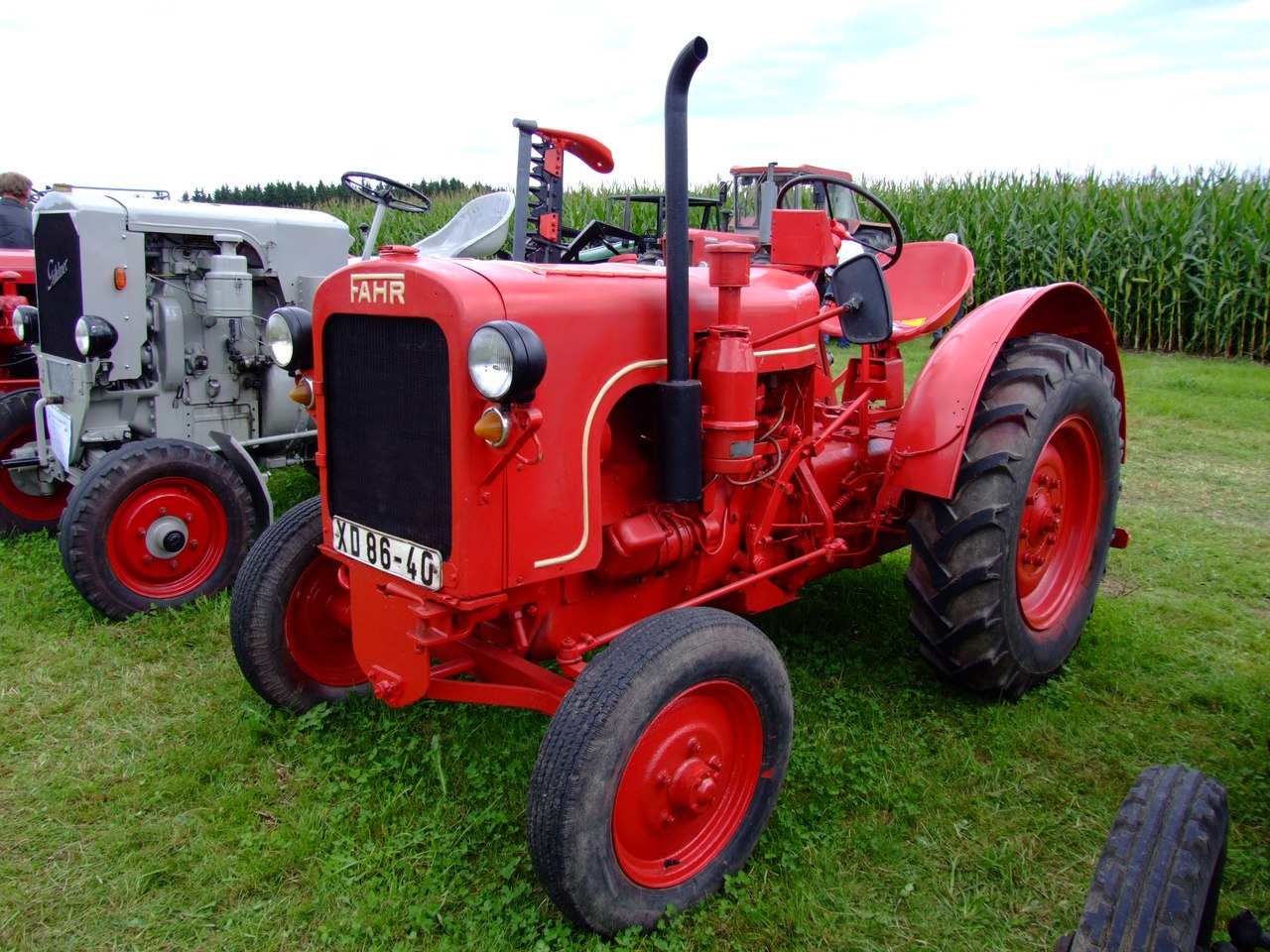

Fahr F 22
Lata produkcji: 1938–1940 · Seria: Pozostałe modele
Dane techniczne
| Construction | Blockbauweise |
| Cooling | Wasserkühlung |
| Cylinders | 2 |
| Displacement cm3 | 2198 cm3 |
| Drive type | Hinterradantrieb |
| Fuel | Diesel |
| Gearbox | 3V/1R oder 5V/1R |
| Ground clearance mm | 290 mm |
| Height mm | 1800 mm |
| Length mm | 2800 mm |
| Power km | 22 KM |
| Power kw | 16.2 kW |
| Rated rpm | 1.550 obr./min |
| Tires front | 5.25 x 16 |
| Tires rear | 9.00 x 24 |
| Top speed kmh | 8.0 km/h |
| Units built | 450 |
| Weight kg | 1820 kg |
| Wheelbase mm | 1700 mm |
| Width mm | 1535 mm |
