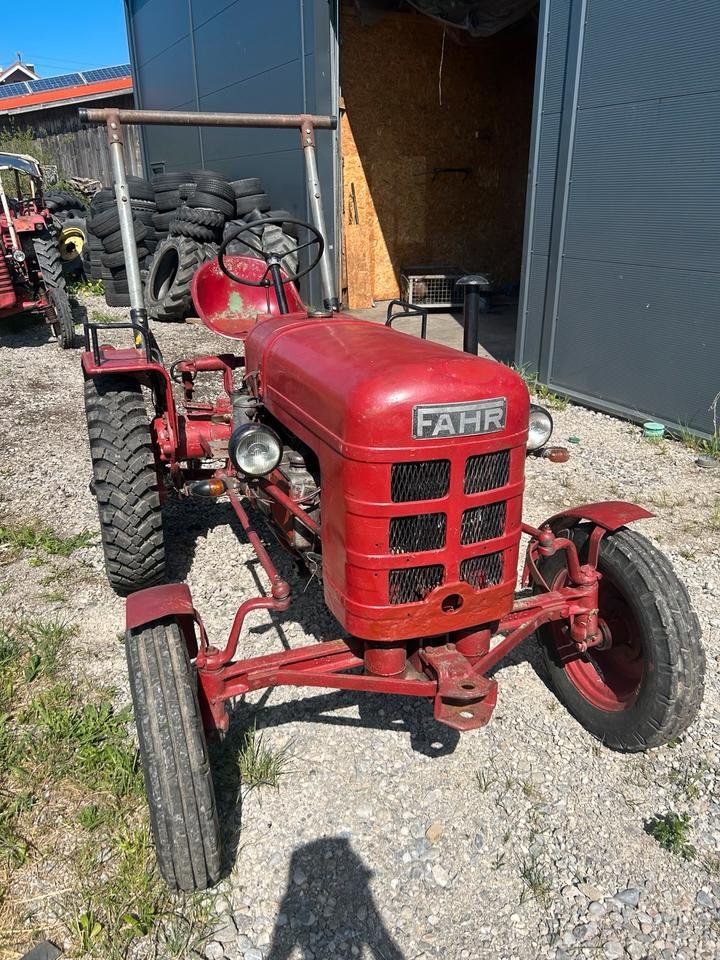

Fahr D 17 NHA
Built: 1953–1955 · Series: Other models
More machines from model year 1953
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Fahr – other models: German tractors outside the named ranges, from the D 17 and D 25 to the D 30 and D 270 B, 8.8 to 123 kW, Deutz and Mercedes-Benz engines from Gottmadingen before the Deutz-Fahr merger
This page gathers the Fahr tractors the register could not assign to a named range – tractors of the brand from Gottmadingen on Lake Constance, founded in 1870 by Johann Georg Fahr as a maker of mowers and threshers, which entered tractor manufacture in the 1930s. In 1968 Fahr merged with Deutz to form Deutz-Fahr; the D types gathered here date from before that merger. The type logic is simple: D stands for diesel, the following number gives roughly the power class (D 17 around 17 hp, D 25 around 25 hp, D 30 around 30 hp), N and NA mark standard-track and four-wheel-drive versions, H the row-crop tractor with high ground clearance and narrow track, W the vineyard tractor. Early on, Fahr also sourced engines from Mercedes-Benz – the OM 636 series appears alongside the company's own Deutz engines – before the brand switched entirely to air-cooled Deutz diesels after the merger.
Read on 3 more paragraphs
The register lists here 29 versions with 8.8 to 123 kW from one- to six-cylinders of 815 to 2,660 cm³, unladen weights from 1,050 to 2,130 kg, lengths from 2,470 to 3,070 mm, widths from 1,515 to 1,800 mm and rated speeds from 1,550 to 2,000 rpm.
Alongside Deutz, Hanomag and Eicher, Fahr was one of the defining West German tractor brands of the post-war decades, with strongholds in southern Germany and exports to southern Europe; the air-cooled Deutz engines that became standard after the merger shaped the brand's technical legacy into the Deutz-Fahr era.
On used tractors, the early Mercedes-engined models call for checking the cooling system and injection pump, the air-cooled Deutz engines the condition of the blower and cooling fins, plus the state of clutch, gearbox and hydraulics and rust on sheet metal and mudguards; parts for the Deutz engines run through today's Deutz-Fahr network, for the Mercedes units only through specialists.
Sources: SpecCodex register, model data: Fahr (weitere Modelle), Deutz-Fahr
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 17 hp (12.5 kW)correct |
| Rated speed | 1,800 rpmcorrect |
| Cylinders | 2correct |
| Displacement | 1,305 cm³correct |
| Bore | 85 mmcorrect |
| Stroke | 110 mmcorrect |
| Injection pressure | 160 barcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 2,650 mmcorrect |
|---|---|
| Width | 1,562 mmcorrect |
| Height | 1,802 mmcorrect |
| Wheelbase | 1,635 mmcorrect |
| Ground clearance | 460 mmcorrect |
| Unladen weight | 1,330 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 6V/1Rcorrect |
| Forward gears | 6correct |
| Reverse gears | 1correct |
| Front tyres | 5.50-16 ASFcorrect |
| Rear tyres | 8-32 AScorrect |
| Top speed | 19.8 km/hcorrect |
Working data
| Fuel tank capacity | 25 lcorrect |
|---|
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|---|
| Units built | 63correct |
Where this model stands
Power-to-weight ratio: 9.4 kW/t (12 kW / 1.3 t)
Power class: Compact (< 40 hp)
Stronger than 5% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Fahr D 17 NHA have?
The Fahr D 17 NHA delivers 17 hp.
How much does the Fahr D 17 NHA weigh?
The unladen weight is 1,330 kg.
What engine does the Fahr D 17 NHA have?
2 cylinders, 1,305 cm³ displacement, Diesel.
How fast does the Fahr D 17 NHA go?
Top speed is 19.8 km/h.
What are the dimensions of the Fahr D 17 NHA?
2,650 mm × 1,562 mm × 1,802 mm.
When was the Fahr D 17 NHA built?
Production years: 1953–1955.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
