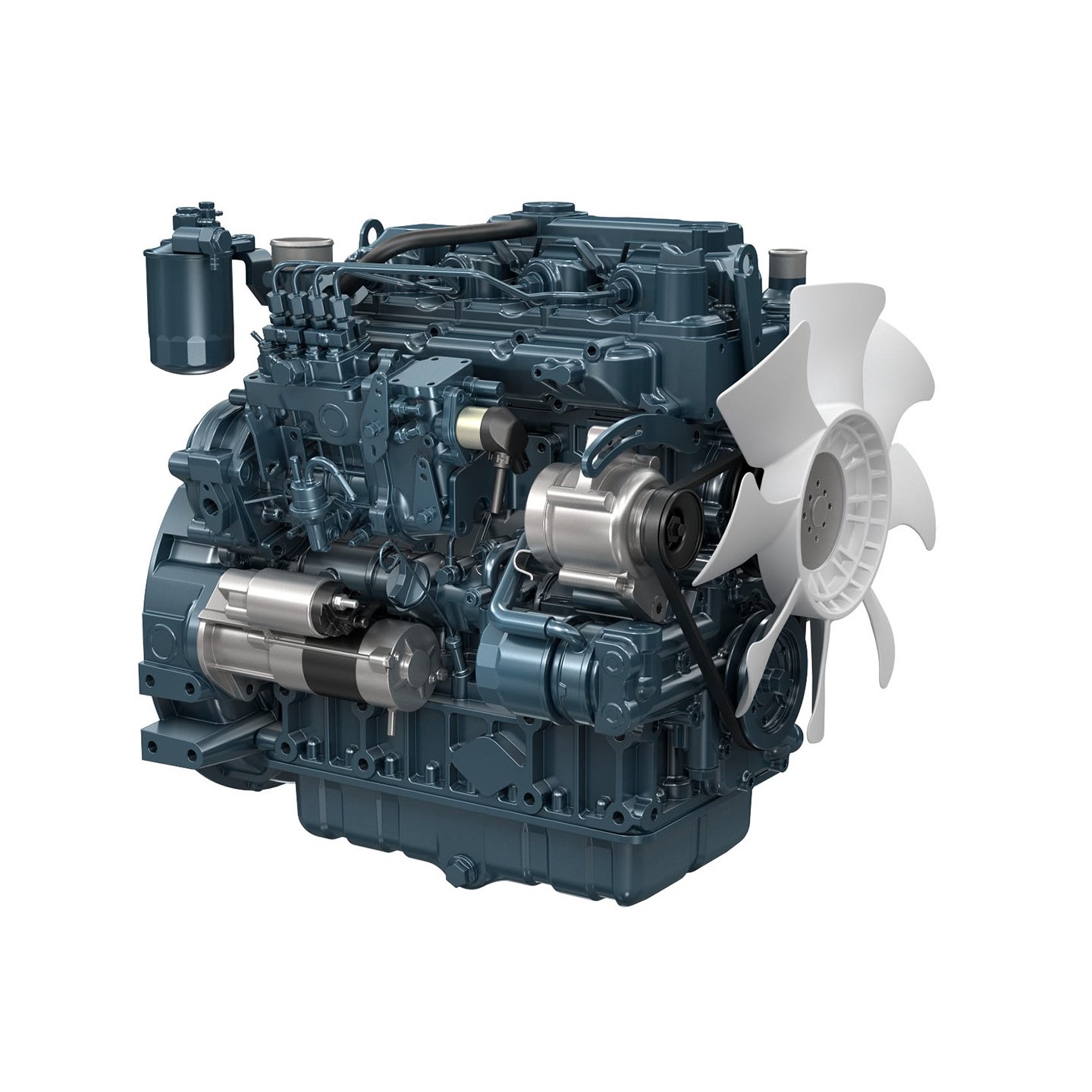

Escorts Kubota CAELL2.14FTD
Built: 2012 · Series: Other models
More machines from model year 2012
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Escorts Kubota – other nonroad diesel engines: the collective page of three- and four-cylinder ranges outside the named models, model years 2012 to 2023, 25 to 54 kW, Tier 4 Final and Interim Tier 4
Escorts Kubota, the tractor and engine brand formed from the farm-machinery division of the Indian Escorts group with Kubota's stake, carries a second certification series in the EPA register alongside Escorts Kubota Limited. This page gathers the engines the register could not assign to a named range, from the three-cylinder CAELL2.14FTD and CAELL3.14AFB to the four-cylinder E3.276CR, E3.276TR, KAELL3.46ECR and LAELL3.46ECR.
Read on 3 more paragraphs
The register lists here 6 versions with 25 to 54 kW rated output at 2,000 to 2,200 rpm, from three- to four-cylinders with 91 to 111.7 mm bore and 106.7 to 122 mm stroke, torques from 132 to 330.81 Nm. Four engines carry a turbocharger without a waste-gate valve, all run direct injection. The model years in the register run from 2012 as the earliest production start to 2023 as the latest end year; four versions reach the Tier 4 (Final or Phase-in) emission stage, two older ones Interim Tier 4.
These three- and four-cylinder engines have driven Escorts Kubota's mid-size tractor ranges for over a decade; the long span of model years shows that individual engine families carried on unchanged over many production years, as is typical for EPA certifications.
On a used purchase, on the older engines certified around 2012, operating hours and wear on the injection pump and turbocharger matter especially; on the newer model years, the common-rail injectors; plus the tightness of the charge-air and cooling system; spares run through the Escorts Kubota dealer network in India.
Sources: SpecCodex register, model data: Escorts Kubota (weitere Nonroad-Dieselmotoren)
Technical data
Engine
| Engine code | D10108430correct |
|---|---|
| Engine family | CAELL2.14FTDcorrect |
| Engine families | CAELL2.14FTDcorrect |
| Fuel | 300-500 ppm Low Sulfur Dieselcorrect |
| Rated output | 25 kWcorrect |
| Power band | 19<=kW<37correct |
| Rated speed | 2,200 rpmcorrect |
| Maximum torque | 132 N·mcorrect |
| Speed at max. torque | 1,200 rpmcorrect |
| Cylinders | 3correct |
| Cylinder layout | in linecorrect |
| Bore | 91 mmcorrect |
| Stroke | 110 mmcorrect |
| Operating cycle | four-stroke dieselcorrect |
| Injection | direct injectioncorrect |
| Aspiration | naturally aspiratedcorrect |
| Emissions stage | Interim Tier 4correct |
Origin and approval
| Version | D10108430correct |
|---|---|
| Built from | 2012correct |
| Built to | 2012correct |
| Model year from | 2012correct |
| Model year to | 2012correct |
Frequently asked questions
How much power does the Escorts Kubota CAELL2.14FTD have?
The Escorts Kubota CAELL2.14FTD delivers 25 kW.
When was the Escorts Kubota CAELL2.14FTD built?
Production years: 2012.
What to check before buying
- Match the data plate against the order: frame size, mounting and rating have to agree.
- For used units, ask about winding condition and bearing play.
- Ask about parts availability for this series — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
