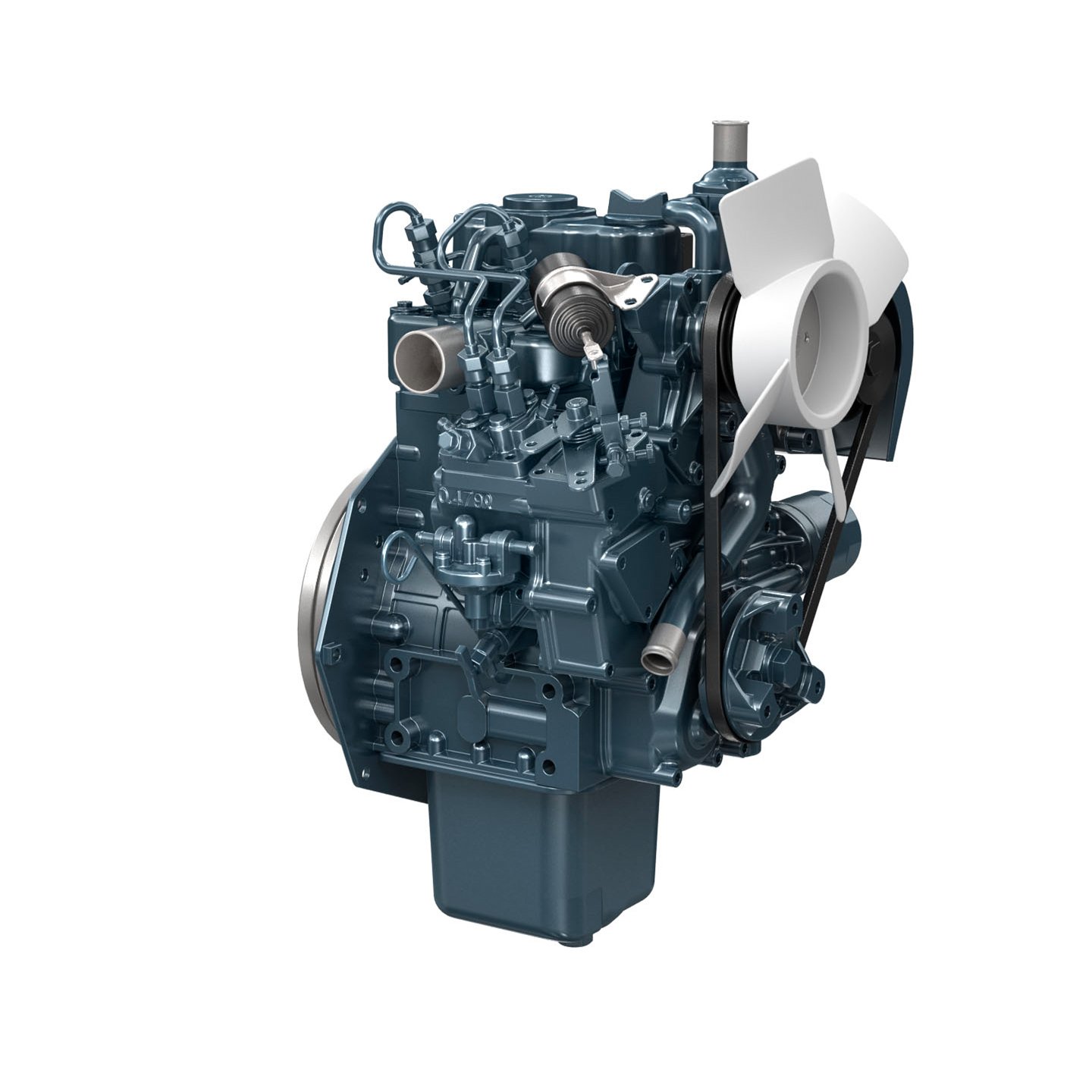

Escorts Kubota Limited CAELL2.14FTD
Built: 2012 · Series: Other models
More machines from model year 2012
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Escorts Kubota Limited – other nonroad diesel engines: the collective page of three- and four-cylinder ranges outside the named models, from Faridabad, 25 to 54 kW, Tier 4 Final and Interim Tier 4
Escorts Kubota Limited, headquartered in Faridabad, India, emerged from the farm-machinery division of the Indian Escorts group and Kubota's stake in it; the company builds tractors and their diesel engines for the Indian and export markets. This page gathers the engines the register could not assign to a named range, from the three-cylinder CAELL2.14FTD and CAELL3.14AFB to the four-cylinder E3.276CR, E3.276TR, KAELL3.46ECR and LAELL3.46ECR.
Read on 3 more paragraphs
The register lists here 6 versions with 25 to 54 kW rated output at 2,000 to 2,200 rpm, from three- to four-cylinders with 91 to 111.7 mm bore and 106.7 to 122 mm stroke, torques from 132 to 330.81 Nm. Four engines carry a turbocharger without a waste-gate valve, all run direct injection. Four versions reach the Tier 4 (Final or Phase-in) emission stage and are certified for non-California states only, two older versions carry Interim Tier 4 and are approved for both sales areas.
These three- and four-cylinder engines drive Escorts Kubota's mid-size tractor ranges for the Indian and export markets; combining Indian manufacturing with Kubota technology, the brand competes with John Deere and Mahindra in the mid power segment.
On a used purchase, operating hours and the service history of the direct injection count, the condition of the turbocharger, the tightness of the charge-air and cooling system, and on the Tier 4 versions the function of the exhaust aftertreatment; spares run through the Escorts Kubota dealer network in India.
Sources: SpecCodex register, model data: Escorts Kubota Limited (weitere Nonroad-Dieselmotoren)
Technical data
Engine
| Engine code | D10108430correct |
|---|---|
| Engine family | CAELL2.14FTDcorrect |
| Fuel | 300-500 ppm Low Sulfur Dieselcorrect |
| Rated output | 25 kWcorrect |
| Power band | 19<=kW<37correct |
| Rated speed | 2,200 rpmcorrect |
| Maximum torque | 132 N·mcorrect |
| Speed at max. torque | 1,200 rpmcorrect |
| Cylinders | 3correct |
| Cylinder layout | in linecorrect |
| Bore | 91 mmcorrect |
| Stroke | 110 mmcorrect |
| Operating cycle | four-stroke dieselcorrect |
| Injection | direct injectioncorrect |
| Aspiration | naturally aspiratedcorrect |
| Emissions stage | Interim Tier 4correct |
Origin and approval
| Version | D10108430correct |
|---|---|
| Sales region | bothcorrect |
Frequently asked questions
How much power does the Escorts Kubota Limited CAELL2.14FTD have?
The Escorts Kubota Limited CAELL2.14FTD delivers 25 kW.
When was the Escorts Kubota Limited CAELL2.14FTD built?
Production years: 2012.
What to check before buying
- Match the data plate against the order: frame size, mounting and rating have to agree.
- For used units, ask about winding condition and bearing play.
- Ask about parts availability for this series — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 19 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
