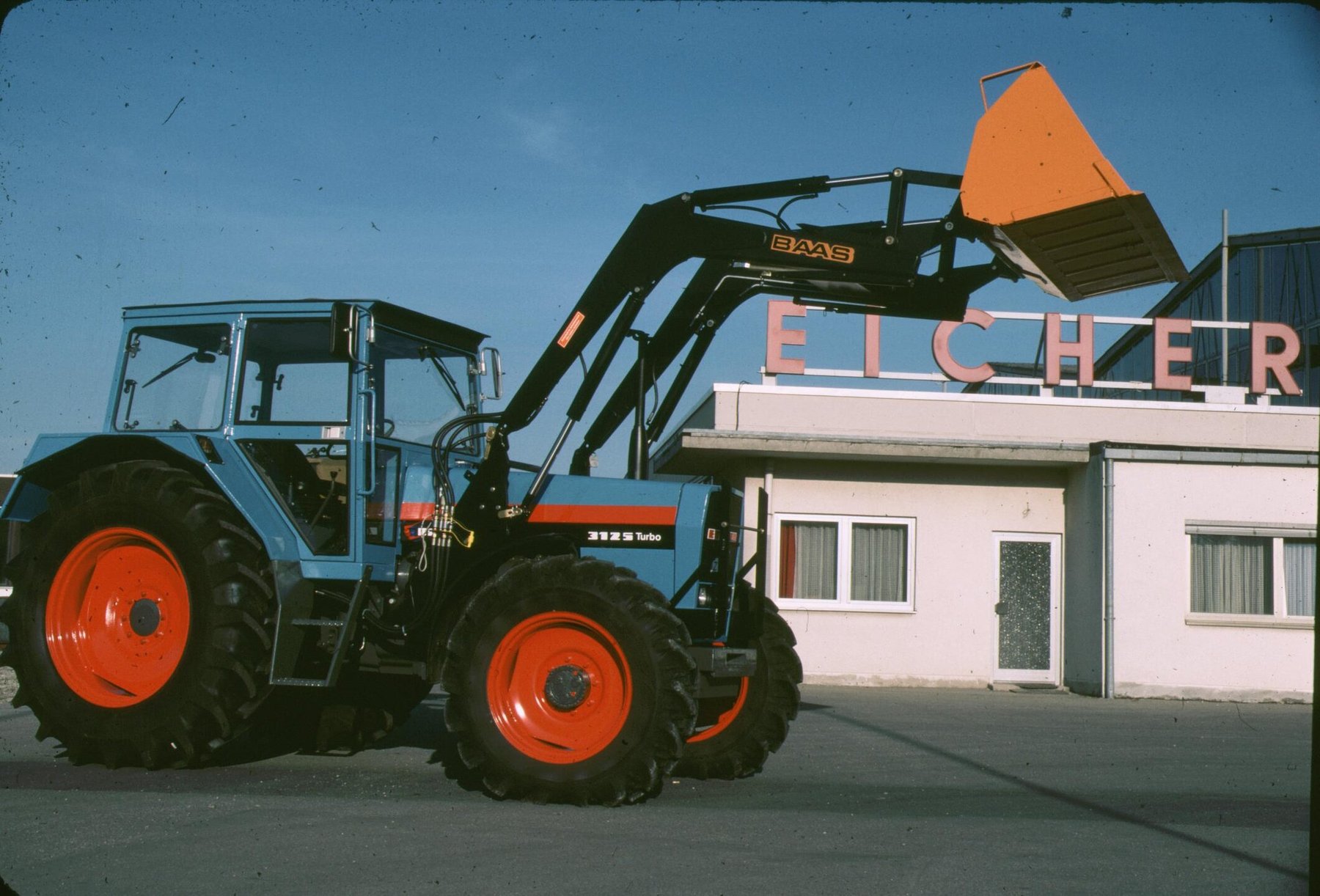

Eicher 550 P
Built: 1980–1981 · Series: 500 er - Reihe
More machines from model year 1980
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Eicher 500 series – narrow-track tractors of the early 1980s (1980–1986): 534 to 566, S, AS, SK and P, 880 to 1,245 mm wide
The 500 series is the narrow-track generation with which Eicher of Forstern entered the 1980s – according to the Traktorenlexikon the 535 S ran from 1980 to 1986, and the 534 S was one of the first Eichers with the new EDL engine, the air-cooled direct-injection unit that powers the range. It is the predecessor of the 600 series and shares its layout: air-cooled two- and three-cylinders with individual cylinders on a common crankcase, narrow track for vineyard, orchard and hop garden, and on the 535 S a gearbox with eleven forward and two reverse speeds.
Read on 3 more paragraphs
The type number rises with output – 534, 535, 542, 548, 550, 554, 566 – the letters name the version, and the register shows their logic in the widths: the S models are the narrow standard tractors at 880 to 1,070 mm, SK a variant of the same track, the P models (550 P, 554 P, 566 P) at 1,135 to 1,245 mm the wider plantation tractors; a leading A – AS, ASK, PA – means four-wheel drive, which makes the machine about 130 to 200 kg heavier. Values run from 1,963 to 2,944 cm³ with two or three cylinders, rated speeds of 2,000 to 2,150 rpm, unladen weights from 1,350 to 2,180 kg, lengths from 2,620 to 3,435 mm and heights from 1,210 to 2,100 mm; recorded outputs lie between 31 and 39.5 kW.
At 880 mm wide, the 535 S fits into vine rows too tight for any standard tractor – that was Eicher's market niche once the big suppliers had taken over the full range.
On used tractors, the condition of the air-cooled cylinders and blower, gearbox and clutch, the steering and, on four-wheel-drive models, the front axle count; parts come from specialists and the club scene.
Sources: SpecCodex register, model data: Eicher 500er-Reihe, Traktorenlexikon: Eicher 535 S (Bauzeit 1980–1986) (Wikibooks), Eicher (Traktorenhersteller) (Wikipedia)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 50 hpcorrect |
| Rated speed | 2,000 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 2,944 cm³correct |
| Cooling | air-cooledcorrect |
Dimensions and weights
| Length | 3,240 mmcorrect |
|---|---|
| Width | 1,245 mmcorrect |
| Height | 1,255 mmcorrect |
| Wheelbase | 2,080 mmcorrect |
| Unladen weight | 2,010 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 16V / 4Rcorrect |
| Top speed | 25 km/hcorrect |
Where this model stands
Power-to-weight ratio: 18.3 kW/t (37 kW / 2 t)
Power class: Universal (40–100 hp)
Stronger than 34% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Eicher Eicher 550 P have?
The Eicher Eicher 550 P delivers 50 hp.
How much does the Eicher Eicher 550 P weigh?
The unladen weight is 2,010 kg.
What engine does the Eicher Eicher 550 P have?
3 cylinders, 2,944 cm³ displacement, Diesel.
How fast does the Eicher Eicher 550 P go?
Top speed is 25 km/h.
What are the dimensions of the Eicher Eicher 550 P?
3,240 mm × 1,245 mm × 1,255 mm.
When was the Eicher Eicher 550 P built?
Production years: 1980–1981.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 14 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
