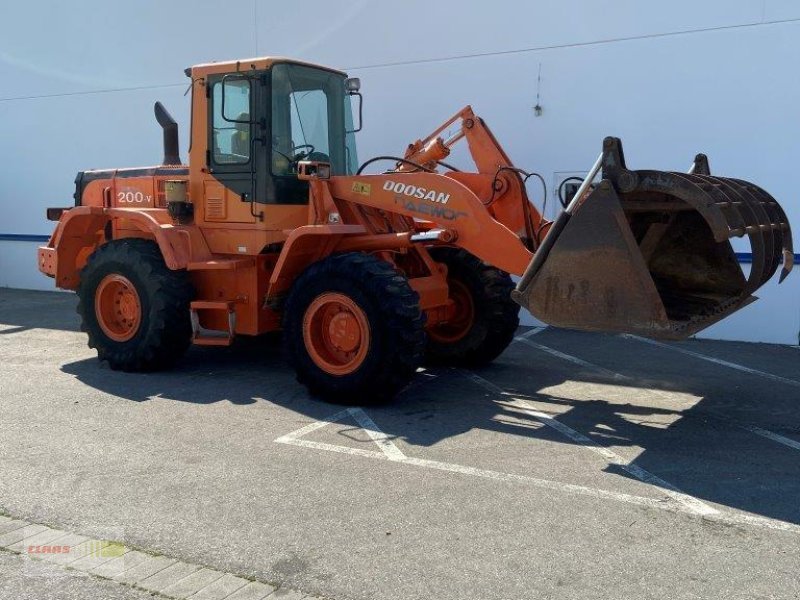

Doosan MEGA200-V

Series: Doosan Wheel Loader

Source: https://www.technikboerse.at/gebraucht/radlader-255/doosan-2

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Doosan Wheel Loader series from Doosan includes the MEGA200-V. The engine delivers 145 hp (102.9 kW), has 6 cylinders, with a displacement of 5,801 cm³. Torque is 558.6 Nm. Rated speed is 2,200 rpm. The unladen weight is 11,200 kg. The wheelbase measures 2,901.7 mm. Ground clearance is 451.1 mm. The tank holds 260.1 litres. The gearbox has 4 forward gears. There are also 3 reverse gears. Maximum torque is reached at 1,600 rpm. The pump delivers 175.3 l/min. The hydraulic tank holds 150.3 litres. The cooling system holds 31 litres. The electrical system runs on 24 V. The engine fitted is the DB58Ti. Tyre size: 17,5-25. The Doosan Wheel Loader series covers 25 models. Rated output within it ranges from 111.5 to 385.3 hp; the MEGA200-V sits at the bottom of that range with 145 hp. Its immediate neighbours are the DL200TC-5 below it with 144 hp and the DL220-5 above it with 162.2 hp. 314 Doosan models across 20 series are on record. The model is listed under Wheel loaders. 22 verified figures from 1 source are on file.

Technical data

Engine

Engine modelDB58Ticorrect
Power145 hp (102.9 kW)correct
Rated speed2,200 rpmcorrect
Torque558.6correct
Speed at max. torque1,600 rpmcorrect
Cylinders6correct
Displacement5,801 cm³correct
Aspirationturbocharged after cooledcorrect
Coolant capacity31 lcorrect

Dimensions and weights

Wheelbase2,901.7correct
Ground clearance451.1correct
Unladen weight11,200 kgcorrect

Drivetrain and chassis

Gearbox typeauto powershift transmission countershaftcorrect
Forward gears4correct
Reverse gears3correct
Tyre size17.5-25correct
System voltage24 Vcorrect

Working data

Pump flow175.3 l/mincorrect
Hydraulic oil capacity150.3 lcorrect
Fuel tank capacity260.1 lcorrect

Other data

Height3,261.4correct

Where this model stands

Power-to-weight ratio: 9.2 kW/t (103 kW / 11.2 t)

Stronger than 52% of the wheel loaders in the register — out of 1,253 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Doosan MEGA200-V have?

The Doosan MEGA200-V delivers 145 hp.

How much does the Doosan MEGA200-V weigh?

The unladen weight is 11,200 kg.

What engine does the Doosan MEGA200-V have?

6 cylinders, 5,801 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
