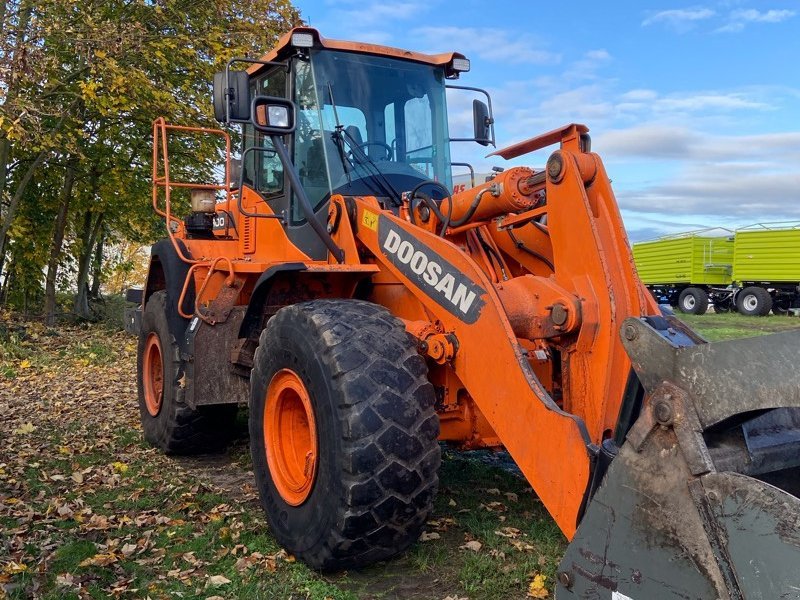

Doosan DL300

Series: Doosan Wheel Loader

Source: https://www.technikboerse.at/gebraucht/radlader-255/doosan-2

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the DL300, Doosan offers a model from the Doosan Wheel Loader series. The engine delivers 230.1 hp (161.8 kW), has 6 cylinders, with a displacement of 7,636.4 cm³. Torque is 1,029.1 Nm. Rated speed is 2,000 rpm. The unladen weight is 17,300 kg. The wheelbase measures 3,200.4 mm. Ground clearance is 472.4 mm. The tank holds 330.1 litres. The gearbox has 4 forward gears. There are also 3 reverse gears. Maximum torque is reached at 1,300 rpm. The pump delivers 280.1 l/min. The hydraulic tank holds 210.1 litres. The cooling system holds 50.3 litres. The electrical system runs on 24 V. The engine fitted is the DL08. Tyre size: 23,5-25-16PR-L3. The Doosan Wheel Loader series covers 25 models. Rated output within it ranges from 111.5 to 385.3 hp; the DL300 sits in the middle of that range with 230.1 hp. Its immediate neighbours are the DL280-5 below it with 174.4 hp and the DL300-5 above it with 274.8 hp. 314 Doosan models across 20 series are on record. The model is listed under Wheel loaders. 22 verified figures from 1 source are on file.

Technical data

Engine

Engine modelDL08correct
Power230.1 hp (161.8 kW)correct
Rated speed2,000 rpmcorrect
Torque1,029.1correct
Speed at max. torque1,300 rpmcorrect
Cylinders6correct
Displacement7,636.4 cm³correct
Aspirationturbo charged air to air intercoolercorrect
Coolant capacity50.3 lcorrect

Dimensions and weights

Wheelbase3,200.4correct
Ground clearance472.4correct
Unladen weight17,300 kgcorrect

Drivetrain and chassis

Gearbox typefull power shiftcorrect
Forward gears4correct
Reverse gears3correct
Tyre size23.5-25-16PR-L3correct
System voltage24 Vcorrect

Working data

Pump flow280.1 l/mincorrect
Hydraulic oil capacity210.1 lcorrect
Fuel tank capacity330.1 lcorrect

Other data

Height3,438.1correct

Where this model stands

Power-to-weight ratio: 9.4 kW/t (162 kW / 17.3 t)

Stronger than 77% of the wheel loaders in the register — out of 1,253 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Doosan DL300 have?

The Doosan DL300 delivers 230 hp.

How much does the Doosan DL300 weigh?

The unladen weight is 17,300 kg.

What engine does the Doosan DL300 have?

6 cylinders, 7,636 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
