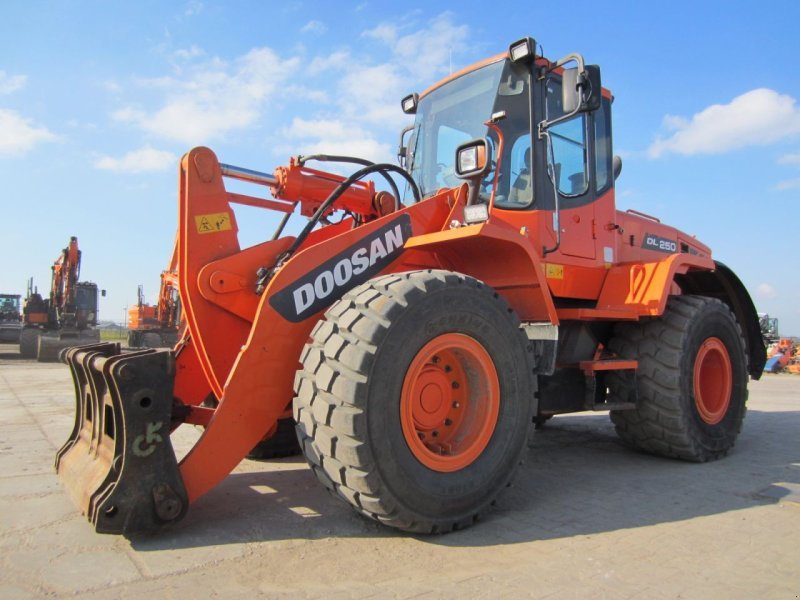

Doosan DL250TC-5

Series: Doosan Wheel Loader

Source: https://www.technikboerse.at/gebraucht/radlader-255/doosan-2

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The DL250TC-5 from Doosan is part of the Doosan Wheel Loader series. The engine delivers 174.4 hp (128.3 kW), has 6 cylinders, with a displacement of 5,901 cm³. The engine comes from Doosan. Rated speed is 2,100 rpm. The unladen weight is 14,329.9 kg. The wheelbase measures 3,020.6 mm. Ground clearance is 435.9 mm. The tank holds 222.2 litres. The gearbox has 4 forward gears. There are also 3 reverse gears. Maximum torque is reached at 1,400 rpm. The pump delivers 155.2 l/min. The hydraulic tank holds 120.4 litres. The cooling system holds 40.1 litres. The electrical system runs on 24 V. The engine fitted is the DL06. Tyre size: 20,5-R25 (L3). The Doosan Wheel Loader series covers 25 models. Rated output within it ranges from 111.5 to 385.3 hp; the DL250TC-5 sits in the lower part of that range with 174.4 hp. Its immediate neighbours are the M250-V below it with 172.4 hp and the DL300 above it with 230.1 hp. 314 Doosan models across 20 series are on record. The model is listed under Wheel loaders. 20 verified figures from 1 source are on file.

Technical data

Engine

Engine makeDoosancorrect
Engine modelDL06correct
Power174.4 hp (128.3 kW)correct
Rated speed2,100 rpmcorrect
Speed at max. torque1,400 rpmcorrect
Cylinders6correct
Displacement5,901 cm³correct
Coolant capacity40.1 lcorrect

Dimensions and weights

Length7,805.2correct
Wheelbase3,020.6correct
Ground clearance435.9correct
Unladen weight14,329.9 kgcorrect

Drivetrain and chassis

Forward gears4correct
Reverse gears3correct
Tyre size20.5-R25 (L3)correct
System voltage24 Vcorrect

Working data

Pump flow155.2 l/mincorrect
Hydraulic oil capacity120.4 lcorrect
Fuel tank capacity222.2 lcorrect

Where this model stands

Power-to-weight ratio: 9 kW/t (128 kW / 14.3 t)

Stronger than 66% of the wheel loaders in the register — out of 1,253 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Doosan DL250TC-5 have?

The Doosan DL250TC-5 delivers 174 hp.

How much does the Doosan DL250TC-5 weigh?

The unladen weight is 14,330 kg.

What engine does the Doosan DL250TC-5 have?

6 cylinders, 5,901 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
