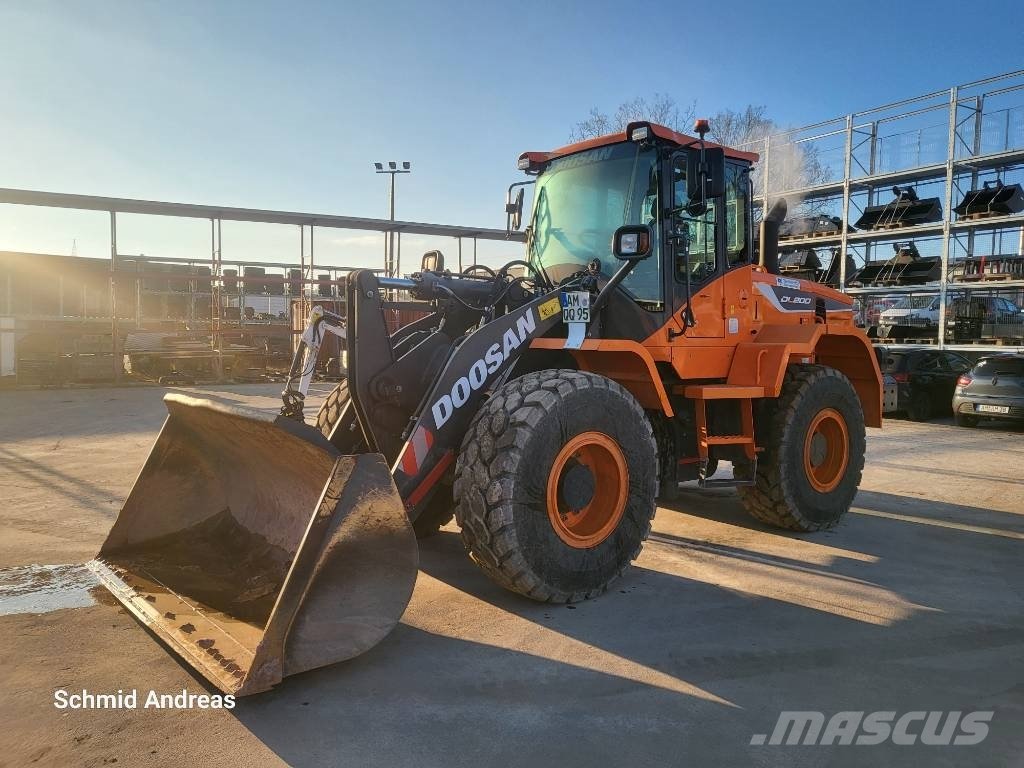

Doosan DL200TC-5

Series: Doosan Wheel Loader

Source: https://www.mascus.de/baumaschinen/radlader/doosan-dl-200-5/

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The DL200TC-5 from Doosan is part of the Doosan Wheel Loader series. The engine delivers 144 hp (105.9 kW), has 6 cylinders, with a displacement of 4,401.6 cm³. The engine comes from Perkins. Rated speed is 2,200 rpm. The unladen weight is 11,895 kg. The wheelbase measures 2,901.7 mm. Ground clearance is 442 mm. Maximum torque is reached at 1,400 rpm. Working pressure is 219.9 bar. The electrical system runs on 28 V. The engine fitted is the 1204F. Tyre size: 20,5-R25 (L3). The Doosan Wheel Loader series covers 25 models. Rated output within it ranges from 111.5 to 385.3 hp; the DL200TC-5 sits at the bottom of that range with 144 hp. Its immediate neighbours are the MEGA160-V below it with 111.5 hp and the DL200 above it with 145 hp. 314 Doosan models across 20 series are on record. The model is listed under Wheel loaders. 15 verified figures from 1 source are on file.

Technical data

Engine

Engine makePerkinscorrect
Engine model1204Fcorrect
Power144 hp (105.9 kW)correct
Rated speed2,200 rpmcorrect
Speed at max. torque1,400 rpmcorrect
Cylinders6correct
Displacement4,401.6 cm³correct

Dimensions and weights

Length7,315.2correct
Wheelbase2,901.7correct
Ground clearance442correct
Unladen weight11,895 kgcorrect

Drivetrain and chassis

Tyre size20.5-R25 (L3)correct
System voltage28 Vcorrect

Working data

Hydraulic pressure219.9correct

Where this model stands

Power-to-weight ratio: 8.9 kW/t (106 kW / 11.9 t)

Stronger than 54% of the wheel loaders in the register — out of 1,253 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Doosan DL200TC-5 have?

The Doosan DL200TC-5 delivers 144 hp.

How much does the Doosan DL200TC-5 weigh?

The unladen weight is 11,895 kg.

What engine does the Doosan DL200TC-5 have?

6 cylinders, 4,402 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 15 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
