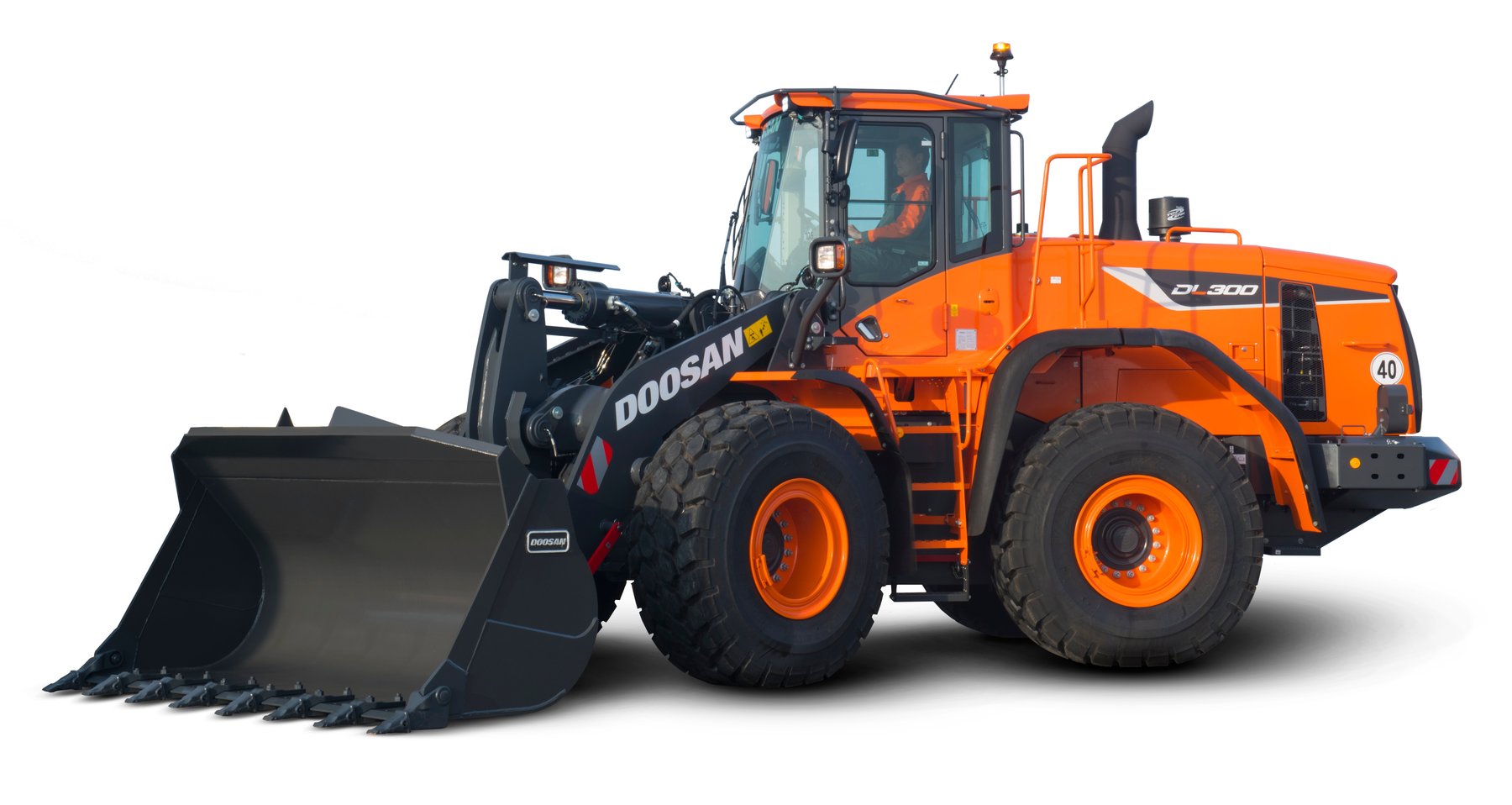

Doosan DL300-5

Series: Doosan Wheel Loader

Source: https://www.lectura-specs.com/en/model/construction-machiner

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Doosan DL300-5 is a model in the Doosan Wheel Loader series. The engine delivers 274.8 hp (202.1 kW), has 5 cylinders, with a displacement of 9,301.3 cm³. The engine comes from Scania. Rated speed is 1,800 rpm. The unladen weight is 18,980.1 kg. The wheelbase measures 3,200.4 mm. Ground clearance is 487.7 mm. Maximum torque is reached at 1,400 rpm. Working pressure is 250 bar. The electrical system runs on 28 V. The engine fitted is the DC09. The Doosan Wheel Loader series covers 25 models. Rated output within it ranges from 111.5 to 385.3 hp; the DL300-5 sits in the middle of that range with 274.8 hp. Its immediate neighbours are the DL300 below it with 230.1 hp and the DL400 above it with 314.3 hp. 314 Doosan models across 20 series are on record. The model is listed under Wheel loaders. 14 verified figures from 1 source are on file.

Technical data

Engine

Engine makeScaniacorrect
Engine modelDC09correct
Power274.8 hp (202.1 kW)correct
Rated speed1,800 rpmcorrect
Speed at max. torque1,400 rpmcorrect
Cylinders5correct
Displacement9,301.3 cm³correct

Dimensions and weights

Length8,107.7correct
Wheelbase3,200.4correct
Ground clearance487.7correct
Unladen weight18,980.1 kgcorrect

Drivetrain and chassis

System voltage28 Vcorrect

Working data

Hydraulic pressure250correct

Where this model stands

Power-to-weight ratio: 10.6 kW/t (202 kW / 19 t)

Stronger than 86% of the wheel loaders in the register — out of 1,253 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Doosan DL300-5 have?

The Doosan DL300-5 delivers 275 hp.

How much does the Doosan DL300-5 weigh?

The unladen weight is 18,980 kg.

What engine does the Doosan DL300-5 have?

5 cylinders, 9,301 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 14 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
