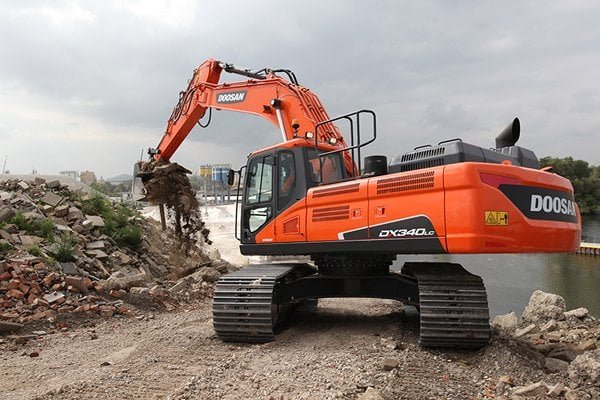

Doosan DX340LC

Series: Doosan Hydraulic Excavator

Source: https://www.lectura-specs.com/en/model/construction-machiner

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The DX340LC from Doosan is part of the Doosan Hydraulic Excavator series. The engine delivers 184.2 kW, has 6 cylinders, with a displacement of 7,636.4 cm³. Torque is 1,147 Nm. Rated speed is 1,750 rpm. The unladen weight is 34,100.2 kg. Ground clearance is 512.1 mm. The tank holds 550 litres. Maximum torque is reached at 1,300 rpm. The pump delivers 530.3 l/min. The hydraulic tank holds 460.3 litres. Working pressure is 324 bar. The cooling system holds 34.1 litres. The oil fill is 36.3 litres. The electrical system runs on 24 V. The engine fitted is the DL08. The Doosan Hydraulic Excavator series covers 29 models. Rated output within it ranges from 70.8 to 278.1 kW; the DX340LC sits in the middle of that range with 184.2 kW. Its immediate neighbours are the S300LCSLR below it with 146.9 kW and the DX300LC-5 above it with 198.4 kW. 314 Doosan models across 20 series are on record. The model is listed under Excavators & compaction. 17 verified figures from 1 source are on file.

Technical data

Engine

Engine modelDL08correct
Power184.2 kWcorrect
Rated speed1,750 rpmcorrect
Torque1,147correct
Speed at max. torque1,300 rpmcorrect
Cylinders6correct
Displacement7,636.4 cm³correct
Coolant capacity34.1 lcorrect
Engine oil capacity36.3 lcorrect

Dimensions and weights

Ground clearance512.1correct
Unladen weight34,100.2 kgcorrect

Drivetrain and chassis

System voltage24 Vcorrect

Working data

Pump flow530.3 l/mincorrect
Hydraulic oil capacity460.3 lcorrect
Hydraulic pressure324 barcorrect
Fuel tank capacity550 lcorrect

Other data

Cab height3,127.2correct

More machines with this engine (DL08, 7)

Where this model stands

Power-to-weight ratio: 5.4 kW/t (184 kW / 34.1 t)

Stronger than 78% of the excavators & compaction in the register — out of 1,666 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Doosan DX340LC have?

The Doosan DX340LC delivers 184 kW.

How much does the Doosan DX340LC weigh?

The unladen weight is 34,100 kg.

What engine does the Doosan DX340LC have?

6 cylinders, 7,636 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
