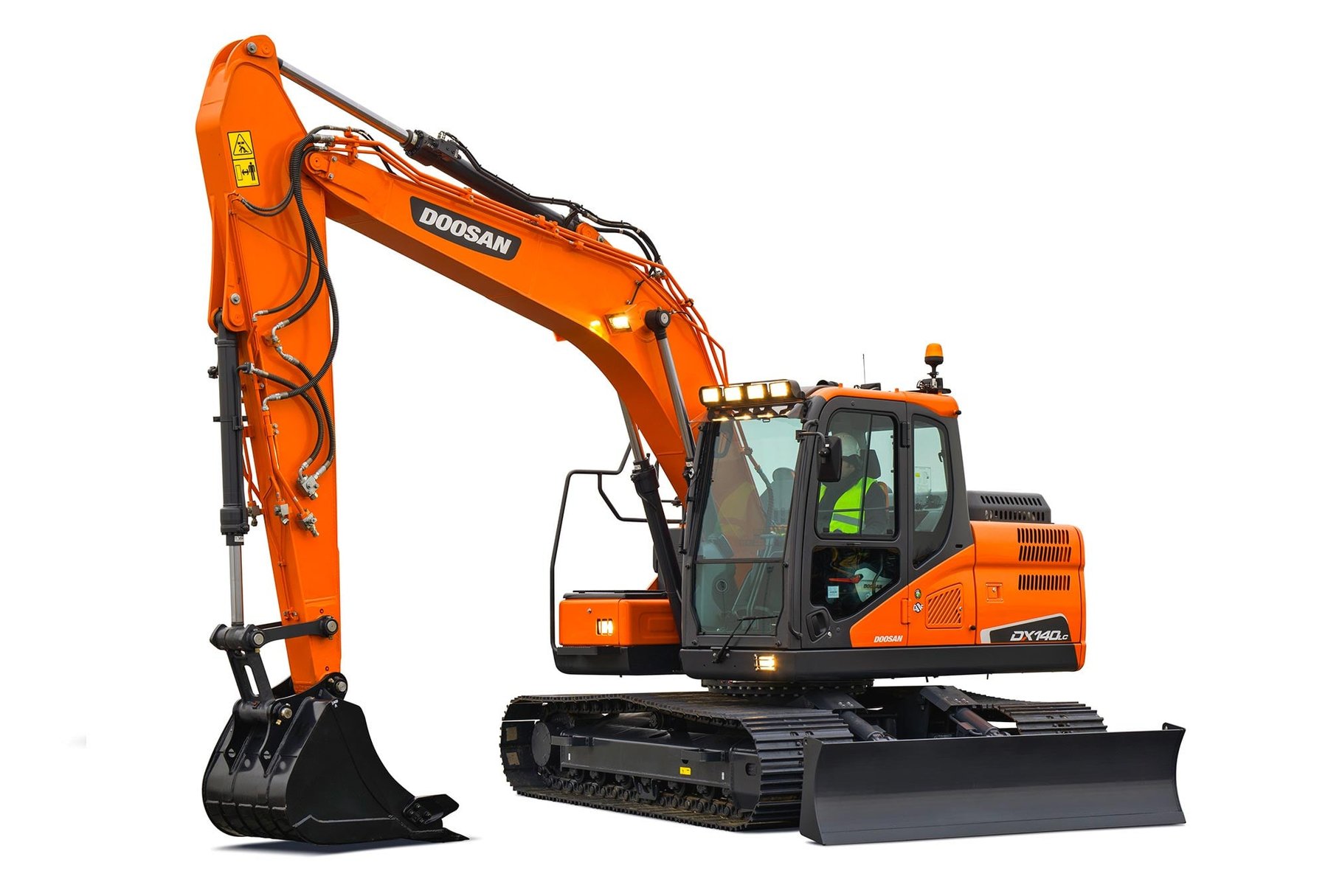

Doosan DX140LC
Series: Doosan Hydraulic Excavator
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Doosan DX — the number is the tonnage class, LC means the extended track
The "Doosan Hydraulic Excavator" bucket lists 29 models of the DX line, spanning 70 to 278 kW and 13.9 to nearly 53 tonnes of operating weight — from a mid-size tracked excavator to a large jobsite machine. The sample models DX140LC, DX225LC, DX300LC, DX350LC and DX420LC show the consistent naming pattern.
Read on 4 more paragraphs
At Doosan, the DX prefix is followed directly by a number that roughly reflects the machine's operating weight in tonnes — a DX225LC sits in the 22-to-23-tonne class. The LC suffix denotes an extended and widened crawler undercarriage, giving more footprint and thus stability during lifting work as well as better flotation on soft ground; models without the suffix run on the narrower standard gauge.
In practice that means two Doosan excavators with a similar number, one with LC and one without, differ mainly in undercarriage width rather than in displacement or engine power.
For a used excavator in this class, check the track rollers, chain tension and the bucket and arm bushings — the most common wear points under continuous jobsite use. A test run at full hydraulic load also shows whether the pump and valves still deliver full cylinder force.
In short: on the DX line, the number reveals the rough tonnage class and the LC suffix the undercarriage width, without needing to consult a spec sheet.
Sources: Kennwerte der Modelle Doosan Hydraulic Excavator, — Bedeutung der Buchstaben bei Baggermodellen (cm-sv.com), — Doosan DX225LC Hydraulic Excavator (RitchieSpecs)
Technical data
Engine
| Engine model | DL06correct |
|---|---|
| Power | 70.8 kWcorrect |
| Rated speed | 1,850 rpmcorrect |
| Torque | 436correct |
| Speed at max. torque | 1,400 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 5,883 cm³correct |
| Aspiration | turbocharged with air to air intercoolercorrect |
| Coolant capacity | 20.1 lcorrect |
| Engine oil capacity | 25.4 lcorrect |
Dimensions and weights
| Ground clearance | 411.5correct |
|---|---|
| Unladen weight | 13,999.7 kgcorrect |
Working data
| Pump flow | 228.3 l/mincorrect |
|---|---|
| Hydraulic oil capacity | 148 lcorrect |
| Hydraulic pressure | 324 barcorrect |
| Fuel tank capacity | 267.3 lcorrect |
Other data
| Cab height | 2,773.7correct |
|---|---|
| System voltage | 24 Vcorrect |
More machines with this engine (Doosan DL06, 21)
Where this model stands
Power-to-weight ratio: 5.1 kW/t (71 kW / 14 t)
Stronger than 26% of the excavators & compaction in the register — out of 1,666 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Doosan DX140LC have?
The Doosan DX140LC delivers 70.8 kW.
How much does the Doosan DX140LC weigh?
The unladen weight is 14,000 kg.
What engine does the Doosan DX140LC have?
6 cylinders, 5,883 cm³ displacement.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 18 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
