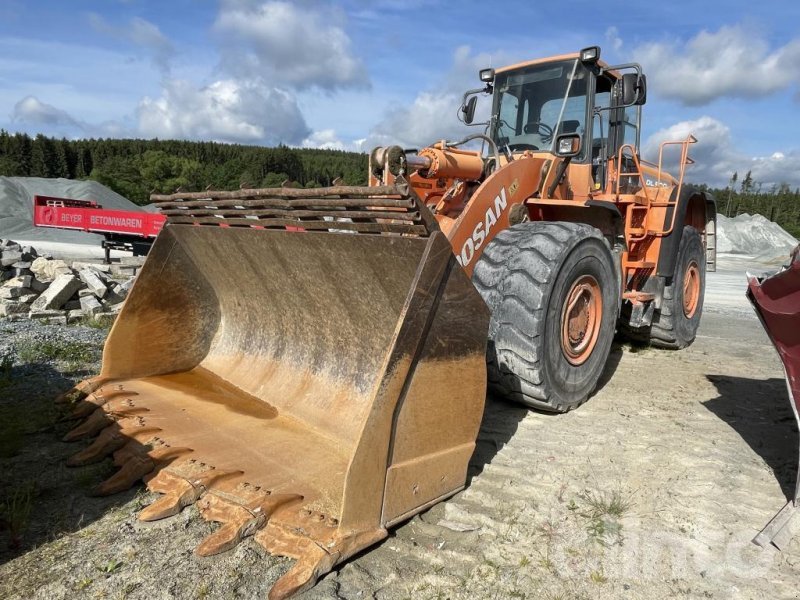

Doosan DL500

Series: Doosan Wheel Loader

Source: https://www.technikboerse.com/gebraucht/radlader-255

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The DL500 from Doosan is part of the Doosan Wheel Loader series. The engine delivers 365 hp (249.8 kW), has 6 cylinders, with a displacement of 10,799.1 cm³. Torque is 1,677 Nm. Rated speed is 1,900 rpm. The wheelbase measures 3,602.7 mm. Ground clearance is 512.1 mm. The tank holds 476.2 litres. The gearbox has 4 forward gears. There are also 3 reverse gears. Maximum torque is reached at 1,400 rpm. The pump delivers 464.1 l/min. The hydraulic tank holds 236.2 litres. The cooling system holds 60.2 litres. The electrical system runs on 24 V. The engine fitted is the QSM11. Tyre size: 29,5R25. The Doosan Wheel Loader series covers 25 models. Rated output within it ranges from 111.5 to 385.3 hp; the DL500 sits at the top of that range with 365 hp. Its immediate neighbours are the DL450-5 below it with 349.5 hp and the DL550-5 above it with 385.3 hp. 314 Doosan models across 20 series are on record. The model is listed under Wheel loaders. 21 verified figures from 1 source are on file.

Technical data

Engine

Engine modelQSM11correct
Power365 hp (249.8 kW)correct
Rated speed1,900 rpmcorrect
Torque1,677correct
Speed at max. torque1,400 rpmcorrect
Cylinders6correct
Displacement10,799.1 cm³correct
Aspirationturbocharged air to air intercoolercorrect
Coolant capacity60.2 lcorrect

Dimensions and weights

Wheelbase3,602.7correct
Ground clearance512.1correct

Drivetrain and chassis

Gearbox typefull power shiftcorrect
Forward gears4correct
Reverse gears3correct
Tyre size29.5R25correct
System voltage24 Vcorrect

Working data

Pump flow464.1 l/mincorrect
Hydraulic oil capacity236.2 lcorrect
Fuel tank capacity476.2 lcorrect

Other data

Height3,822.2correct

Frequently asked questions

How much power does the Doosan DL500 have?

The Doosan DL500 delivers 365 hp.

What engine does the Doosan DL500 have?

6 cylinders, 10,799 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 21 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
