Deutz DX 90
Built: 1979-1979 · Series: DX
More machines from model year 1979
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

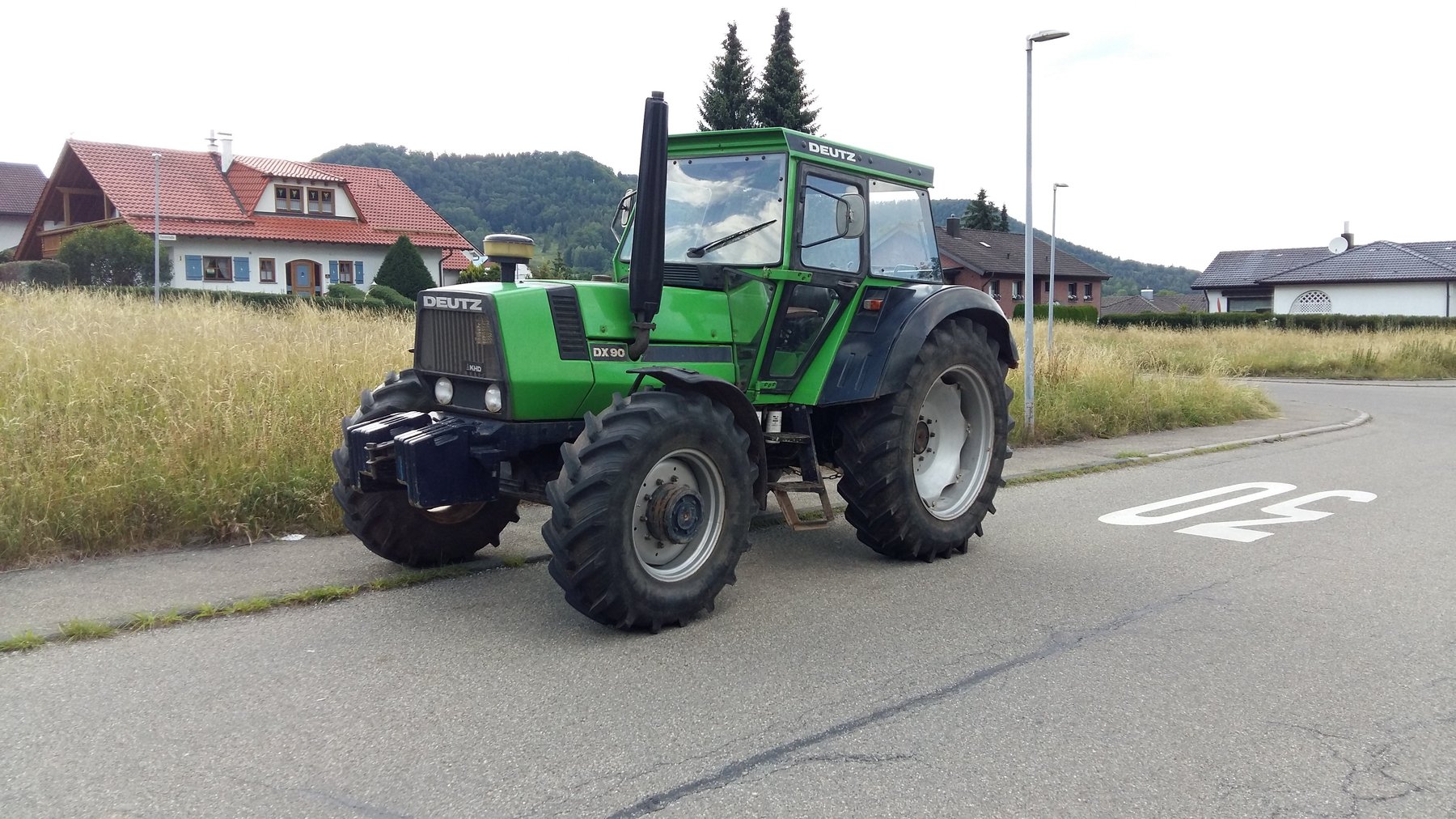

The Deutz DX 90 is a tractor from the DX series, built in 1979. 65 kW is what the five-cylinder engine gets out of 4.7 litres.
Dimensions are 4.32 m by 2.44 m. Empty, it weighs 4,470 kg.
Within the range, rated power spans from 21.2 to 75 kW; with 65 kW, the DX 90 sits in the mid-field. Directly alongside are the DX 36 V with 21.2 kW below and the Dx 110 with 75 kW above.
Deutz DX – Cologne-built tractors of the 1980s: air-cooled diesels from 21 to 75 kW, two to six cylinders depending on size
Deutz built the DX series in the 1980s at its Cologne plant as a broad line-up from compact tractor to large field tractor; the two-digit number after DX approximates the power class in horsepower, so the DX 90 and Dx 110 mark the upper end and the DX 36 V the lower power step. A hallmark of Deutz was doing without a water radiator in favour of air-cooled diesel engines, also used throughout the DX series. With two- to six-cylinder engines, the models covered a wide power range.
Read on 3 more paragraphs
The register lists here 6 versions with 21.2 to 75 kW (29 to 102 hp) from two- to six-cylinders of 1,884 to 5,652 cm³, unladen weights of 1,410 to 5,835 kg at gross vehicle weights of 6,000 to 6,900 kg, lengths of 2,870 to 4,600 mm, widths of 1,110 to 2,480 mm and heights of 1,955 to 2,720 mm.
In the 1980s the DX series covered practically the entire market spectrum of West German agriculture, from vineyard tractor to large field tractor, and competed with Fendt, MAN and the foreign brands Ford and Massey Ferguson; the air-cooled engines were known for frost resistance and lower maintenance demands.
When buying used, what counts on the air-cooled Deutz engines is the condition of the fan and cooling fins, the tightness of the hydraulics, rust on wings and cab floor, and wear on the clutch and gearbox; spare parts today run through the Deutz-Fahr dealer network and specialist Deutz parts dealers.
Sources: Kennwerte der Modelle Deutz DX, Deutz-Fahr (Hersteller)
Technical data
Engine
| Power | 88 hp (65 kW)correct |
|---|---|
| Rated speed | 2,300 rpmcorrect |
| Torque | 300 Nmcorrect |
| Cylinders | 5correct |
| Displacement | 4,710 cm³correct |
Dimensions and weights
| Length | 4,320 mmcorrect |
|---|---|
| Width | 2,440 mmcorrect |
| Height | 2,600 mmcorrect |
| Unladen weight | 4,470 kgcorrect |
| Gross vehicle weight | 6,000 kgcorrect |
Drivetrain and chassis
| Gearbox | 12V/4R or 15V/5Rcorrect |
|---|
Working data
| Fuel tank capacity | 120 lcorrect |
|---|
Other data
| Linkage category | Cat IIcorrect |
|---|---|
| PTO speed | 540 rpmcorrect |
Where this model stands
Power-to-weight ratio: 14.5 kW/t (65 kW / 4.5 t)
Power class: Universal (40–100 hp)
Stronger than 60% of the tractors in the register — out of 15,659 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Deutz DX 90 have?
The Deutz DX 90 delivers 88 hp.
How much does the Deutz DX 90 weigh?
The unladen weight is 4,470 kg.
What is the gross vehicle weight of the Deutz DX 90?
6,000 kg.
What engine does the Deutz DX 90 have?
5 cylinders, 4,710 cm³ displacement.
What are the dimensions of the Deutz DX 90?
4,320 mm × 2,440 mm × 2,600 mm.
When was the Deutz DX 90 built?
Production years: 1979.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 16 individual figures for this model. They come from 3 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
