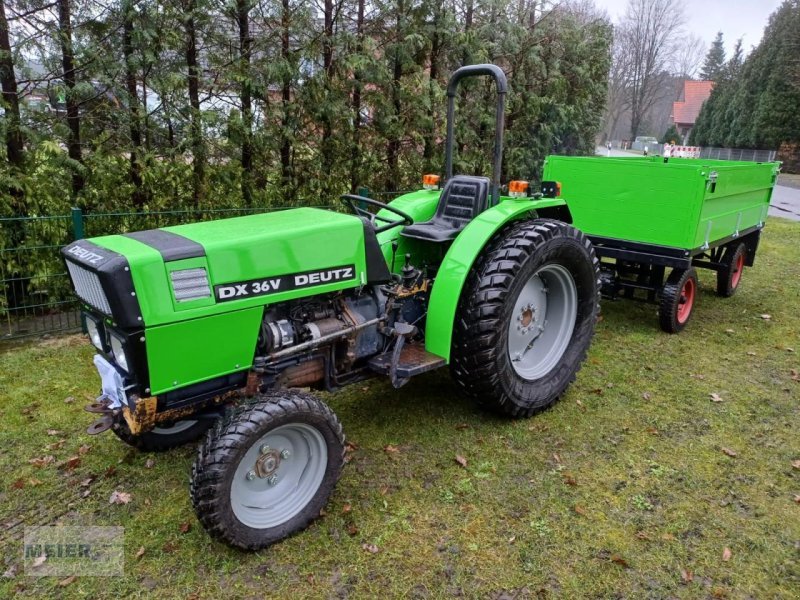

Deutz DX 36 V
Built: 1978–1982 · Series: DX
More machines from model year 1978
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Deutz DX – Cologne-built tractors of the 1980s: air-cooled diesels from 21 to 75 kW, two to six cylinders depending on size
Deutz built the DX series in the 1980s at its Cologne plant as a broad line-up from compact tractor to large field tractor; the two-digit number after DX approximates the power class in horsepower, so the DX 90 and Dx 110 mark the upper end and the DX 36 V the lower power step. A hallmark of Deutz was doing without a water radiator in favour of air-cooled diesel engines, also used throughout the DX series. With two- to six-cylinder engines, the models covered a wide power range.
Read on 3 more paragraphs
The register lists here 6 versions with 21.2 to 75 kW (29 to 102 hp) from two- to six-cylinders of 1,884 to 5,652 cm³, unladen weights of 1,410 to 5,835 kg at gross vehicle weights of 6,000 to 6,900 kg, lengths of 2,870 to 4,600 mm, widths of 1,110 to 2,480 mm and heights of 1,955 to 2,720 mm.
In the 1980s the DX series covered practically the entire market spectrum of West German agriculture, from vineyard tractor to large field tractor, and competed with Fendt, MAN and the foreign brands Ford and Massey Ferguson; the air-cooled engines were known for frost resistance and lower maintenance demands.
When buying used, what counts on the air-cooled Deutz engines is the condition of the fan and cooling fins, the tightness of the hydraulics, rust on wings and cab floor, and wear on the clutch and gearbox; spare parts today run through the Deutz-Fahr dealer network and specialist Deutz parts dealers.
Sources: SpecCodex register, model data: Deutz DX, Deutz-Fahr (manufacturer)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 29 hp (21.2 kW)correct |
| Rated speed | 2,300 rpmcorrect |
| Torque | 101 Nmcorrect |
| Speed at max. torque | 1,904 rpmcorrect |
| Cylinders | 2correct |
| Displacement | 1,884 cm³correct |
| Bore | 100 mmcorrect |
| Stroke | 120 mmcorrect |
| Injection pressure | 175 barcorrect |
| Cooling | air-cooledcorrect |
Dimensions and weights
| Length | 2,870 mmcorrect |
|---|---|
| Width | 1,110 mmcorrect |
| Height | 1,955 mmcorrect |
| Wheelbase | 1,705 mmcorrect |
| Ground clearance | 350 mmcorrect |
| Unladen weight | 1,410 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 9V/3Rcorrect |
| Forward gears | 9correct |
| Reverse gears | 3correct |
| Front tyres | 5.00-15 ASF (A: 6.00-16)correct |
| Rear tyres | 11.2-24 AScorrect |
| Top speed | 20 km/hcorrect |
Working data
| Fuel tank capacity | 42 lcorrect |
|---|
Other data
| Linkage category | Cat Icorrect |
|---|
Where this model stands
Power-to-weight ratio: 15 kW/t (21 kW / 1.4 t)
Power class: Compact (< 40 hp)
Stronger than 16% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Deutz DX 36 V have?
The Deutz DX 36 V delivers 29 hp.
How much does the Deutz DX 36 V weigh?
The unladen weight is 1,410 kg.
What engine does the Deutz DX 36 V have?
2 cylinders, 1,884 cm³ displacement, Diesel.
How fast does the Deutz DX 36 V go?
Top speed is 20 km/h.
What are the dimensions of the Deutz DX 36 V?
2,870 mm × 1,110 mm × 1,955 mm.
When was the Deutz DX 36 V built?
Production years: 1978–1982.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
