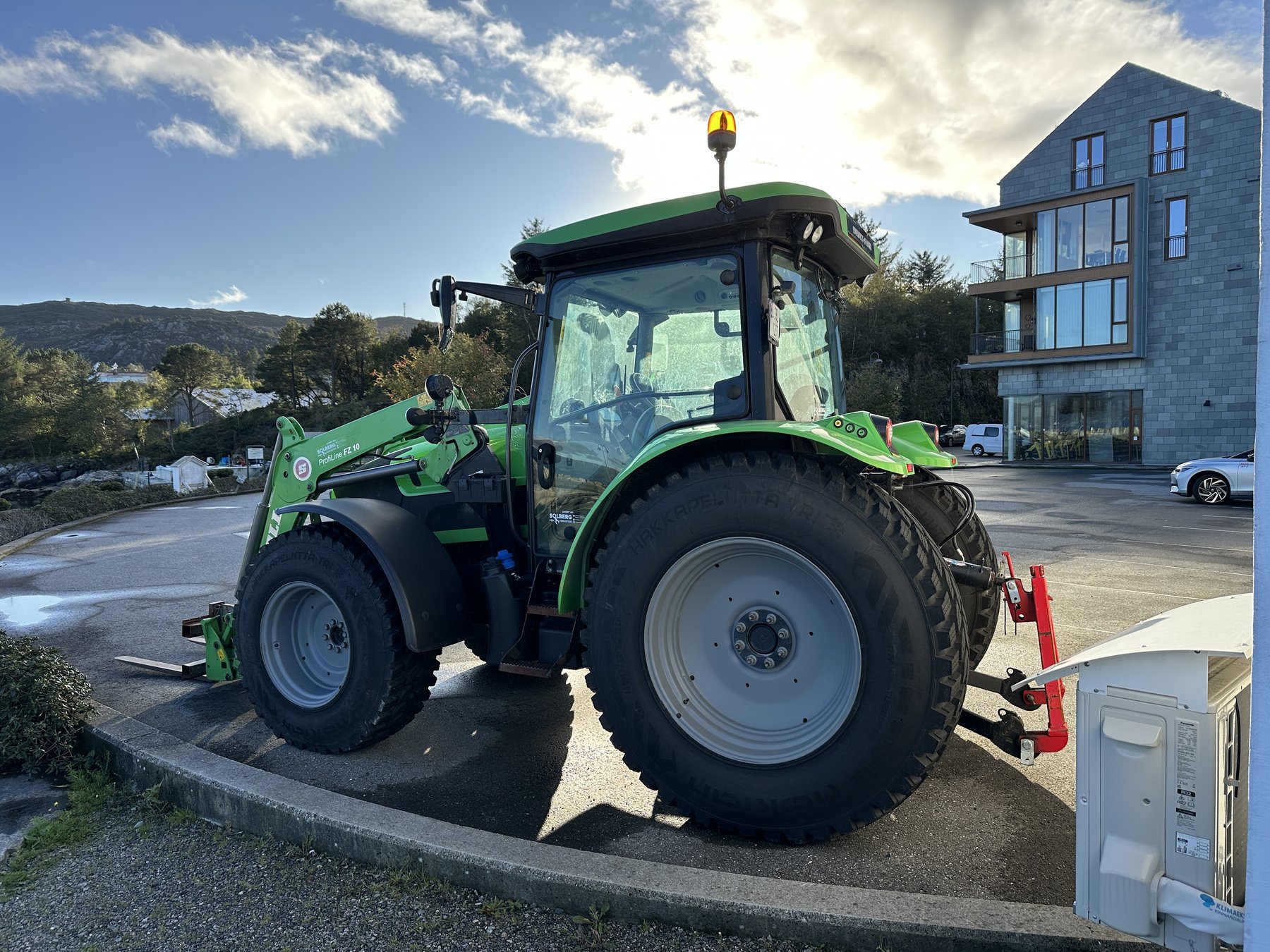

Deutz-Fahr 4.56
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The Deutz‑Fahr 4.56 is part of the tractor group and features a four‑cylinder engine with a displacement of 4,086 cm³. It was built in an unspecified period and offers a gearbox of 15 V/5 R or 18 V/6 R. Dimensions are 4,032 mm in length, 2,063 mm in width and 2,640 mm in height, with a wheelbase of 2,441 mm. The curb weight is 3,780 kg and the fuel tank holds 132 l. A rated speed of 2,300 U/min delivers a torque of 299 Nm, while the drawbar speed ranges from 540/1000 U/min. The lifting category is Cat II.
A rated speed of 2,300 U/min combined with 299 Nm of torque provides stable pulling power for moderate field loads. The relatively high curb weight of 3,780 kg results in favorable ground pressure, beneficial on soft soils. The large 132 l tank reduces refuelling stops during extended operations. With 15‑ or 18‑speed gearboxes, operators can select appropriate travel speeds for various field tasks, and the drawbar speed range of 540/1000 U/min allows precise control of attached implements.
The 4.56 is suited for typical field work such as plowing, seeding and transporting harvested material. Its combination of displacement, torque and gearbox options makes it appropriate for jobs that require a balanced range of power and lifting capability.
Deutz-Fahr – other models: the collective page of tractors outside the named ranges, from the MK3-generation classics through the 4 and 5 series to models with KEYLINE and TTV specification
This page gathers the Deutz-Fahr tractors the register could not assign to a named range – from older model years such as the 100 to 260 MK3 range through the four-cylinder 4 series (4.5, 4.56, 4.85, 4006) to the broad mid-range 5 series with types from 5060 to 5120. Deutz, founded in 1864 by Nikolaus Otto in Cologne as an engine works, merged its tractor business with that of the Fahr machinery works of Gottmadingen in 1968 to form Deutz-Fahr; since 1995 the brand has belonged to the Italian SAME-Deutz-Fahr group (SDF), which builds the tractors in Lauingen on the Danube in Bavaria. In the 5 series the type designation clearly tracks the power: the 5090 has about 90 hp, the 5105 about 105 hp, the 5115 about 115 hp; the suffixes KEYLINE, ECOLINE and TTV denote the equipment level and stepless transmission, D and DT four-wheel drive.
Read on 3 more paragraphs
The register lists here 213 versions with 35 to 211.1 kW (47 to 268 hp) from three- to six-cylinders of 1,758 to 7,146 cm³, unladen weights from 2,800 to 10,725 kg, gross weights from 4,500 to 16,000 kg, lengths from 2,980 to 5,820 mm, widths from 2,008 to 2,944 mm and heights from 2,020 to 3,225 mm.
Deutz-Fahr is one of Europe's longest-established tractor brands and a fixture in the mid and upper power segment in Germany, Italy and much of southern Europe; the brand's distinctive green paint and cab design have shaped its image for decades.
On used tractors, engine condition and rust on the bodywork count on the older MK3 and 4-series models, on the 5 series the transmission (mechanical, KEYLINE or stepless TTV), hydraulics and electronics, and on the DF and G variants the condition of the four-wheel-drive clutch; parts run through the SDF network and in part through Same and Lamborghini workshops.
Sources: SpecCodex register, model data: Deutz-Fahr (weitere Modelle), Deutz-Fahr (SDF, Hersteller)
Technical data
Engine
| Rated speed | 2,300 rpmcorrect |
|---|---|
| Torque | 299 Nmcorrect |
| Cylinders | 4correct |
| Displacement | 4,086 cm³correct |
Dimensions and weights
| Length | 4,032 mmcorrect |
|---|---|
| Width | 2,063 mmcorrect |
| Height | 2,640 mmcorrect |
| Wheelbase | 2,441 mmcorrect |
| Unladen weight | 3,780 kgcorrect |
Drivetrain and chassis
| Gearbox | 15V/5R or 18V/6Rcorrect |
|---|
Working data
| Fuel tank capacity | 132 lcorrect |
|---|
Other data
| Linkage category | Cat IIcorrect |
|---|---|
| PTO speed | 540/1000 rpmcorrect |
Frequently asked questions
How much does the Deutz-Fahr 4.56 weigh?
The unladen weight is 3,780 kg.
What engine does the Deutz-Fahr 4.56 have?
4 cylinders, 4,086 cm³ displacement.
What are the dimensions of the Deutz-Fahr 4.56?
4,032 mm × 2,063 mm × 2,640 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
