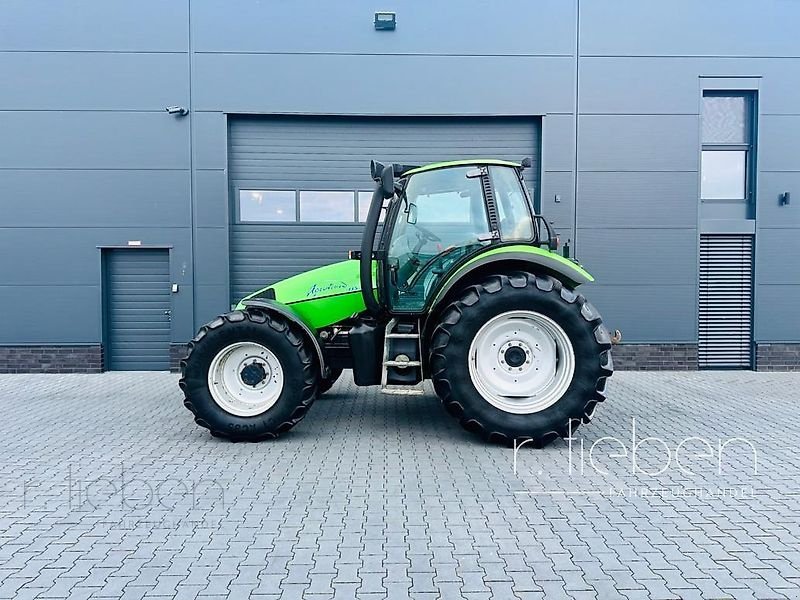

Deutz-Fahr 135
Series: Other models
The Deutz‑Fahr tractor model 135 belongs to the tractor group of the German manufacturer Deutz‑Fahr. It is part of a series that cannot be clearly assigned to a named line, and it is equipped with a power output of 135 hp (99.4 kW). The engine has six cylinders with a displacement of 7 146 cm³ and reaches its rated speed at 2 300 rpm. The machine measures 4 680 mm in length, 2 130 mm in width and 2 955 mm in height, with a wheelbase of 2 767 mm.
A maximum torque of 508 Nm provides sufficient pulling force for heavy field tasks. The curb weight of 5 360 kg results in moderate soil pressure, allowing operation on various ground conditions. The transmission is available with either 20 forward and 20 reverse gears or 24 forward and 24 reverse gears, enabling fine adjustment to different working situations. The fuel tank capacity of 270 l permits long operating periods without frequent refuelling, and the pump speed of 540/1000 rpm meets the Cat III lifting category for heavy lifts.
Model 135 is suited for tasks that require medium to high pulling power, such as towing large implements, working extensive field areas and transporting heavy loads. Its robust construction and extensive gear range make it applicable in both arable farming and livestock operations. The combination of power, torque and tank capacity makes it a reliable machine for demanding agricultural work.
Deutz-Fahr – other models: the collective page of tractors outside the named ranges, from the MK3-generation classics through the 4 and 5 series to models with KEYLINE and TTV specification
This page gathers the Deutz-Fahr tractors the register could not assign to a named range – from older model years such as the 100 to 260 MK3 range through the four-cylinder 4 series (4.5, 4.56, 4.85, 4006) to the broad mid-range 5 series with types from 5060 to 5120. Deutz, founded in 1864 by Nikolaus Otto in Cologne as an engine works, merged its tractor business with that of the Fahr machinery works of Gottmadingen in 1968 to form Deutz-Fahr; since 1995 the brand has belonged to the Italian SAME-Deutz-Fahr group (SDF), which builds the tractors in Lauingen on the Danube in Bavaria. In the 5 series the type designation clearly tracks the power: the 5090 has about 90 hp, the 5105 about 105 hp, the 5115 about 115 hp; the suffixes KEYLINE, ECOLINE and TTV denote the equipment level and stepless transmission, D and DT four-wheel drive.
Read on 3 more paragraphs
The register lists here 213 versions with 35 to 211.1 kW (47 to 268 hp) from three- to six-cylinders of 1,758 to 7,146 cm³, unladen weights from 2,800 to 10,725 kg, gross weights from 4,500 to 16,000 kg, lengths from 2,980 to 5,820 mm, widths from 2,008 to 2,944 mm and heights from 2,020 to 3,225 mm.
Deutz-Fahr is one of Europe's longest-established tractor brands and a fixture in the mid and upper power segment in Germany, Italy and much of southern Europe; the brand's distinctive green paint and cab design have shaped its image for decades.
On used tractors, engine condition and rust on the bodywork count on the older MK3 and 4-series models, on the 5 series the transmission (mechanical, KEYLINE or stepless TTV), hydraulics and electronics, and on the DF and G variants the condition of the four-wheel-drive clutch; parts run through the SDF network and in part through Same and Lamborghini workshops.
Sources: SpecCodex register, model data: Deutz-Fahr (weitere Modelle), Deutz-Fahr (SDF, Hersteller)
Technical data
Engine
| Power | 135 hp (99.4 kW)correct |
|---|---|
| Rated speed | 2,300 rpmcorrect |
| Torque | 508 Nmcorrect |
| Cylinders | 6correct |
| Displacement | 7,146 cm³correct |
Dimensions and weights
| Length | 4,680 mmcorrect |
|---|---|
| Width | 2,130 mmcorrect |
| Height | 2,955 mmcorrect |
| Wheelbase | 2,767 mmcorrect |
| Unladen weight | 5,360 kgcorrect |
Drivetrain and chassis
| Gearbox | 20V/20R or 24V/24Rcorrect |
|---|
Working data
| Fuel tank capacity | 270 lcorrect |
|---|
Other data
| Linkage category | Cat IIIcorrect |
|---|---|
| PTO speed | 540/1000 rpmcorrect |
Where this model stands
Power-to-weight ratio: 18.5 kW/t (99 kW / 5.4 t)
Power class: Large (100–180 hp)
Stronger than 79% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Deutz-Fahr 135 have?
The Deutz-Fahr 135 delivers 135 hp.
How much does the Deutz-Fahr 135 weigh?
The unladen weight is 5,360 kg.
What engine does the Deutz-Fahr 135 have?
6 cylinders, 7,146 cm³ displacement.
What are the dimensions of the Deutz-Fahr 135?
4,680 mm × 2,130 mm × 2,955 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
