Deutz-Fahr 175
Series: Other models

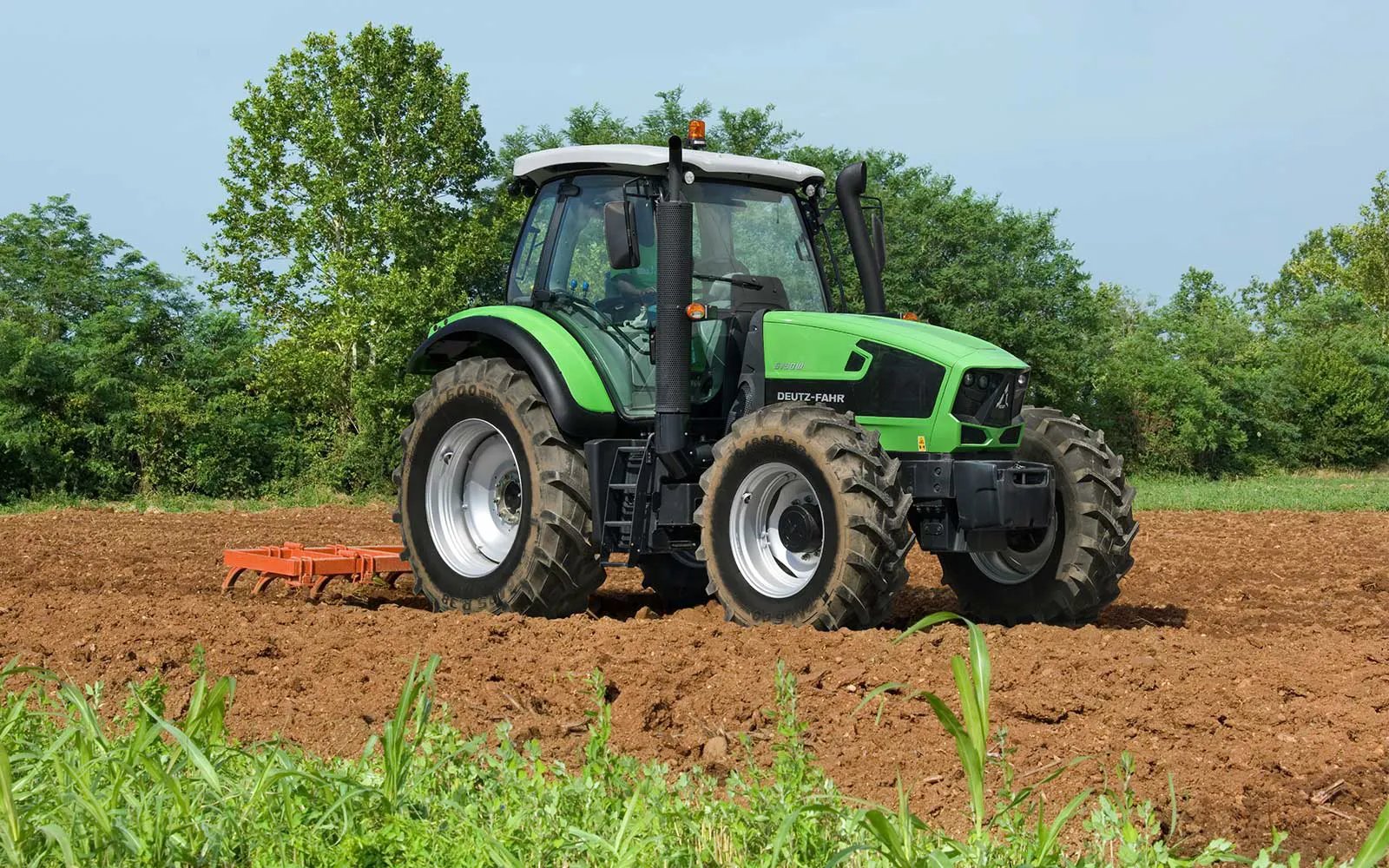

The Deutz‑Fahr tractor model 175 belongs to the tractor group and is produced by the German manufacturer Deutz‑Fahr. It is equipped with a power output of 175 hp (128.8 kW) and features a six‑cylinder engine with a displacement of 7 146 cm³ and a rated speed of 2 350 rpm. The dimensions are 4 700 mm in length, 2 480 mm in width and 3 060 mm in height, with a wheelbase of 3 030 mm. The curb weight is 6 900 kg, the transmission offers 18 forward and 15 reverse gears, and the fuel tank capacity is 380 l.
The technical figures of the 175 model define its practical capabilities. A power of 175 hp enables the pulling of heavy implements and handling demanding field tasks, while the maximum torque of 655 Nm at low speeds provides strong pulling force. The relatively high curb weight of 6 900 kg reduces ground pressure, which is advantageous on wet soils. The large 380 l tank allows long work periods without frequent refuelling, and the 18‑/15‑gear gearbox gives fine speed selection for various operating conditions. The drawbar shaft speed of 540 E/1000 rpm is relevant for driving attached equipment.
The 175 tractor is typically suited for work in the middle to upper‑middle class range. Because of its power and weight, it is used where high traction and stable driving are required, such as for ploughing, mowing extensive areas or transporting heavy loads on the farm. The combination of strong torque, extensive gearbox and large fuel capacity enables long uninterrupted work cycles on both firm and soft ground.
Deutz-Fahr – other models: the collective page of tractors outside the named ranges, from the MK3-generation classics through the 4 and 5 series to models with KEYLINE and TTV specification
This page gathers the Deutz-Fahr tractors the register could not assign to a named range – from older model years such as the 100 to 260 MK3 range through the four-cylinder 4 series (4.5, 4.56, 4.85, 4006) to the broad mid-range 5 series with types from 5060 to 5120. Deutz, founded in 1864 by Nikolaus Otto in Cologne as an engine works, merged its tractor business with that of the Fahr machinery works of Gottmadingen in 1968 to form Deutz-Fahr; since 1995 the brand has belonged to the Italian SAME-Deutz-Fahr group (SDF), which builds the tractors in Lauingen on the Danube in Bavaria. In the 5 series the type designation clearly tracks the power: the 5090 has about 90 hp, the 5105 about 105 hp, the 5115 about 115 hp; the suffixes KEYLINE, ECOLINE and TTV denote the equipment level and stepless transmission, D and DT four-wheel drive.
Read on 3 more paragraphs
The register lists here 213 versions with 35 to 211.1 kW (47 to 268 hp) from three- to six-cylinders of 1,758 to 7,146 cm³, unladen weights from 2,800 to 10,725 kg, gross weights from 4,500 to 16,000 kg, lengths from 2,980 to 5,820 mm, widths from 2,008 to 2,944 mm and heights from 2,020 to 3,225 mm.
Deutz-Fahr is one of Europe's longest-established tractor brands and a fixture in the mid and upper power segment in Germany, Italy and much of southern Europe; the brand's distinctive green paint and cab design have shaped its image for decades.
On used tractors, engine condition and rust on the bodywork count on the older MK3 and 4-series models, on the 5 series the transmission (mechanical, KEYLINE or stepless TTV), hydraulics and electronics, and on the DF and G variants the condition of the four-wheel-drive clutch; parts run through the SDF network and in part through Same and Lamborghini workshops.
Sources: SpecCodex register, model data: Deutz-Fahr (weitere Modelle), Deutz-Fahr (SDF, Hersteller)
Technical data
Engine
| Power | 175 hp (128.8 kW)correct |
|---|---|
| Rated speed | 2,350 rpmcorrect |
| Torque | 655 Nmcorrect |
| Cylinders | 6correct |
| Displacement | 7,146 cm³correct |
Dimensions and weights
| Length | 4,700 mmcorrect |
|---|---|
| Width | 2,480 mmcorrect |
| Height | 3,060 mmcorrect |
| Wheelbase | 3,030 mmcorrect |
| Unladen weight | 6,900 kgcorrect |
Drivetrain and chassis
| Gearbox | 18V/15Rcorrect |
|---|
Working data
| Fuel tank capacity | 380 lcorrect |
|---|
Other data
| Linkage category | Cat IIIcorrect |
|---|---|
| PTO speed | 540E/1000 rpmcorrect |
Where this model stands
Power-to-weight ratio: 18.7 kW/t (129 kW / 6.9 t)
Power class: Large (100–180 hp)
Stronger than 88% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Deutz-Fahr 175 have?
The Deutz-Fahr 175 delivers 175 hp.
How much does the Deutz-Fahr 175 weigh?
The unladen weight is 6,900 kg.
What engine does the Deutz-Fahr 175 have?
6 cylinders, 7,146 cm³ displacement.
What are the dimensions of the Deutz-Fahr 175?
4,700 mm × 2,480 mm × 3,060 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
