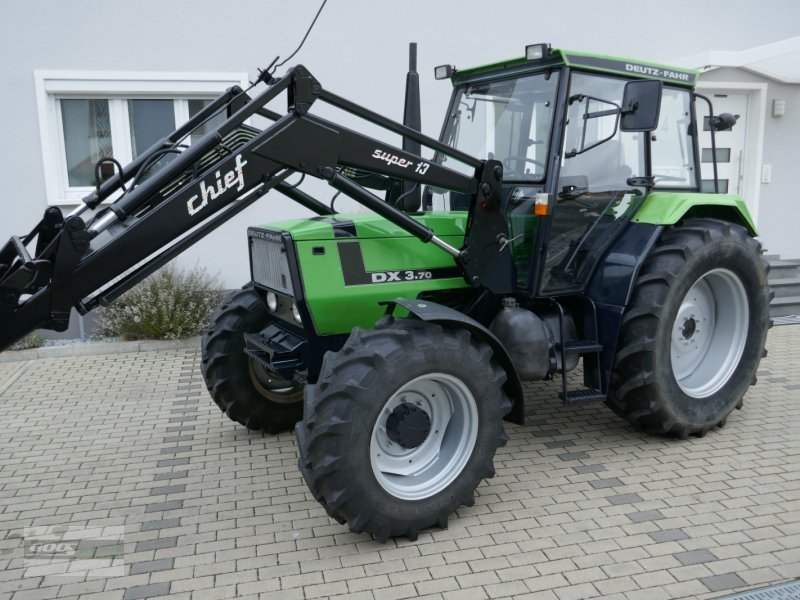

Deutz-Fahr DX 3.70
Built: 1984–1989 · Series: DX-3-Reihe
More machines from model year 1984
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Deutz-Fahr DX 3 – Compact Class, 1984 to 1996: three- and four-cylinder diesels with 34 to 57.1 kW (46 to 78 hp), 2,827 to 4,086 cm³ displacement, air-cooled
The DX 3 series was Deutz-Fahr's compact entry class, built from 1984 to 1996. According to the register, output ranges from 34 to 57.1 kW, with models rated in horsepower spanning 46 to 78 hp, using three- and four-cylinder engines with displacement from 2,827 to 4,086 cm³.
Read on 3 more paragraphs
Recorded operating weight runs from 2,540 to 3,400 kg, wheelbase from 2,012 to 2,327 mm, and top speed of the listed models spans 30 to 40 km/h. Model names followed a cylinder-count-dot-power-code scheme, such as DX 3.90 for the most powerful three-cylinder model in the series.
The DX 3 series complemented the larger DX series from below in the Deutz-Fahr range, aimed at smaller farms as well as grassland and orchard operations. For a used model, check the gearbox variant, as simple and powershift versions were offered in parallel.
In tractors of this power class, the 1980s increasingly saw the two-speed PTO with 540 and 1,000 rpm, switched depending on the attached implement; the three-point hitch matched category I at the lower end of the range and already category II under ISO 730 at its more powerful edge. Deutz-Fahr's shift from naturally aspirated engines to turbocharging at this time began first with larger series; the DX 3 models remained naturally aspirated. Tractors with a category II hitch can be matched to category I implements using suitable reducer bushings; the reverse is not possible without modification.
Sources: SpecCodex register, model data: Deutz-Fahr DX-3-Reihe, Deutz-Fahr
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 70 hp (51.5 kW)correct |
| Rated speed | 2,350 rpmcorrect |
| Torque | 234 Nmcorrect |
| Speed at max. torque | 1,600 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 3,768 cm³correct |
| Bore | 100 mmcorrect |
| Stroke | 120 mmcorrect |
| Cooling | air-cooledcorrect |
Dimensions and weights
| Length | 3,910 mmcorrect |
|---|---|
| Width | 2,138 mmcorrect |
| Height | 2,470 mmcorrect |
| Wheelbase | 2,327 mmcorrect |
| Ground clearance | 457 mmcorrect |
| Unladen weight | 3,140 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 12V / 4Rcorrect |
| Forward gears | 12correct |
| Reverse gears | 4correct |
| Front tyres | 7.50-18 ASF (A: 12.4 R 24 AS)correct |
| Rear tyres | 16.9 R 34 AScorrect |
| Top speed | 30 km/hcorrect |
Working data
| Fuel tank capacity | 87 lcorrect |
|---|
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Other data
| Linkage category | Cat IIcorrect |
|---|
Where this model stands
Power-to-weight ratio: 16.4 kW/t (52 kW / 3.1 t)
Power class: Universal (40–100 hp)
Stronger than 48% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Deutz-Fahr DX 3.70 have?
The Deutz-Fahr DX 3.70 delivers 70 hp.
How much does the Deutz-Fahr DX 3.70 weigh?
The unladen weight is 3,140 kg.
What engine does the Deutz-Fahr DX 3.70 have?
4 cylinders, 3,768 cm³ displacement, Diesel.
How fast does the Deutz-Fahr DX 3.70 go?
Top speed is 30 km/h.
What are the dimensions of the Deutz-Fahr DX 3.70?
3,910 mm × 2,138 mm × 2,470 mm.
When was the Deutz-Fahr DX 3.70 built?
Production years: 1984–1989.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 28 individual figures for this model. They come from 2 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
1 current listings for Deutz-Fahr DX 3.70 on Hutnia.com.
View offers on Hutnia.com →
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
Other models in this series
Sources: Wikibooks Traktorenlexikon (CC BY-SA 4.0) (retrieved August 2026) · Wikipedia (CC BY-SA 4.0) (retrieved August 2026) · Values adopted and presented in our own form; changes from the source are possible. · How we check the data
