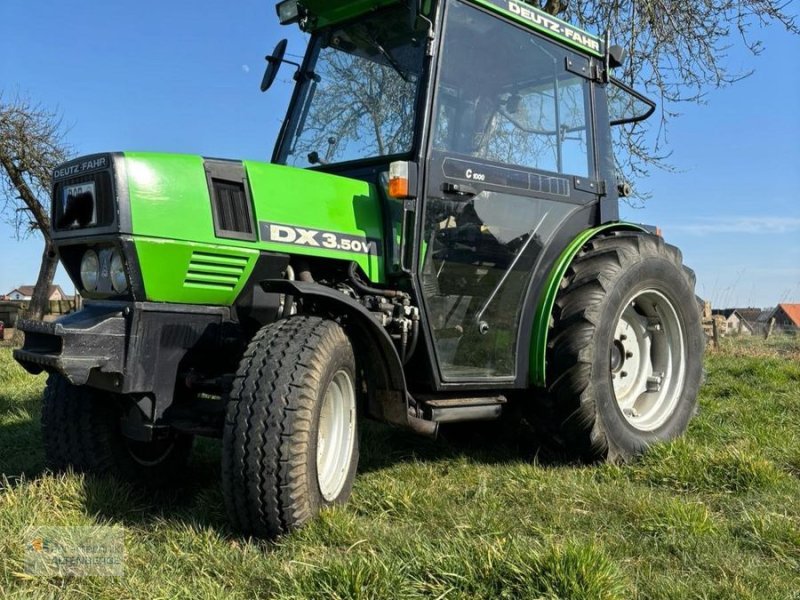

Deutz-Fahr DX 3.50
Built: 1984–1996 · Series: DX-3-Reihe
More machines from model year 1984
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Deutz-Fahr DX 3 – Compact Class, 1984 to 1996: three- and four-cylinder diesels with 34 to 57.1 kW (46 to 78 hp), 2,827 to 4,086 cm³ displacement, air-cooled
The DX 3 series was Deutz-Fahr's compact entry class, built from 1984 to 1996. According to the register, output ranges from 34 to 57.1 kW, with models rated in horsepower spanning 46 to 78 hp, using three- and four-cylinder engines with displacement from 2,827 to 4,086 cm³.
Read on 3 more paragraphs
Recorded operating weight runs from 2,540 to 3,400 kg, wheelbase from 2,012 to 2,327 mm, and top speed of the listed models spans 30 to 40 km/h. Model names followed a cylinder-count-dot-power-code scheme, such as DX 3.90 for the most powerful three-cylinder model in the series.
The DX 3 series complemented the larger DX series from below in the Deutz-Fahr range, aimed at smaller farms as well as grassland and orchard operations. For a used model, check the gearbox variant, as simple and powershift versions were offered in parallel.
In tractors of this power class, the 1980s increasingly saw the two-speed PTO with 540 and 1,000 rpm, switched depending on the attached implement; the three-point hitch matched category I at the lower end of the range and already category II under ISO 730 at its more powerful edge. Deutz-Fahr's shift from naturally aspirated engines to turbocharging at this time began first with larger series; the DX 3 models remained naturally aspirated. Tractors with a category II hitch can be matched to category I implements using suitable reducer bushings; the reverse is not possible without modification.
Sources: SpecCodex register, model data: Deutz-Fahr DX-3-Reihe, Deutz-Fahr
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 60 hp (44 kW)correct |
| Rated speed | 2,500 rpmcorrect |
| Torque | 195 Nmcorrect |
| Cylinders | 3correct |
| Displacement | 3,064 cm³correct |
| Cooling | air-cooledcorrect |
Dimensions and weights
| Length | 3,630 mmcorrect |
|---|---|
| Width | 2,138 mmcorrect |
| Height | 2,350 mmcorrect |
| Wheelbase | 2,012 mmcorrect |
| Ground clearance | 457 mmcorrect |
| Unladen weight | 2,730 kgcorrect |
Drivetrain and chassis
| Drive | rear- or four-wheel drivecorrect |
|---|---|
| Gearbox | 16V / 8Rcorrect |
| Front tyres | 7.50-16 ASF (A: 11.2-24 AS)correct |
| Rear tyres | 16.9 R 30 AScorrect |
| Top speed | 30 km/hcorrect |
Working data
| Fuel tank capacity | 72 lcorrect |
|---|
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Other data
| Linkage category | Cat IIcorrect |
|---|---|
| PTO speed | 540/1000 rpmcorrect |
Where this model stands
Power-to-weight ratio: 16.1 kW/t (44 kW / 2.7 t)
Power class: Universal (40–100 hp)
Stronger than 41% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Deutz-Fahr DX 3.50 have?
The Deutz-Fahr DX 3.50 delivers 60 hp.
How much does the Deutz-Fahr DX 3.50 weigh?
The unladen weight is 2,730 kg.
What engine does the Deutz-Fahr DX 3.50 have?
3 cylinders, 3,064 cm³ displacement, Diesel.
How fast does the Deutz-Fahr DX 3.50 go?
Top speed is 30 km/h.
What are the dimensions of the Deutz-Fahr DX 3.50?
3,630 mm × 2,138 mm × 2,350 mm.
When was the Deutz-Fahr DX 3.50 built?
Production years: 1984–1996.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
