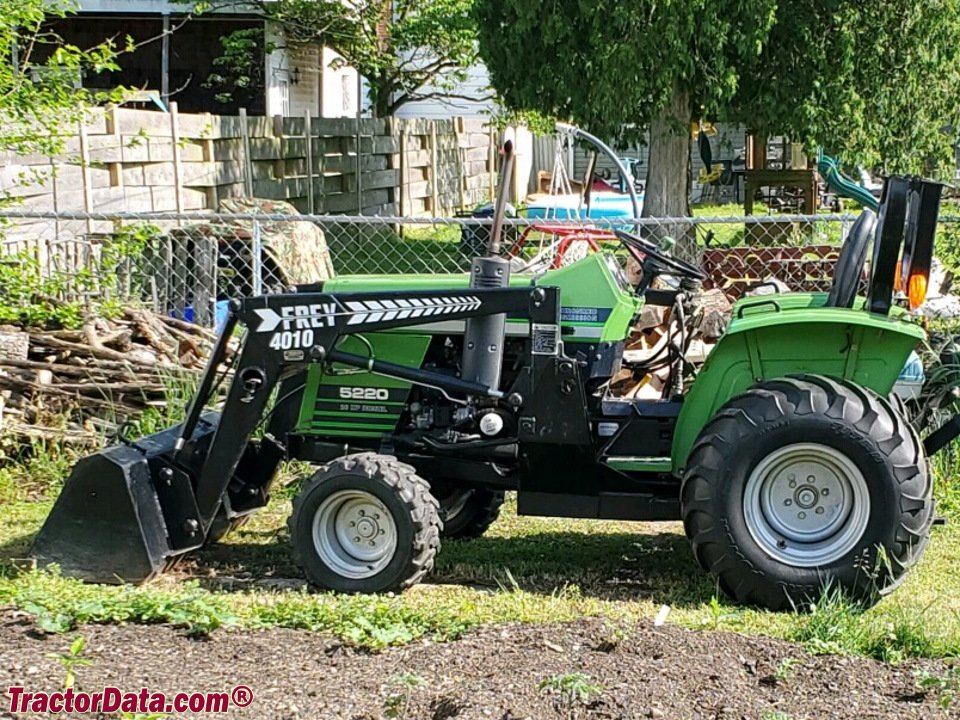

Deutz Allis 5220
Built: 1987–1989 · Series: 5200 er-Baureihe
More machines from model year 1987
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Deutz Allis 5200 range – models 5215, 5220 and 5230: Toyosha three-cylinder diesel from 13.4 to 23.1 kW, 1,002 to 1,505 cm³ displacement and 620 to 1,312 kg weight
Deutz-Allis was the brand under which the German KHD group (Deutz) marketed the majority-acquired US farm machinery division of Allis-Chalmers on the North American market from the mid-1980s. The compact 5200 range with the models 5215, 5220 and 5230 was supplied by Toyosha of Japan, a common practice for compact tractors sold under North American and European agricultural brands at the time.
Read on 3 more paragraphs
The register lists 3 versions with 13.4 to 23.1 kW rated output at 2,500 to 2,600 rpm. The three-cylinder engines produce between 1,002 and 1,505 cm³ displacement, operating weights range from 620 to 1,312 kg at lengths from 2,623 to 2,830 mm and widths from 1,120 to 1,455 mm.
As compact tractors, the 5200 range targeted smaller farms, fruit and vine growing, and municipal work in North America, where Deutz-Allis, with bought-in Japanese compact models, competed against Kubota, John Deere and Ford. The Toyosha engine technically sets the range apart from the larger Deutz-Allis tractors built in Europe, which used Deutz's own air-cooled diesel engines.
When buying used, the condition of clutch and gearbox, and corrosion on sheet-metal parts and hydraulic lines, rank among the key checks. On the Toyosha three-cylinder engines it is worth checking the injection pump and cooling system; because of the bought-in engine base, spare parts are often only available in limited form through the regular Deutz trade, and specialist compact-tractor suppliers are worth consulting.
Sources: SpecCodex register, model data: Deutz Allis 5200er-Baureihe
Technical data
Engine
| Engine make | Toyoshacorrect |
|---|---|
| Fuel | dieselcorrect |
| Power | 26 hp (19.4 kW)correct |
| Rated speed | 2,500 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 1,425 cm³correct |
| Bore | 82 mmcorrect |
| Stroke | 89.92 mmcorrect |
| Compression ratio | 23correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 2,830 mmcorrect |
|---|---|
| Width | 1,265 mmcorrect |
| Height | 2,174 mmcorrect |
| Wheelbase | 1,600 mmcorrect |
| Ground clearance | 409 mmcorrect |
| Unladen weight | 1,104 kgcorrect |
Drivetrain and chassis
| Drive | rear- and four-wheel drivecorrect |
|---|---|
| Gearbox | 12 V/4 Rcorrect |
| Front tyres | 5.00-15 (4 WD: 6.00-14)correct |
| Rear tyres | 11.2-24correct |
| Top speed | 17 km/hcorrect |
Other data
| Predecessor | Allis-Chalmers 5020correct |
|---|
Where this model stands
Power-to-weight ratio: 17.6 kW/t (19 kW / 1.1 t)
Power class: Compact (< 40 hp)
Stronger than 14% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Deutz Allis 5220 have?
The Deutz Allis 5220 delivers 26 hp.
How much does the Deutz Allis 5220 weigh?
The unladen weight is 1,104 kg.
What engine does the Deutz Allis 5220 have?
3 cylinders, 1,425 cm³ displacement, Diesel.
How fast does the Deutz Allis 5220 go?
Top speed is 17 km/h.
What are the dimensions of the Deutz Allis 5220?
2,830 mm × 1,265 mm × 2,174 mm.
When was the Deutz Allis 5220 built?
Production years: 1987–1989.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
