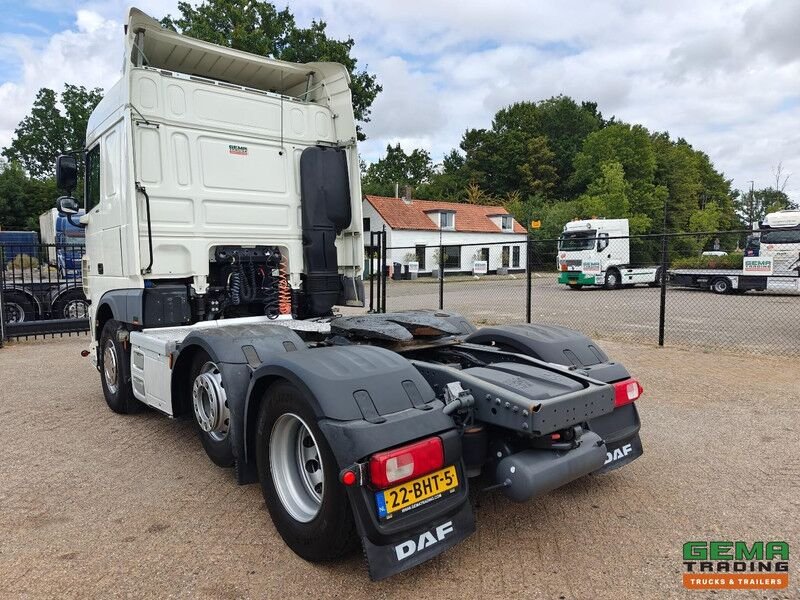

DAF XF510 FTG – specifications
Built: 2016 · Series: XF510
Data for the version built 2016 · Data origin: Official register, Reference work (Wikipedia/Wikibooks) · sources
More machines from model year 2016
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The XF510 FTG from DAF is part of the XF510 series. Production: 2016. The engine delivers 375 kW, has 6 cylinders, with a displacement of 12,902 cm³. The vehicle is 6,310 mm long and 2,550 mm wide. The unladen weight is 8,800 kg. The gross vehicle weight is 27,000 kg. The XF510 series covers 6 models. 3352 DAF models across 109 series are on record.
Shorter than the other versions of the XF510 series is the FTG from model year 2016: only 6,310 mm in length at a width of 2,550 mm. The unladen weight of 8,800 kg and the permissible gross weight of 27,000 kg suggest a tractor unit waiting for a semi-trailer rather than a vehicle carrying its own platform or box. The six-cylinder with 12,902 cm³ and 375 kW is the same as in its siblings.
The compact build makes the machine interesting for distribution work with swap trailers and for port handling, where short tractors have to take tight corners.
The name combines the power class and the chassis code. When the series is sorted, the FTG sits at the lower end of the weight range: the FTM variant weighs clearly more, while the FAD is longer. That this vehicle was built only in 2016 fits the Euro VI phase of DAF's XF family.
DAF XF510 – flagship long-haul tractor unit with the 510hp PACCAR MX-13 engine, 12,902cc, 27,000 to 42,000kg gross vehicle weight
The DAF XF has been the flagship series of the Eindhoven manufacturer since 1997; the current New XF generation is powered by the 12.9-litre six-cylinder MX-13, with the power level given by the number suffix in the name – XF510 denotes 510 horsepower. The abbreviations FAD, FAT, FTG, FTM and FTS denote DAF's respective chassis and cab variants. Since PACCAR's 1996 takeover of DAF, the company has shared the MX engine family technically with sister brands Kenworth and Peterbilt.
Read on 3 more paragraphs
The register lists 6 versions rated at 375 kW from the six-cylinder MX-13 of 12,902cc, kerb weights of 8,800 to 16,270kg, gross vehicle weights of 27,000 to 42,000kg, lengths of 6,310 to 10,300mm and widths of 2,550 to 2,600mm.
The XF510 ranks among the top-power units in long-haul transport and competes with the strongest models of the Mercedes-Benz Actros, Volvo FH and Scania; DAF positions the MX-13 engines on fuel consumption and torque as its case for long-distance haulage. In European long-haul transport the XF ranks among the best-selling heavy trucks and is widely used as a tractor unit for cross-border freight.
When buying: check the mileage and service history of the MX-13 engine, the condition of the clutch and gearbox (AS Tronic or TraXon), the brake system and air suspension, and the frame and fifth wheel on tractor units; spare parts and servicing run through DAF's dense dealer network.
Sources: SpecCodex register, model data: DAF XF510, DAF Trucks (manufacturer)
Technical data
Engine
| Power | 375 kWcorrect |
|---|---|
| Cylinders | 6correct |
| Displacement | 12,902 cm³correct |
Dimensions and weights
| Length | 6,310 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Unladen weight | 8,800 kgcorrect |
| Gross vehicle weight | 27,000 kgcorrect |
Frequently asked questions
How much power does the DAF XF510 FTG have?
The DAF XF510 FTG delivers 375 kW.
How much does the DAF XF510 FTG weigh?
The unladen weight is 8,800 kg.
What is the gross vehicle weight of the DAF XF510 FTG?
27,000 kg.
What engine does the DAF XF510 FTG have?
6 cylinders, 12,902 cm³ displacement.
What are the dimensions of the DAF XF510 FTG?
6,310 mm × 2,550 mm.
When was the DAF XF510 FTG built?
Production years: 2016.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
