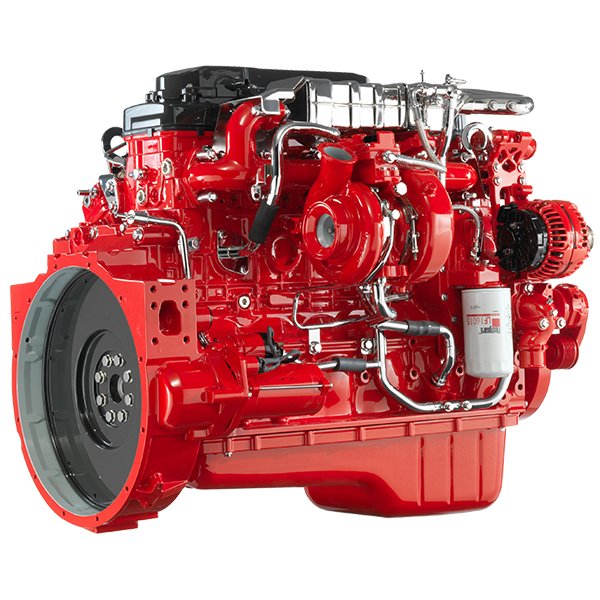

Cummins ISB6.7 305

Built: 2012 · Series: ISB6.7

More machines from model year 2012

Source: cummins.com

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Cummins ISB6.7 305 is a model in the ISB6.7 series. Production: 2012. The fuel is diesel. The rated output is 227.4 kW. Application: MHDD. The engine is single-stage turbocharged. Fuel reaches the combustion chamber through electronically controlled direct injection. It is a diesel engine. The ISB6.7 series covers 21 models. Rated output within it ranges from 145.4 to 268.5 kW; the ISB6.7 305 sits in the upper part of that range with 227.4 kW. Its immediate neighbours are the ISB6.7 300 EV below it with 223.7 kW and the ISB6.7 325H above it with 234.9 kW. 517 Cummins models across 22 series are on record.

Cummins ISB6.7 — the Classic 6.7-Liter Mid-Range Diesel – inline six-cylinder diesel of 6.7 litres, roughly 200 to 325 hp, for medium-duty trucks, buses and motorhome chassis

The ISB6.7 is an inline six-cylinder diesel displacing 6.7 liters (SpecCodex data: 3 recorded models at 6,700 cm³), and the sample set here spans roughly 200 to 325 hp. It is used in medium-duty trucks, buses and motorhome chassis.

Read on 4 more paragraphs

The engine is a direct evolution of Cummins' B-series and was renamed B6.7 around 2018/2019, though the ISB6.7 designation remains common for older model years in the used-parts market. Cummins markets the line as being in its "fourth decade of continuous improvement"; the 2019 version is described as EGR-free and delivers about 5 percent more power and 31 percent more peak torque than the previous model.

The ISB6.7/B6.7 has powered an unusually wide range of vehicles, from the International DuraStar and Kenworth/Peterbilt mid-range trucks to school buses and European DAF LF commercial vehicles.

Like other US highway diesels in this class, the engine meets the strict North American on-highway NOx limit in force since 2010 only with a combination of cooled exhaust-gas recirculation, a diesel particulate filter and an SCR catalyst with AdBlue dosing; injection itself is handled by a high-pressure common-rail system rather than a mechanical inline injection pump. The inline six runs on wet cylinder liners, which can be replaced individually during a major overhaul without swapping the whole block.

On a used example, a complete oil-change and emissions-system service history is the main thing to verify — Cummins itself points to improved service intervals on the current B6.7 generation compared with its predecessor as one of the model's selling points.

Sources: SpecCodex register, model data: Cummins ISB6.7, Cummins (manufacturer)

Technical data

Engine

Engine code2787; FR92260; 2792; FR92265; FR92397; FR92412; FR93469; FR93471; 2786; FR92396; 2791; FR92411; FR93468; FR93470correct
Engine familyCCEXH0408BAK; CCEXH0408BALcorrect
Engine familiesCCEXH0408BAK; CCEXH0408BALcorrect
Fueldieselcorrect
Rated output227.4 kW (= 305 bhp)correct
Rated speed2,900 rpmcorrect
Maximum torque610 ft·lbfcorrect
Speed at max. torque1,600 rpmcorrect
Operating cycledieselcorrect
Injectionelectronic direct injectioncorrect
Aspirationsingle-stage turbocorrect

Origin and approval

Built from2012correct
Built to2012correct
Model year from2012correct
Model year to2012correct

Other data

ApplicationMHDDcorrect

Frequently asked questions

How much power does the Cummins ISB6.7 305 have?

The Cummins ISB6.7 305 delivers 227 kW.

When was the Cummins ISB6.7 305 built?

Production years: 2012.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 19 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →

Other models in this series

Sources: US EPA — engine certification data (retrieved August 2026) · How we check the data

Diesel engine in 3D section

Turn the model, look inside and click an assembly — each one is explained.

Parts for this engine (26)

Manufacturer part numbers from the official EPA documentation. No prices or availability — those come from the supplier.

Part number Description Manufacturer
5288446 Ambient Temperature Cummins
4921850 Comp Inlet Temp and Pressure Cummins
4954905 Coolant Temperature Sensor;Coolant Temp Sensor;Coolant Temperature Sensor;Engine Out NOx Sensor 2;Coolant Temperature Sensor;Oil Temperature Sensor;Oil Temperature Sensor;Coolant Temperature Sensor;Coolant temp sensor Cummins
4984220 DPF Delta Press Cummins
4992847 ECM / Motorsteuergerät Cummins
4992849 ECM / Motorsteuergerät Cummins
5268442 ECM / Motorsteuergerät Cummins
5268445 ECM / Motorsteuergerät Cummins
4928594 Exhaust Manifold Pressure;EGR Orifice Pressure Sensor;EGR pressure sensor Cummins
4947456 Einspritzpumpe Cummins
2872277 Camshaft Position Sensor;Engine Crankshaft;Camshaft Position Sensor;Crankshaft Position Sensor;Engine Camshaft;Engine Camshaft Position Sensor;Engine Camshaft Cummins
2872081 Engine Out NOx Cummins
2894941 Engine Out NOx Cummins
2872858 EGR Out Temperature Sensor;Intake Manifold Temp Sensor;EGR Out Temperature Sensor;EGR Out Temperature Sensor;Intake Manifold Temp Sensor;EGR temp sensor Cummins
5264247 Fuel Injection Pump Cummins
5261237 Fuel Pressure Cummins
4994928 Injektor Cummins
4921322 Intake Mnfld Temp and Pressure Cummins
4984760 Mass Air Flow Cummins
4954489 SCR Out Temp Cummins
2871978 System Out NOx Cummins
2894939 System Out NOx Cummins
2837039 Turbo Speed Cummins
2837666 Turbolader Cummins
2842406 Turbolader Cummins
3770975 Turbolader Cummins

Source: 2012 Model Year On-Highway Heavy-Duty Engine Certification Data
