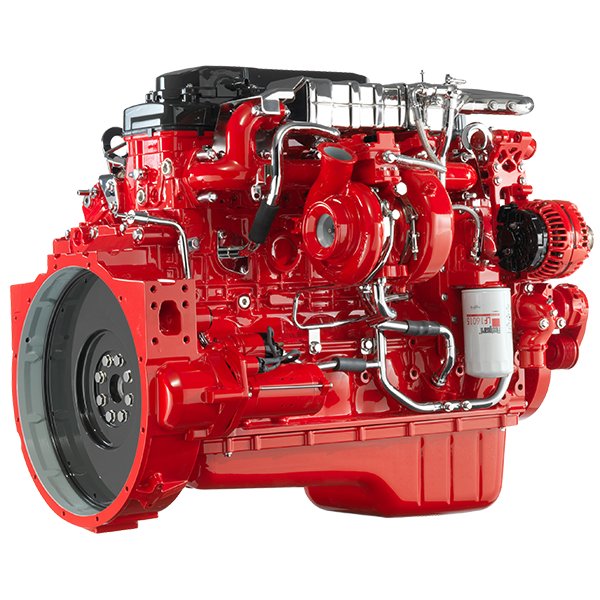

Cummins ISB6.7 280

Built: 2012-2015 · Series: ISB6.7

More machines from model year 2012

Source: cummins.com

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the ISB6.7 280, Cummins offers a model from the ISB6.7 series. Production: 2012-2015. The fuel is diesel. The rated output is 201.3 kW. Application: MHDD. The engine is single-stage turbocharged. Fuel reaches the combustion chamber through electronically controlled direct injection. It is a diesel engine. The ISB6.7 series covers 21 models. Rated output within it ranges from 145.4 to 268.5 kW; the ISB6.7 280 sits in the middle of that range with 201.3 kW. Its immediate neighbours are the ISB6.7 260H below it with 186.4 kW and the ISB6.7 300 above it with 223.7 kW. 517 Cummins models across 22 series are on record.

Cummins ISB6.7 — the Classic 6.7-Liter Mid-Range Diesel – inline six-cylinder diesel of 6.7 litres, roughly 200 to 325 hp, for medium-duty trucks, buses and motorhome chassis

The ISB6.7 is an inline six-cylinder diesel displacing 6.7 liters (SpecCodex data: 3 recorded models at 6,700 cm³), and the sample set here spans roughly 200 to 325 hp. It is used in medium-duty trucks, buses and motorhome chassis.

Read on 4 more paragraphs

The engine is a direct evolution of Cummins' B-series and was renamed B6.7 around 2018/2019, though the ISB6.7 designation remains common for older model years in the used-parts market. Cummins markets the line as being in its "fourth decade of continuous improvement"; the 2019 version is described as EGR-free and delivers about 5 percent more power and 31 percent more peak torque than the previous model.

The ISB6.7/B6.7 has powered an unusually wide range of vehicles, from the International DuraStar and Kenworth/Peterbilt mid-range trucks to school buses and European DAF LF commercial vehicles.

Like other US highway diesels in this class, the engine meets the strict North American on-highway NOx limit in force since 2010 only with a combination of cooled exhaust-gas recirculation, a diesel particulate filter and an SCR catalyst with AdBlue dosing; injection itself is handled by a high-pressure common-rail system rather than a mechanical inline injection pump. The inline six runs on wet cylinder liners, which can be replaced individually during a major overhaul without swapping the whole block.

On a used example, a complete oil-change and emissions-system service history is the main thing to verify — Cummins itself points to improved service intervals on the current B6.7 generation compared with its predecessor as one of the model's selling points.

Sources: SpecCodex register, model data: Cummins ISB6.7, Cummins (manufacturer)

Technical data

Engine

Engine code3727; FR93533; 3612; FR93347; 3613; FR93348; 4608; FR94817; 4609; FR94818correct
Engine familyCCEXH0408BAH; DCEXH0408BAP; ECEXH0408BAP; GCEXH0408BAPcorrect
Engine familiesCCEXH0408BAH; DCEXH0408BAP; ECEXH0408BAP; GCEXH0408BAPcorrect
Fueldieselcorrect
Rated output201.3 kW (= 270 bhp)correct
Rated speed2,600 rpmcorrect
Maximum torque660 ft·lbfcorrect
Speed at max. torque1,600 rpmcorrect
Operating cycledieselcorrect
Injectionelectronic direct injectioncorrect
Aspirationsingle-stage turbocorrect

Origin and approval

Built from2012correct
Built to2016correct
Model year from2012correct
Model year to2016correct

Other data

ApplicationMHDDcorrect

Frequently asked questions

How much power does the Cummins ISB6.7 280 have?

The Cummins ISB6.7 280 delivers 201 kW.

When was the Cummins ISB6.7 280 built?

Production years: 2012-2015.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 19 individual figures for this model. They come from 2 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →

Other models in this series

Sources: US EPA — engine certification data (retrieved August 2026) · How we check the data

Diesel engine in 3D section

Turn the model, look inside and click an assembly — each one is explained.

Parts for this engine (73)

Manufacturer part numbers from the official EPA documentation. No prices or availability — those come from the supplier.

Teilenummer Bezeichnung Hersteller
4307496 Ammonia Cummins
4921684 Camshaft Position Sensor Cummins
2897333 Charge Air Cooler Temperature Cummins
4921850 Comp Inlet Temp and Pressure Cummins
2897332 Compressor Inlet Temperature Cummins
4954905 Coolant Temperature Sensor;Coolant Temp Sensor;Coolant Temperature Sensor;Engine Out NOx Sensor 2;Coolant Temperature Sensor;Oil Temperature Sensor;Oil Temperature Sensor;Coolant Temperature Sensor;Coolant temp sensor Cummins
2872467 DOC In Temp Cummins
4984178 DOC In Temp Cummins
2872468 DPF Out Temp Cummins
4984179 DPF Out Temp Cummins
2871960 Diesel Particulate Filter Pressure Cummins
4307101 Aftertreatment Temperature Sensor Cummins
4307103 Aftertreatment Temperature Sensor Cummins
4993120 ECM / Motorsteuergerät Cummins
4954250 EGR Cooler Out Temp Cummins
2872210 EGR Flow Delta Press Cummins
4928594 Exhaust Manifold Pressure;EGR Orifice Pressure Sensor;EGR pressure sensor Cummins
2872277 Camshaft Position Sensor;Engine Crankshaft;Camshaft Position Sensor;Crankshaft Position Sensor;Engine Camshaft;Engine Camshaft Position Sensor;Engine Camshaft Cummins
2872948 Engine NOx Cummins
2897314 Engine NOx Cummins
4326475 Engine NOx Cummins
2872081 Engine Out NOx Cummins
2872082 Engine Out NOx Cummins
2872297 Engine Out NOx Cummins
2872298 Engine Out NOx Cummins
2894941 Engine Out NOx Cummins
2894942 Engine Out NOx Cummins
2894945 Engine Out NOx Cummins
2894946 Engine Out NOx Cummins
4326873 Engine Out NOx Sensor 1;Engine Out NOx Sensor Cummins
2872424 Exhaust Gas Recirculation Pressure Cummins
2872858 EGR Out Temperature Sensor;Intake Manifold Temp Sensor;EGR Out Temperature Sensor;EGR Out Temperature Sensor;Intake Manifold Temp Sensor;EGR temp sensor Cummins
4307166 Exhaust Gas Recirculation Pressure Cummins
4983416 Fuel Injection Pump Cummins
5256034 Fuel Injector Cummins
4306993 Fuel Pressure Cummins
5261237 Fuel Pressure Cummins
4921322 Intake Mnfld Temp and Pressure Cummins
2897307 NOx Sensor Selective Catalytic Reduction Cummins
4326472 Tailpipe NOx Sensor Cummins
4326864 Tailpipe NOx Sensor Cummins
4326867 Engine Out NOx Sensor Cummins
4326869 Tailpipe NOx Sensor Cummins
2872469 SCR Out Temp Cummins
4984757 SCR Out Temp Cummins
4307100 Aftertreatment Temperature Sensor Cummins
4307102 Aftertreatment Temperature Sensor Cummins
2871974 System Out NOx Cummins
2871978 System Out NOx Cummins
2872236 System Out NOx Cummins
2894939 System Out NOx Cummins
2894943 System Out NOx Cummins
2894944 System Out NOx Cummins
2872947 Tailpipe NOx Cummins
4043794 Turbo Speed Cummins
4044473 Turbo Speed Cummins
4307345 Turbocharger Speed Sensor Cummins
2771665 Turbolader Cummins
2837011 Turbolader Cummins
2837018 Turbolader Cummins
2840700 Turbolader Cummins
2840717 Turbolader Cummins
3771662 Turbolader Cummins
3771665 Turbolader Cummins
3781567 Turbolader Cummins
3789502 Turbolader Cummins
3789509 Turbolader Cummins
3789510 Turbolader Cummins
3791957 Turbolader Cummins
3795988 Turbolader Cummins
3795992 Turbolader Cummins
3795994 Turbolader Cummins
3795998 Turbolader Cummins

Quelle: 2013 Model Year On-Highway Heavy-Duty Engine Certification Data
