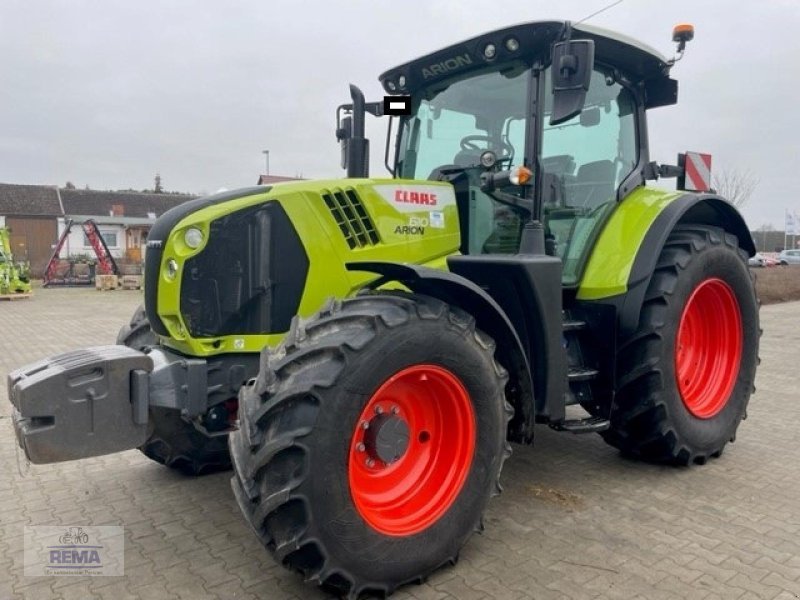

CLAAS Arion 610 4WD
Series: ARION
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The CLAAS Arion 610 is a tractor from the Claas 4WD Tractor series. Power comes from a six-cylinder engine; from 6.8 litres it draws 125 hp (85 kW). Rated power arrives at 2,200 rpm — the engine pulls from low down rather than needing to be revved.
On the road, up to 50 km/h is possible. Unladen, it tips the scales at 6,524 kg.
Within the range, rated power spans from 74.1 to 517 hp; with 125 hp, the Arion 610 sits in the mid-field. Directly alongside are the Arion 520 with 122 hp below and the Arion 530 with 128 hp above.
Technical data
Engine
| Engine model | ECE R 24correct |
|---|---|
| Power | 125.1 hp (85 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 6,789.2 cm³correct |
Dimensions and weights
| Ground clearance | 508correct |
|---|---|
| Unladen weight | 6,524 kgcorrect |
Drivetrain and chassis
| Gearbox type | powershift transmission speeds 6correct |
|---|---|
| Forward gears | 24correct |
| Reverse gears | 24correct |
| Tyre size | Front 14.9 R 28, Rear 18.4R38correct |
| Top speed | 50.1 km/hcorrect |
Working data
| Pump flow | 110.2 l/mincorrect |
|---|---|
| Hydraulic pressure | 200correct |
| Fuel tank capacity | 330.1 lcorrect |
Other data
| Height | 3,005.3correct |
|---|
Where this model stands
Power-to-weight ratio: 13 kW/t (85 kW / 6.5 t)
Power class: Large (100–180 hp)
Stronger than 74% of the tractors in the register — out of 15,240 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the CLAAS Arion 610 have?
The CLAAS Arion 610 delivers 125 hp.
How much does the CLAAS Arion 610 weigh?
The unladen weight is 6,524 kg.
What engine does the CLAAS Arion 610 have?
6 cylinders, 6,789 cm³ displacement.
How fast does the CLAAS Arion 610 go?
Top speed is 50.1 km/h.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
