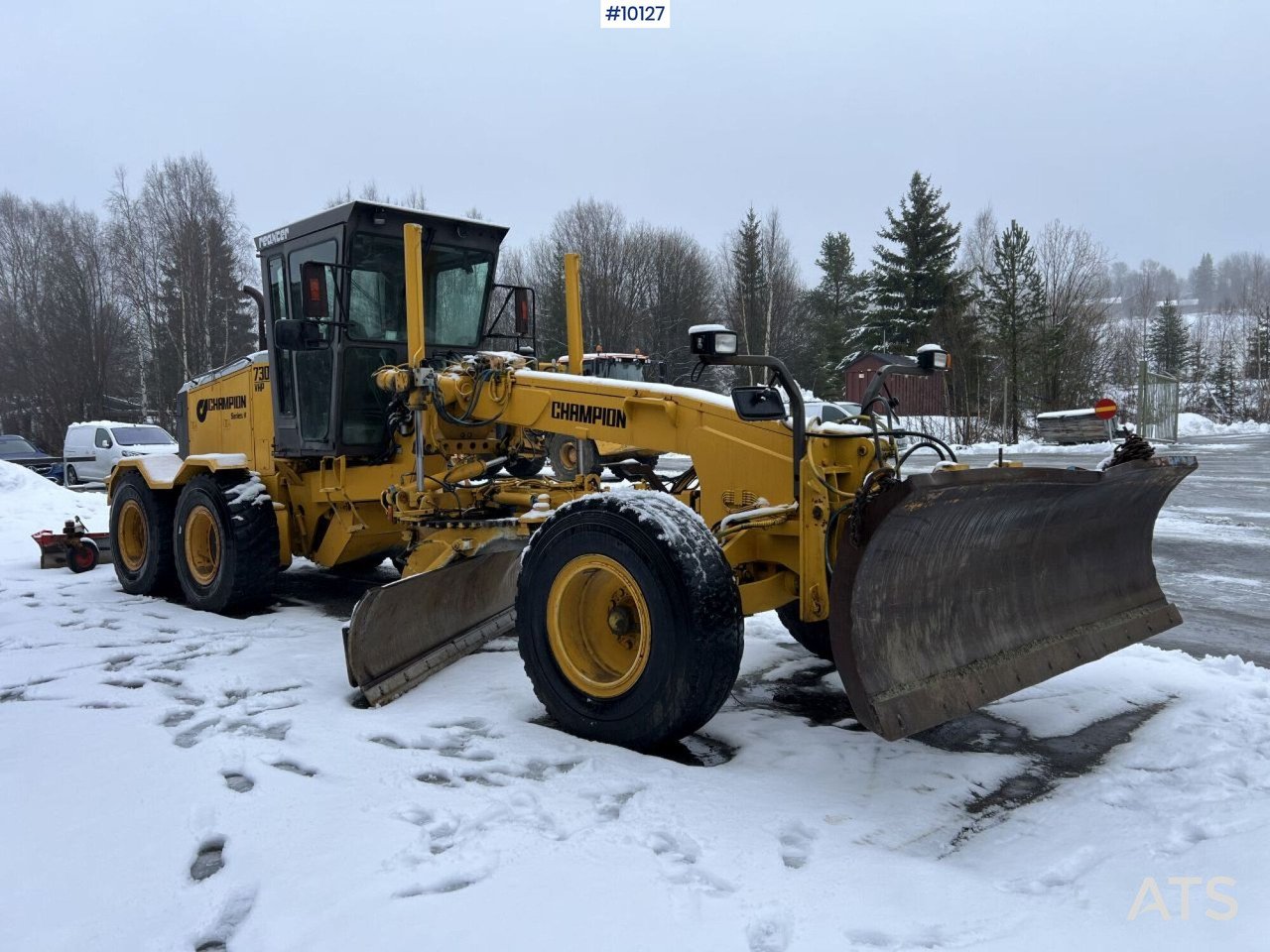

Champion 730A

Series: Champion Motor Grader

Source: https://www.truck1.eu/construction-machinery/graders/champio

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Champion Motor Grader series from Champion includes the 730A. The engine delivers 195.7 hp, has 6 cylinders, with a displacement of 8,270.6 cm³. The engine comes from Cummins. Rated speed is 2,100 rpm. The machine is 2,542 mm wide. The wheelbase measures 6,096 mm. Ground clearance is 640.1 mm. The tank holds 378.5 litres. Maximum torque is reached at 1,500 rpm. The hydraulic tank holds 90.1 litres. Working pressure is 172.4 bar. The cooling system holds 42.8 litres. The engine fitted is the 6CT8,3. Tyre size: 14,00 * 24. G-2. Rated output within this group ranges from 76 to 540.4 hp; the 730A sits in the lower part of that range with 195.7 hp. Its immediate neighbours are the PY190D below it with 192.6 hp and the G720 VHP above it with 197.7 hp. 12 Champion models are on record. The model is listed under Motor graders. 18 verified figures from 1 source are on file.

Technical data

Engine

Engine makeCumminscorrect
Engine model6CT8.3correct
Power195.7 hpcorrect
Rated speed2,100 rpmcorrect
Speed at max. torque1,500 rpmcorrect
Cylinders6correct
Displacement8,270.6 cm³correct
Aspirationturbochargedcorrect
Coolant capacity42.8 lcorrect

Dimensions and weights

Length8,485.6correct
Width2,542correct
Wheelbase6,096correct
Ground clearance640.1correct

Drivetrain and chassis

Gearbox typepowershift transmissioncorrect
Tyre size14.00 * 24, G-2correct

Working data

Hydraulic oil capacity90.1 lcorrect
Hydraulic pressure172.4correct
Fuel tank capacity378.5 lcorrect

Frequently asked questions

How much power does the Champion 730A have?

The Champion 730A delivers 196 hp.

What engine does the Champion 730A have?

6 cylinders, 8,271 cm³ displacement.

What are the dimensions of the Champion 730A?

8,486 mm × 2,542 mm.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
