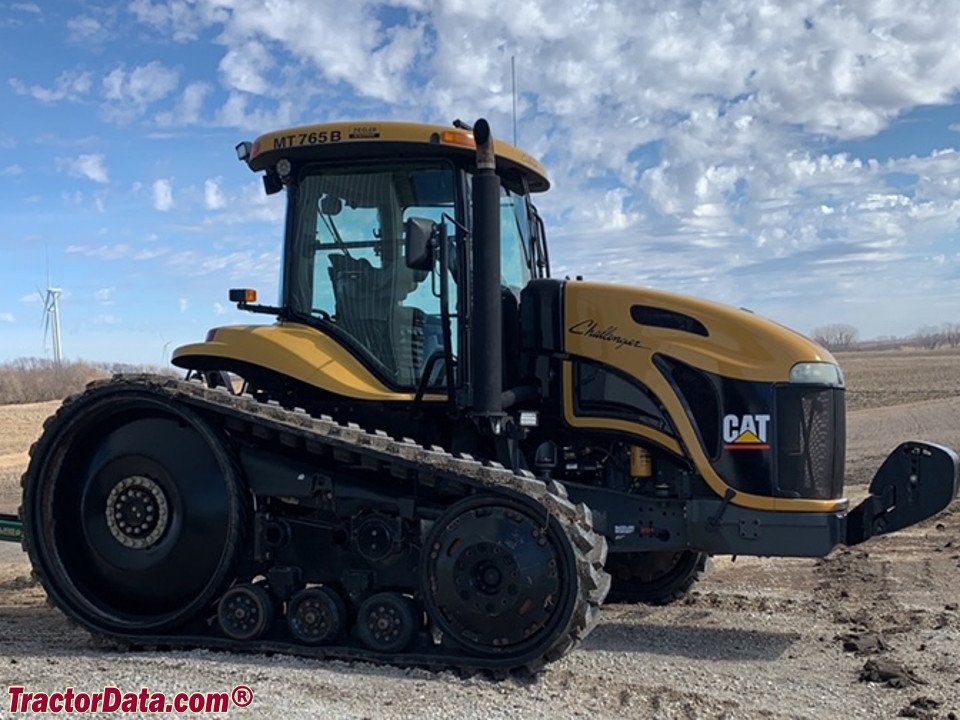

Challenger MT765B 4WD
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The Challenger MT765B is a tractor from the Challenger 4WD Tractor series. Power comes from a six-cylinder engine; from 8.8 litres it draws 324 hp (238.6 kW). Rated speed is 2,100 rpm.
Top speed is 40 km/h. Unladen weight is 14,095 kg.
Within the range, rated power spans from 22.8 to 593 hp; with 324 hp, the MT765B sits in the upper third. Directly alongside are the MT755B with 305 hp below and the MT835B with 355 hp above.
Technical data
Engine
| Engine model | C9 ACERT Tech Tier 3correct |
|---|---|
| Power | 324.4 hp (238.6 kW)correct |
| Rated speed | 2,100 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 8,799.9 cm³correct |
| Aspiration | Turbocharged and Air-to-Air Aftercooledcorrect |
Dimensions and weights
| Ground clearance | 365.3correct |
|---|---|
| Unladen weight | 14,095.4 kgcorrect |
Drivetrain and chassis
| Gearbox type | powershift transmissioncorrect |
|---|---|
| Forward gears | 16correct |
| Reverse gears | 4correct |
| Top speed | 39.6 km/hcorrect |
| System voltage | 24 Vcorrect |
Working data
| Pump flow | 164.7 l/mincorrect |
|---|---|
| Hydraulic pressure | 199.9correct |
| Fuel tank capacity | 447.1 lcorrect |
Other data
| Height | 3,444.2correct |
|---|
Where this model stands
Power-to-weight ratio: 16.9 kW/t (239 kW / 14.1 t)
Power class: Heavy (> 180 hp)
Stronger than 97% of the tractors in the register — out of 15,240 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Challenger MT765B have?
The Challenger MT765B delivers 324 hp.
How much does the Challenger MT765B weigh?
The unladen weight is 14,095 kg.
What engine does the Challenger MT765B have?
6 cylinders, 8,800 cm³ displacement.
How fast does the Challenger MT765B go?
Top speed is 39.6 km/h.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
