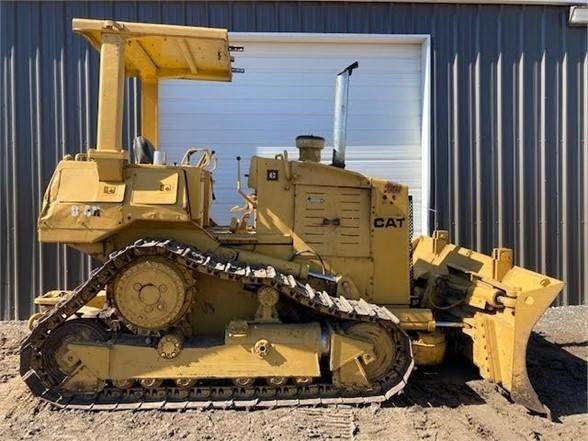

Caterpillar D4H LGP Series II Crawler
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Caterpillar mining – other models: the collective page of dozers outside the named ranges, from the D3 to the D11 and the 797 haul truck: the number as size class, LGP for wide tracks, XL for long undercarriage
This page gathers the Caterpillar dozers and mining machines the register could not assign to a named range – the machines with which the company from Peoria, Illinois, began in 1925: Benjamin Holt's crawler tractors gave the company its name, and the dozer remained its core product. The type logic: D marks the dozer, the number the size class – D3 and D4 the small dozers around 8 t, D5 and D6 the mid-range, D7 and D8 the heavy ones, D9, D10 and D11 the mining dozers of over 100 t – the letters B to T the generations since the 1970s (D6D, D6H, D6R, D6T), LGP the swamp version with wide tracks (Low Ground Pressure), XL the long undercarriage, SA the version with special attachments, WH the landfill version (Waste Handler) and CD the version with Carrydozer blade; the K and K2 models are the small dozers of the 2010s. The 797 is Caterpillar's largest haul truck with about 400 tonnes payload. The engines are throughout Caterpillar's own: 3204 and 3304 in the small, 3306 in the mid-range, 3408 and C series in the heavy dozers and the 24-cylinder 3524 in the 797.
Read on 3 more paragraphs
The register lists here 101 versions with 32.1 to 633.8 kW from four- to twelve-cylinders of 4,402 to 34,501 cm³ at 1,700 to 2,400 rpm and operating weights from 4,926 to 112,763 kg.
Caterpillar is the world's largest construction-equipment maker and in dozers the reference against which Komatsu, Liebherr and John Deere are measured; the D6 is the most-built dozer in history, the D11 the largest series-built.
On used dozers, operating hours, undercarriage (tracks, rollers, sprockets and track tension – the most expensive item), transmission and steering clutches or differential steering, blade and ripper, hydraulics and cooling count; parts run through the dense Cat dealer network.
Sources: SpecCodex register, model data: Caterpillar Bergbau (weitere Modelle), Caterpillar (manufacturer)
Technical data
Engine
| Engine model | 3,204correct |
|---|---|
| Power | 96.3 hp (70.8 kW)correct |
| Displacement | 5,201.3 cm³correct |
Dimensions and weights
| Ground clearance | 365.8 mmcorrect |
|---|---|
| Unladen weight | 11,740 kgcorrect |
Drivetrain and chassis
| Gearbox type | powershift transmissioncorrect |
|---|---|
| Forward gears | 3correct |
| Reverse gears | 3correct |
Working data
| Fuel tank capacity | 167.3 lcorrect |
|---|
Other data
| Cab height | 3,032.8 mmcorrect |
|---|
More machines with this engine (Caterpillar 3204, 37)
Where this model stands
Power-to-weight ratio: 6 kW/t (71 kW / 11.7 t)
Stronger than 29% of the mining equipment in the register — out of 944 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Caterpillar D4H LGP Series II have?
The Caterpillar D4H LGP Series II delivers 96.3 hp.
How much does the Caterpillar D4H LGP Series II weigh?
The unladen weight is 11,740 kg.
What engine does the Caterpillar D4H LGP Series II have?
5,201 cm³ displacement.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
