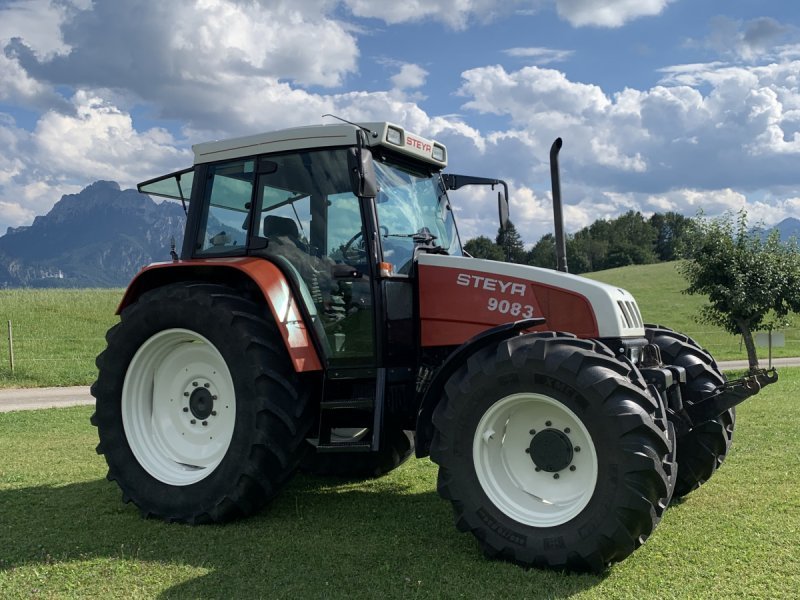

Case Steyr M 9083 a

Built: 1994–1995 · Series: M 9000er-Baureihe

More machines from model year 1994

Source: https://www.technikboerse.com/en/gebraucht/tractor-357/steyr

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The M 9000er series from Case Steyr includes the M 9083 a. Production: 1994–1995. The engine delivers 83 hp (61.1 kW), has 4 cylinders, with a displacement of 4,156 cm³. Torque is 311 Nm. Rated speed is 2,100 rpm. The machine is 4,165 mm long, 2,170 mm wide and 2,550 mm high. The unladen weight is 3,860 kg. The wheelbase measures 2,477 mm. Ground clearance is 410 mm. Top speed is 30 km/h. Transmission: 16V/8R, 32V/16R and 16V/16R. The engine is water-cooled. Tyres: front 13.6 R 24 AS, rear 18.4 R 34 AS. The fuel is Diesel/RME. The bore measures 105 mm. The stroke is 120 mm. Maximum torque is reached at 1,500 rpm. Construction: unit construction (no separate frame). The M 9000er-Baureihe series covers 4 models. Rated output within it ranges from 78 to 94 hp; the M 9083 a sits in the lower part of that range with 83 hp. Its immediate neighbours are the M 9078 (a) below it with 78 hp and the M 9086 a above it with 86 hp. Unladen weight within it ranges from 3,750 to 3,950 kg; here the M 9083 a sits in the middle of that range with 3,860 kg. 13 Case Steyr models across 3 series are on record.

Case Steyr M 9000 series – tractors M 9078(a), M 9083a, M 9086a and M 9094a from the Case-Steyr era, four-cylinder diesels from 57 to 69 kW with a uniform 4.16-litre displacement

The M 9000 series complemented the 9100s in the 1990s as the mid power class of the Case-Steyr collaboration. The leading M distinguishes this series from the neighbouring 9100 and 9200 types, the last two digits of each type designation rise with engine power, and the trailing letter a denotes four-wheel drive, as with Steyr's other large tractors of the period. All four models listed here use the same four-cylinder engine of 4.16 litres displacement at different power ratings.

Read on 3 more paragraphs

The register lists four versions here with 57.4 to 69.2 kW from four-cylinder diesel engines with a uniform 4,156 cm³ displacement. Rated speed lies between 2,100 and 2,300 rpm, unladen weight ranges from 3,750 to 3,950 kg with lengths from 3,980 to 4,215 mm, a width of 2,170 mm and a height of 2,550 mm. The engines are approved for diesel or rapeseed oil methyl ester.

In this mid power class, the M 9000 series targeted mixed farms between pure grassland use and light arable work and competed with comparable mid-range series from Case IH, Fendt and Deutz-Fahr.

When buying used, check the condition of the front axle differential and four-wheel steering, tightness of the hydraulic pump, wear on the clutch and gearbox, and on RME operation the condition of injectors and fuel lines. Parts are available through the CNH network for Steyr and Case IH.

Sources: SpecCodex register, model data: Case Steyr M 9000er-Baureihe, Steyr (CNH Industrial, Hersteller)

Technical data

Engine

Fuel	Diesel/RMEcorrect
Power	83 hp (61.1 kW)correct
Rated speed	2,100 rpmcorrect
Torque	311 Nmcorrect
Speed at max. torque	1,500 rpmcorrect
Cylinders	4correct
Displacement	4,156 cm³correct
Bore	105 mmcorrect
Stroke	120 mmcorrect
Cooling	water-cooledcorrect

Dimensions and weights

Length	4,165 mmcorrect
Width	2,170 mmcorrect
Height	2,550 mmcorrect
Wheelbase	2,477 mmcorrect
Ground clearance	410 mmcorrect
Unladen weight	3,860 kgcorrect

Drivetrain and chassis

Drive	four-wheel drivecorrect
Gearbox	16V/8R, 32V/16R and 16V/16Rcorrect
Front tyres	13.6 R 24 AScorrect
Rear tyres	18.4 R 34 AScorrect
Top speed	30 km/hcorrect

Origin and approval

Construction	unit construction (no separate frame)correct

Where this model stands

Power-to-weight ratio: 15.8 kW/t (61 kW / 3.9 t)

Power class: Universal (40–100 hp)

Stronger than 57% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Case Steyr M 9083 a have?

The Case Steyr M 9083 a delivers 83 hp.

How much does the Case Steyr M 9083 a weigh?

The unladen weight is 3,860 kg.

What engine does the Case Steyr M 9083 a have?

4 cylinders, 4,156 cm³ displacement, Diesel/RME.

How fast does the Case Steyr M 9083 a go?

Top speed is 30 km/h.

What are the dimensions of the Case Steyr M 9083 a?

4,165 mm × 2,170 mm × 2,550 mm.

When was the Case Steyr M 9083 a built?

Production years: 1994–1995.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
