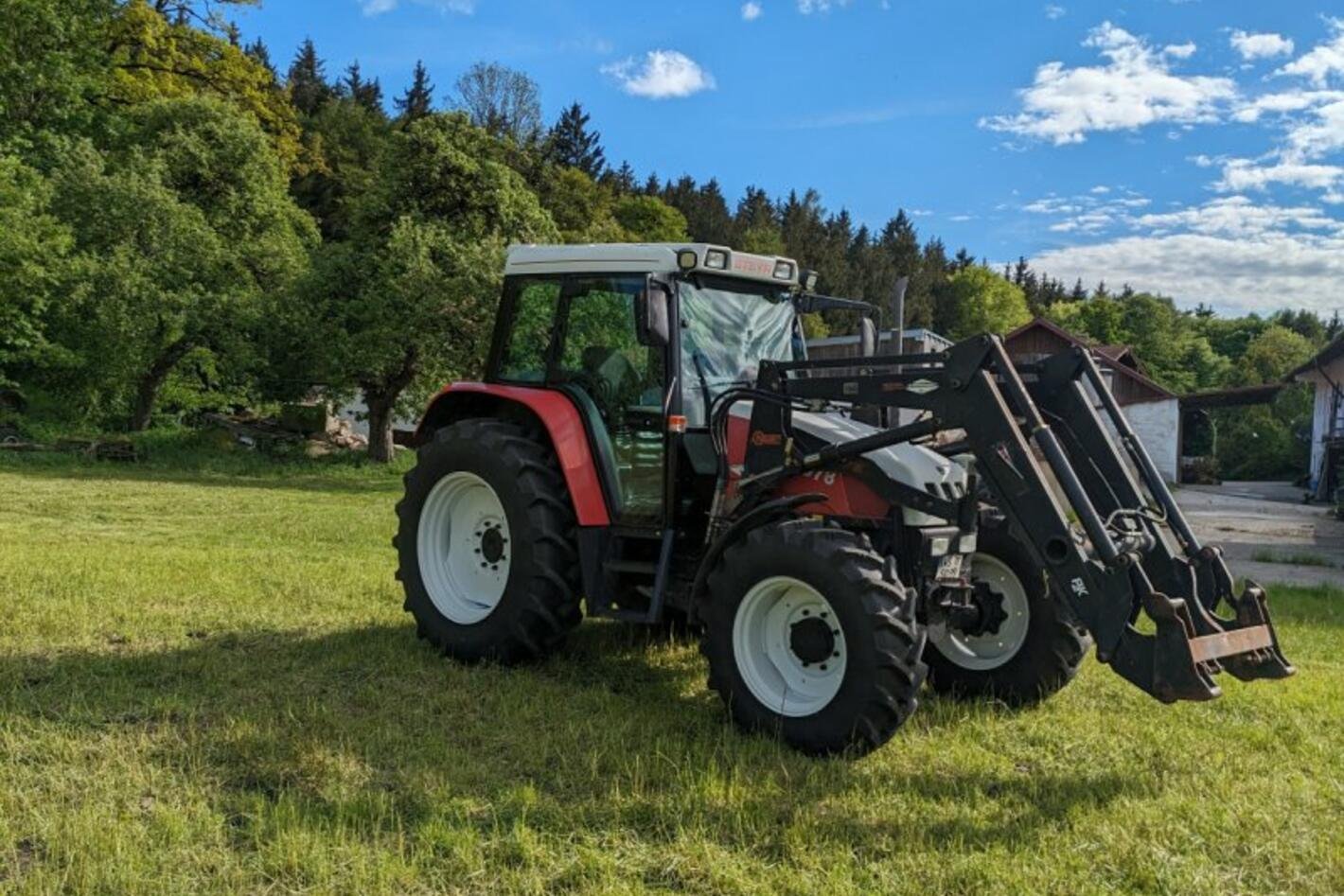

Case Steyr M 9078 (a) – specifications
Built: 1994–2003 · Series: M 9000er-Baureihe
The M 9078 (a) from Case Steyr is part of the M 9000er series. Production: 1994–2003. The engine delivers 78 hp (57.4 kW), has 4 cylinders, with a displacement of 4,156 cm³. Rated speed is 2,300 rpm. The machine is 3,980 mm long, 2,170 mm wide and 2,550 mm high. The unladen weight is 3,750 kg. The wheelbase measures 2,424 mm. Top speed is 30 km/h. Transmission: 16V/8R, 16V/16R and 32V/16R. The engine is water-cooled. Tyres: front 9.00-16 ASF (A: 14.9 R 24 AS), rear 18.4 R 34 AS. The fuel is Diesel/RME. The bore measures 105 mm. The stroke is 120 mm. Construction: unit construction (no separate frame). The M 9000er-Baureihe series covers 4 models. Rated output within it ranges from 78 to 94 hp; the M 9078 (a) sits at the bottom of that range with 78 hp. Its immediate neighbours are the M 9083 a above it with 83 hp. Unladen weight within it ranges from 3,750 to 3,950 kg; here the M 9078 (a) sits at the bottom of that range with 3,750 kg. 13 Case Steyr models across 3 series are on record.
Data for the version built 1994–2003 · Data origin: Reference work (Wikipedia/Wikibooks) · sources
More machines from model year 1994
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Case Steyr M 9000 series – tractors M 9078(a), M 9083a, M 9086a and M 9094a from the Case-Steyr era, four-cylinder diesels from 57 to 69 kW with a uniform 4.16-litre displacement
The M 9000 series complemented the 9100s in the 1990s as the mid power class of the Case-Steyr collaboration. The leading M distinguishes this series from the neighbouring 9100 and 9200 types, the last two digits of each type designation rise with engine power, and the trailing letter a denotes four-wheel drive, as with Steyr's other large tractors of the period. All four models listed here use the same four-cylinder engine of 4.16 litres displacement at different power ratings.
Read on 3 more paragraphs
The register lists four versions here with 57.4 to 69.2 kW from four-cylinder diesel engines with a uniform 4,156 cm³ displacement. Rated speed lies between 2,100 and 2,300 rpm, unladen weight ranges from 3,750 to 3,950 kg with lengths from 3,980 to 4,215 mm, a width of 2,170 mm and a height of 2,550 mm. The engines are approved for diesel or rapeseed oil methyl ester.
In this mid power class, the M 9000 series targeted mixed farms between pure grassland use and light arable work and competed with comparable mid-range series from Case IH, Fendt and Deutz-Fahr.
When buying used, check the condition of the front axle differential and four-wheel steering, tightness of the hydraulic pump, wear on the clutch and gearbox, and on RME operation the condition of injectors and fuel lines. Parts are available through the CNH network for Steyr and Case IH.
Sources: SpecCodex register, model data: Case Steyr M 9000er-Baureihe, Steyr (CNH Industrial, Hersteller)
Technical data
Engine
| Fuel | Diesel/RMEcorrect |
|---|---|
| Power | 78 hp (57.4 kW)correct |
| Rated speed | 2,300 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 4,156 cm³correct |
| Bore | 105 mmcorrect |
| Stroke | 120 mmcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,980 mmcorrect |
|---|---|
| Width | 2,170 mmcorrect |
| Height | 2,550 mmcorrect |
| Wheelbase | 2,424 mmcorrect |
| Ground clearance | (A: 440) mmcorrect |
| Unladen weight | 3,750 kgcorrect |
Drivetrain and chassis
| Drive | rear- or four-wheel drivecorrect |
|---|---|
| Gearbox | 16V/8R, 16V/16R and 32V/16Rcorrect |
| Front tyres | 9.00-16 ASF (A: 14.9 R 24 AS)correct |
| Rear tyres | 18.4 R 34 AScorrect |
| Top speed | 30 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Frequently asked questions
Where this model stands
Power-to-weight ratio: 15.3 kW/t (57 kW / 3.8 t)
Power class: Universal (40–100 hp)
Stronger than 54% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
