Case MX200
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

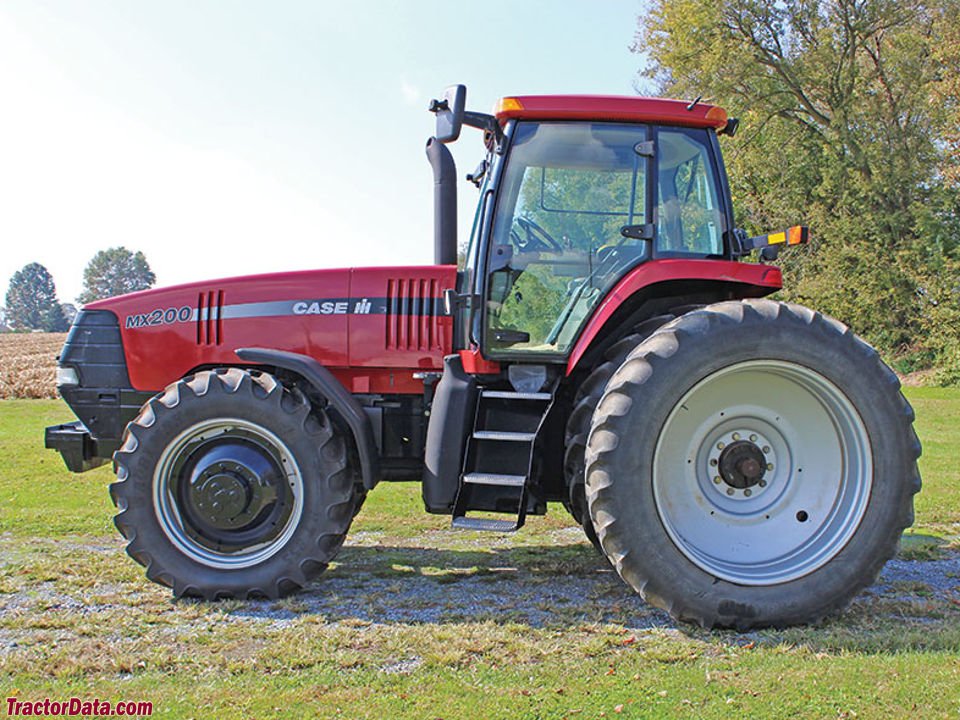

The MX200 is a tractor from the manufacturer Case, belonging to the tractor group. It was developed during the specified production period and is equipped with a 6‑cylinder engine with a displacement of 8,268 cm³. Key technical specifications include a power output of 204 hp (150 kW) at a rated speed of 2,000 rpm, a maximum torque of 894 Nm and a drawbar speed of 540/1,000 rpm. The transmission is available in 18 V/4 R and 24 V/6 R versions, the top speed is 40 km/h and the fuel tank holds 500 l. With a length of 5,640 mm, width of 3,048 mm, height of 3,214 mm and wheelbase of 3,006 mm, the empty weight is 8,924 kg and it falls into the Cat III lift category.
A power rating of 204 hp enables the tractor to pull heavy implements and handle demanding field tasks, while the high torque of 894 Nm provides strong acceleration and performance under load. The relatively high empty weight of 8,924 kg reduces ground pressure, which is advantageous on soft ground. The available gearbox options allow flexible adaptation to different working speeds, and the maximum speed of 40 km/h supports efficient travel between fields. The large 500 l fuel capacity minimizes refueling stops during extended operations.
Without direct sibling models in the series, the MX200 is suited for work that requires high pulling force, a large working width and long operating periods. Typical applications include heavy soil cultivation, large plows, extensive on‑farm transport tasks and operating heavy implements where high torque and a substantial fuel reserve are beneficial.
Case – other models: the collective page of US tractors outside the named ranges, from the drawbar-belt types such as the 10-20 through the 94 series to the 1200 Traction King, 13 to 324 kW
This page gathers the Case tractors the register could not assign to a named range – from the pre-war classics to the big four-wheel-drive tractors of the late 20th century. J. I. Case was founded in 1842 in Racine, Wisconsin, and has built tractors since the 1910s; in 1985 the farm-equipment division merged with International Harvester to form Case IH, and since 1999 the brand has belonged to CNH. On early types such as the 10-20, 12-25, 15-27, 18-32 and 22-40 the first number gives the standardised drawbar power and the second the belt power, as was customary for US tractors before 1930. The 1980s range with the ending 94 – such as the 1394, 1594, 1694, 2094, 2294, 2390 and 2670 – is known as the "94 series", the first digit giving roughly the size class. The 1200 Traction King of 1969 was one of the maker's first articulated four-wheel-drive tractors. The engines, per the register, come almost exclusively from Case's own production.
Read on 3 more paragraphs
The register lists here 197 versions with 13 to 323.6 kW or 10 to 440 hp from three- to six-cylinders of 2,040 to 14,945 cm³, unladen weights from 1,250 to 17,917 kg and torque from 289 to 972 Nm.
For decades, alongside John Deere and International Harvester, Case was one of the three big US tractor brands and was strongly represented in North America and Australia; the articulated big tractors of the Traction King and Steiger tradition competed for the prairie farms, while the smaller 94-series types served the standard segment of family farms.
On used tractors, originality and the condition of engine and belt pulley count on the pre-war classics, transmission, hydraulics and electrics on the 94-series types, articulation, four-wheel drive and tyres on the articulated big tractors, and rust on sheet metal and cab throughout; parts run through the Case IH and CNH network.
Sources: SpecCodex register, model data: Case (weitere Modelle), Case IH (CNH Industrial, Hersteller)
Technical data
Engine
| Power | 204 hp (150 kW)correct |
|---|---|
| Rated speed | 2,000 rpmcorrect |
| Torque | 894 Nmcorrect |
| Cylinders | 6correct |
| Displacement | 8,268 cm³correct |
Dimensions and weights
| Length | 5,640 mmcorrect |
|---|---|
| Width | 3,048 mmcorrect |
| Height | 3,214 mmcorrect |
| Wheelbase | 3,006 mmcorrect |
| Unladen weight | 8,924 kgcorrect |
Drivetrain and chassis
| Gearbox | 18 V/4 R and 24 V/6 Rcorrect |
|---|---|
| Top speed | 40 km/hcorrect |
Working data
| Fuel tank capacity | 500 lcorrect |
|---|
Other data
| Linkage category | Cat IIIcorrect |
|---|---|
| PTO speed | 540/1000 rpmcorrect |
Where this model stands
Power-to-weight ratio: 16.8 kW/t (150 kW / 8.9 t)
Power class: Heavy (> 180 hp)
Stronger than 91% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Case MX200 have?
The Case MX200 delivers 204 hp.
How much does the Case MX200 weigh?
The unladen weight is 8,924 kg.
What engine does the Case MX200 have?
6 cylinders, 8,268 cm³ displacement.
How fast does the Case MX200 go?
Top speed is 40 km/h.
What are the dimensions of the Case MX200?
5,640 mm × 3,048 mm × 3,214 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
