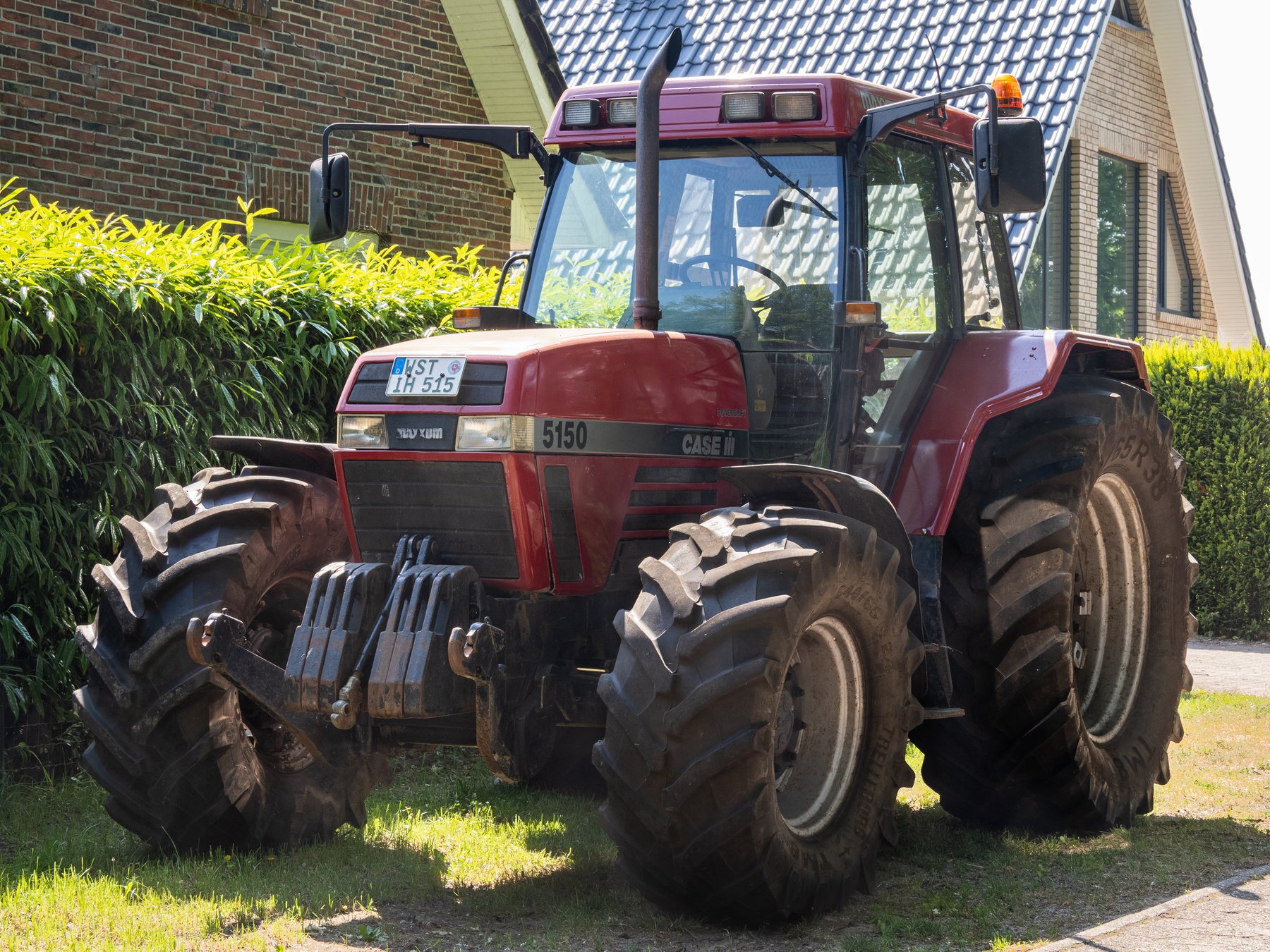

Case 5150 – specifications
Series: Other models
Build year not documented · Data origin: Official register, Reference work (Wikipedia/Wikibooks) · sources
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The Case 5150 is a tractor from the manufacturer Case, belonging to the tractor group. It is equipped with a 6‑cylinder engine with a displacement of 5 883 cm³. The machine measures 4 453 mm in length, 2 204 mm in width and 2 765 mm in height, with a wheelbase of 2 585 mm. Its curb weight is 5 360 kg and the fuel tank holds 170 l. The transmission is offered as 16 forward/12 reverse or 24 forward/20 reverse.
A rated speed of 2 200 U/min produces a torque of 500 Nm, providing strong pulling power for field operations. The nearly 6‑liter displacement supports stable output across the speed range. The weight of 5 360 kg gives sufficient ground pressure for good traction on heavy soils, while the compact dimensions aid maneuverability between rows. A large 170 l tank enables long work periods without frequent refuelling. The PTO speed of 540/1000 U/min allows operation of implements requiring variable speeds.
The Case 5150 is suited for typical field tasks where high pulling force and extended operating time are required. It is appropriate for pulling plows, seeders and other heavy implements that need strong torque and reliable traction. Selecting between the two gearbox options lets the tractor be adapted to different conditions, from flat arable land to demanding soil situations.
Case – other models: the collective page of US tractors outside the named ranges, from the drawbar-belt types such as the 10-20 through the 94 series to the 1200 Traction King, 13 to 324 kW
This page gathers the Case tractors the register could not assign to a named range – from the pre-war classics to the big four-wheel-drive tractors of the late 20th century. J. I. Case was founded in 1842 in Racine, Wisconsin, and has built tractors since the 1910s; in 1985 the farm-equipment division merged with International Harvester to form Case IH, and since 1999 the brand has belonged to CNH. On early types such as the 10-20, 12-25, 15-27, 18-32 and 22-40 the first number gives the standardised drawbar power and the second the belt power, as was customary for US tractors before 1930. The 1980s range with the ending 94 – such as the 1394, 1594, 1694, 2094, 2294, 2390 and 2670 – is known as the "94 series", the first digit giving roughly the size class. The 1200 Traction King of 1969 was one of the maker's first articulated four-wheel-drive tractors. The engines, per the register, come almost exclusively from Case's own production.
Read on 3 more paragraphs
The register lists here 197 versions with 13 to 323.6 kW or 10 to 440 hp from three- to six-cylinders of 2,040 to 14,945 cm³, unladen weights from 1,250 to 17,917 kg and torque from 289 to 972 Nm.
For decades, alongside John Deere and International Harvester, Case was one of the three big US tractor brands and was strongly represented in North America and Australia; the articulated big tractors of the Traction King and Steiger tradition competed for the prairie farms, while the smaller 94-series types served the standard segment of family farms.
On used tractors, originality and the condition of engine and belt pulley count on the pre-war classics, transmission, hydraulics and electrics on the 94-series types, articulation, four-wheel drive and tyres on the articulated big tractors, and rust on sheet metal and cab throughout; parts run through the Case IH and CNH network.
Sources: SpecCodex register, model data: Case (weitere Modelle), Case IH (CNH Industrial, Hersteller)
Technical data
Engine
| Rated speed | 2,200 rpmcorrect |
|---|---|
| Torque | 500 Nmcorrect |
| Cylinders | 6correct |
| Displacement | 5,883 cm³correct |
Dimensions and weights
| Length | 4,453 mmcorrect |
|---|---|
| Width | 2,204 mmcorrect |
| Height | 2,765 mmcorrect |
| Wheelbase | 2,585 mmcorrect |
| Unladen weight | 5,360 kgcorrect |
Drivetrain and chassis
| Gearbox | 16 V/12 R or 24 V/20 Rcorrect |
|---|
Working data
| Fuel tank capacity | 170 lcorrect |
|---|
Other data
| Linkage category | Cat IIcorrect |
|---|---|
| PTO speed | 540/1000 rpmcorrect |
Area: Machines
Frequently asked questions
How much does the Case 5150 weigh?
The unladen weight is 5,360 kg.
What engine does the Case 5150 have?
6 cylinders, 5,883 cm³ displacement.
What are the dimensions of the Case 5150?
4,453 mm × 2,204 mm × 2,765 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
