Case 900
Series: Other models

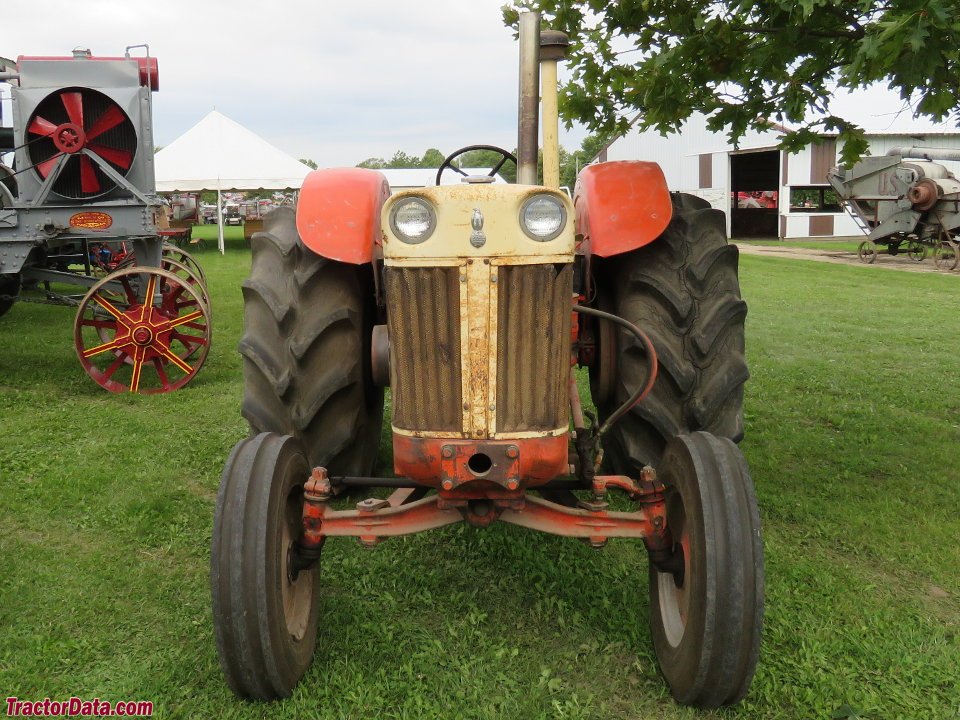

The Case 900 is a tractor built in the USA that belongs to the broad range of Case tractors without a specific series designation. It is part of the tractor group and was manufactured at the USA plant.
A six‑cylinder engine with a displacement of 6 178 cm³ produces 70 hp (51.5 kW) at a rated speed of 1 500 rpm. The empty weight is 3 867 kg and the dimensions are 3 581 mm in length, 2 065 mm in width and 1 550 mm in height with a wheelbase of 2 134 mm. Rear‑wheel drive is combined with a 6‑forward‑gear and 1‑reverse‑gear transmission, allowing a top speed of 25 km/h. The fuel tank capacity is 125 l, providing sufficient range for field work.
Tractors of this size and class are typically suited for tasks that require moderate drawbar power and compact dimensions, such as field cultivation, light plowing or short‑distance haulage of harvested crops. The six forward gears and rear‑wheel drive give a flexible response to varying working speeds.
Case – other models: the collective page of US tractors outside the named ranges, from the drawbar-belt types such as the 10-20 through the 94 series to the 1200 Traction King, 13 to 324 kW
This page gathers the Case tractors the register could not assign to a named range – from the pre-war classics to the big four-wheel-drive tractors of the late 20th century. J. I. Case was founded in 1842 in Racine, Wisconsin, and has built tractors since the 1910s; in 1985 the farm-equipment division merged with International Harvester to form Case IH, and since 1999 the brand has belonged to CNH. On early types such as the 10-20, 12-25, 15-27, 18-32 and 22-40 the first number gives the standardised drawbar power and the second the belt power, as was customary for US tractors before 1930. The 1980s range with the ending 94 – such as the 1394, 1594, 1694, 2094, 2294, 2390 and 2670 – is known as the "94 series", the first digit giving roughly the size class. The 1200 Traction King of 1969 was one of the maker's first articulated four-wheel-drive tractors. The engines, per the register, come almost exclusively from Case's own production.
Read on 3 more paragraphs
The register lists here 197 versions with 13 to 323.6 kW or 10 to 440 hp from three- to six-cylinders of 2,040 to 14,945 cm³, unladen weights from 1,250 to 17,917 kg and torque from 289 to 972 Nm.
For decades, alongside John Deere and International Harvester, Case was one of the three big US tractor brands and was strongly represented in North America and Australia; the articulated big tractors of the Traction King and Steiger tradition competed for the prairie farms, while the smaller 94-series types served the standard segment of family farms.
On used tractors, originality and the condition of engine and belt pulley count on the pre-war classics, transmission, hydraulics and electrics on the 94-series types, articulation, four-wheel drive and tyres on the articulated big tractors, and rust on sheet metal and cab throughout; parts run through the Case IH and CNH network.
Sources: SpecCodex register, model data: Case (weitere Modelle), Case IH (CNH Industrial, Hersteller)
Technical data
Engine
| Power | 70 hp (51.5 kW)correct |
|---|---|
| Rated speed | 1,500 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 6,178 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,581 mmcorrect |
|---|---|
| Width | 2,065 mmcorrect |
| Height | 1,550 mmcorrect |
| Wheelbase | 2,134 mmcorrect |
| Unladen weight | 3,867 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel driveWDcorrect |
|---|---|
| Gearbox | 6 V/1 Rcorrect |
| Forward gears | 6correct |
| Reverse gears | 1correct |
| Top speed | 25 km/hcorrect |
Working data
| Fuel tank capacity | 125 lcorrect |
|---|
Origin and approval
| Plant | USAcorrect |
|---|
Where this model stands
Power-to-weight ratio: 13.3 kW/t (52 kW / 3.9 t)
Power class: Universal (40–100 hp)
Stronger than 48% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Case 900 have?
The Case 900 delivers 70 hp.
How much does the Case 900 weigh?
The unladen weight is 3,867 kg.
What engine does the Case 900 have?
6 cylinders, 6,178 cm³ displacement.
How fast does the Case 900 go?
Top speed is 25 km/h.
What are the dimensions of the Case 900?
3,581 mm × 2,065 mm × 1,550 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
