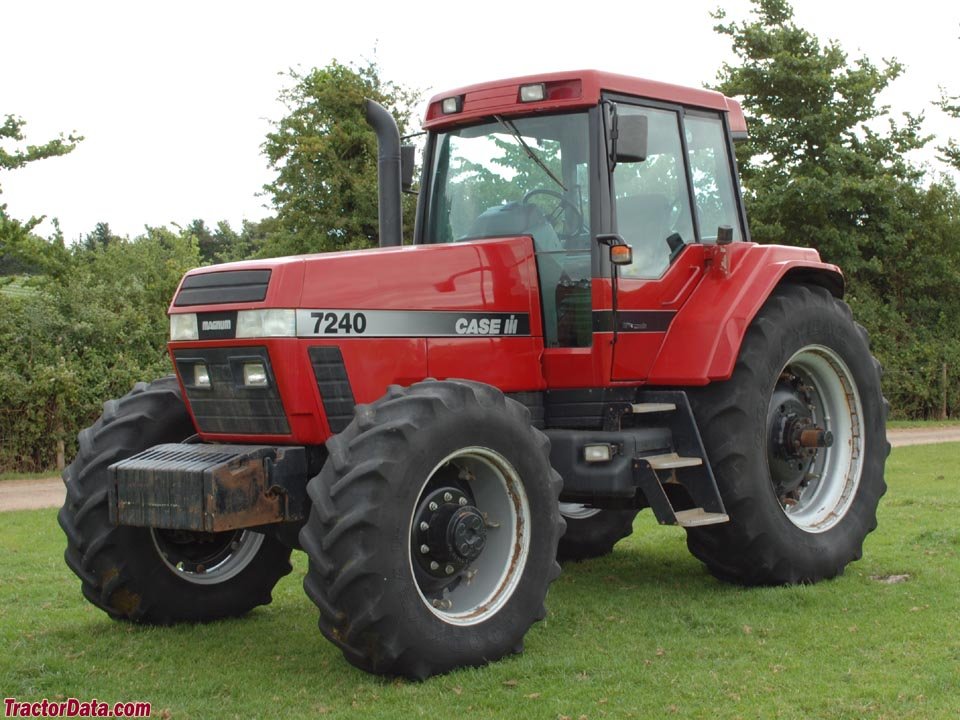

Case 7240
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The Case 7240 is part of the tractor group and was built by Case. It is a medium‑size agricultural machine delivering 234 hp (172.1 kW) at a rated speed of 2,200 rpm. The engine has six cylinders with a displacement of 8,268 cc and produces a maximum torque of 932 Nm. Dimensions are 5,090 mm in length, 3,048 mm in width and 3,077 mm in height, with a wheelbase of 3,006 mm and a curb weight of 8,097 kg. The transmission offers 24 forward and 6 reverse gears, the fuel tank holds 359 L and the machine falls into the Cat III lift category.
With 234 hp the 7240 can handle heavy pulling tasks such as operating plows or seeders under moderate to high soil conditions. The high torque of 932 Nm aids in starting heavy loads and maintaining steady draw force when field conditions vary. The relatively moderate weight of 8,097 kg results in a moderate ground pressure, preserving traction on soft ground, while the large 359 L tank enables long operating periods without frequent refuelling.
Tractors of this size class are typically suited for extensive field operations where both high draw power and sufficient range are required. They are commonly used for soil preparation, harvesting and transporting heavy loads, with the 24‑speed forward gearbox allowing flexible speed adjustments.
Case – other models: the collective page of US tractors outside the named ranges, from the drawbar-belt types such as the 10-20 through the 94 series to the 1200 Traction King, 13 to 324 kW
This page gathers the Case tractors the register could not assign to a named range – from the pre-war classics to the big four-wheel-drive tractors of the late 20th century. J. I. Case was founded in 1842 in Racine, Wisconsin, and has built tractors since the 1910s; in 1985 the farm-equipment division merged with International Harvester to form Case IH, and since 1999 the brand has belonged to CNH. On early types such as the 10-20, 12-25, 15-27, 18-32 and 22-40 the first number gives the standardised drawbar power and the second the belt power, as was customary for US tractors before 1930. The 1980s range with the ending 94 – such as the 1394, 1594, 1694, 2094, 2294, 2390 and 2670 – is known as the "94 series", the first digit giving roughly the size class. The 1200 Traction King of 1969 was one of the maker's first articulated four-wheel-drive tractors. The engines, per the register, come almost exclusively from Case's own production.
Read on 3 more paragraphs
The register lists here 197 versions with 13 to 323.6 kW or 10 to 440 hp from three- to six-cylinders of 2,040 to 14,945 cm³, unladen weights from 1,250 to 17,917 kg and torque from 289 to 972 Nm.
For decades, alongside John Deere and International Harvester, Case was one of the three big US tractor brands and was strongly represented in North America and Australia; the articulated big tractors of the Traction King and Steiger tradition competed for the prairie farms, while the smaller 94-series types served the standard segment of family farms.
On used tractors, originality and the condition of engine and belt pulley count on the pre-war classics, transmission, hydraulics and electrics on the 94-series types, articulation, four-wheel drive and tyres on the articulated big tractors, and rust on sheet metal and cab throughout; parts run through the Case IH and CNH network.
Sources: SpecCodex register, model data: Case (weitere Modelle), Case IH (CNH Industrial, Hersteller)
Technical data
Engine
| Power | 234 hp (172.1 kW)correct |
|---|---|
| Rated speed | 2,200 rpmcorrect |
| Torque | 932 Nmcorrect |
| Cylinders | 6correct |
| Displacement | 8,268 cm³correct |
Dimensions and weights
| Length | 5,090 mmcorrect |
|---|---|
| Width | 3,048 mmcorrect |
| Height | 3,077 mmcorrect |
| Wheelbase | 3,006 mmcorrect |
| Unladen weight | 8,097 kgcorrect |
Drivetrain and chassis
| Gearbox | 24 V/6 Rcorrect |
|---|
Working data
| Fuel tank capacity | 359 lcorrect |
|---|
Other data
| Linkage category | Cat IIIcorrect |
|---|
Where this model stands
Power-to-weight ratio: 21.3 kW/t (172 kW / 8.1 t)
Power class: Heavy (> 180 hp)
Stronger than 94% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Case 7240 have?
The Case 7240 delivers 234 hp.
How much does the Case 7240 weigh?
The unladen weight is 8,097 kg.
What engine does the Case 7240 have?
6 cylinders, 8,268 cm³ displacement.
What are the dimensions of the Case 7240?
5,090 mm × 3,048 mm × 3,077 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 14 individual figures for this model. They come from 2 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
