Case 7210
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

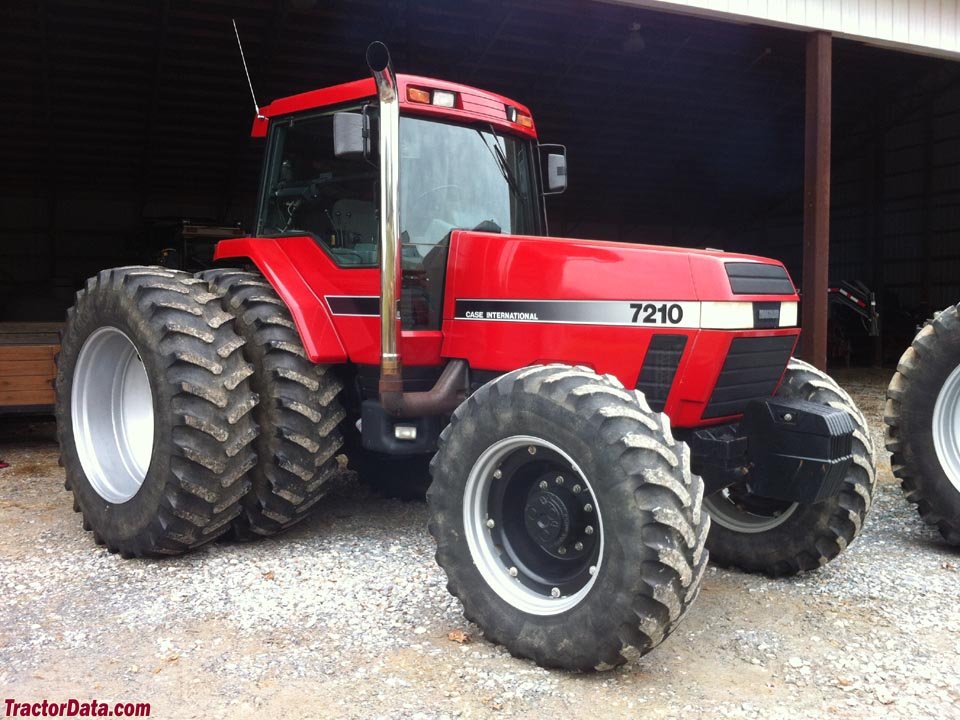

The Case 7210 is part of the tractor group and was built by Case. It is a model that does not belong to a specifically named series and originates from the era when Case produced tractors with various ending numbers. Key dimensions are 5,290 mm in length, 2,845 mm in width, 2,982 mm in height and a wheelbase of 3,006 mm. The curb weight is 7,525 kg and the fuel tank holds 360 l. The transmission provides 24 forward and 6 reverse gears.
The engine delivers 155 hp (114 kW) at a rated speed of 2,200 rpm and produces a maximum torque of 638 Nm, which is sufficient for heavy pulling tasks and lifting loads in the Cat III lifting‑device category. With six cylinders and a displacement of 8,268 cm³ it offers a broad power band, while the crankshaft speed is 540/1,000 rpm. High torque at low engine speeds enables efficient field work, and the 24‑speed gearbox gives flexibility for varied operating conditions.
Since no comparative data within the series are provided for the 7210, its position can only be described in general terms. Tractors of this size and power are typically suited for medium to large agricultural operations that require both pulling capability and the ability to run heavy implements. The combination of a robust engine, extensive gearbox and large fuel capacity makes it appropriate for prolonged field tasks and transporting heavy loads.
Case – other models: the collective page of US tractors outside the named ranges, from the drawbar-belt types such as the 10-20 through the 94 series to the 1200 Traction King, 13 to 324 kW
This page gathers the Case tractors the register could not assign to a named range – from the pre-war classics to the big four-wheel-drive tractors of the late 20th century. J. I. Case was founded in 1842 in Racine, Wisconsin, and has built tractors since the 1910s; in 1985 the farm-equipment division merged with International Harvester to form Case IH, and since 1999 the brand has belonged to CNH. On early types such as the 10-20, 12-25, 15-27, 18-32 and 22-40 the first number gives the standardised drawbar power and the second the belt power, as was customary for US tractors before 1930. The 1980s range with the ending 94 – such as the 1394, 1594, 1694, 2094, 2294, 2390 and 2670 – is known as the "94 series", the first digit giving roughly the size class. The 1200 Traction King of 1969 was one of the maker's first articulated four-wheel-drive tractors. The engines, per the register, come almost exclusively from Case's own production.
Read on 3 more paragraphs
The register lists here 197 versions with 13 to 323.6 kW or 10 to 440 hp from three- to six-cylinders of 2,040 to 14,945 cm³, unladen weights from 1,250 to 17,917 kg and torque from 289 to 972 Nm.
For decades, alongside John Deere and International Harvester, Case was one of the three big US tractor brands and was strongly represented in North America and Australia; the articulated big tractors of the Traction King and Steiger tradition competed for the prairie farms, while the smaller 94-series types served the standard segment of family farms.
On used tractors, originality and the condition of engine and belt pulley count on the pre-war classics, transmission, hydraulics and electrics on the 94-series types, articulation, four-wheel drive and tyres on the articulated big tractors, and rust on sheet metal and cab throughout; parts run through the Case IH and CNH network.
Sources: SpecCodex register, model data: Case (weitere Modelle), Case IH (CNH Industrial, Hersteller)
Technical data
Engine
| Power | 155 hp (114 kW)correct |
|---|---|
| Rated speed | 2,200 rpmcorrect |
| Torque | 638 Nmcorrect |
| Cylinders | 6correct |
| Displacement | 8,268 cm³correct |
Dimensions and weights
| Length | 5,290 mmcorrect |
|---|---|
| Width | 2,845 mmcorrect |
| Height | 2,982 mmcorrect |
| Wheelbase | 3,006 mmcorrect |
| Unladen weight | 7,525 kgcorrect |
Drivetrain and chassis
| Gearbox | 24 V/6 Rcorrect |
|---|
Working data
| Fuel tank capacity | 360 lcorrect |
|---|
Other data
| Linkage category | Cat IIIcorrect |
|---|---|
| PTO speed | 540/1000 rpmcorrect |
Where this model stands
Power-to-weight ratio: 15.1 kW/t (114 kW / 7.5 t)
Power class: Large (100–180 hp)
Stronger than 84% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Case 7210 have?
The Case 7210 delivers 155 hp.
How much does the Case 7210 weigh?
The unladen weight is 7,525 kg.
What engine does the Case 7210 have?
6 cylinders, 8,268 cm³ displacement.
What are the dimensions of the Case 7210?
5,290 mm × 2,845 mm × 2,982 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
