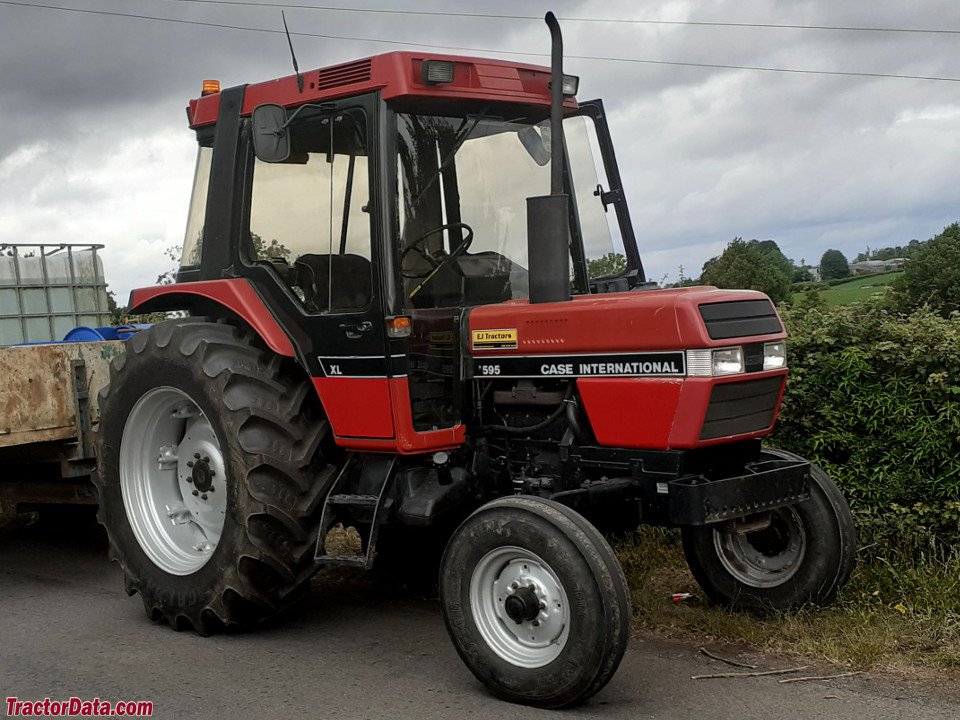

Case 595 (DT)
Built: 1990–1993 · Series: 95 er-Baureihe
More machines from model year 1990
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Case International 95 series (1986–1993) – the David Brown heirs from Meltham: 495 to 995, the final digits 95 as series, the first digit as size class, DT for four-wheel drive
The 95 series comes from Meltham in Yorkshire, the David Brown plant Case had taken over in 1972: after the merger of Case and International Harvester in 1985 the David Brown tractors continued in red as Case International, and the 95s were the range with which the brand replaced the 94s – until Case IH closed the Meltham plant in 1988 and moved production to Doncaster. The type logic: the final digits 95 mark the series, the first digit orders the size in ascending order – 495 about 50 hp, 595 about 60, 695 about 70, 795 about 75, 895 about 85, 995 about 90 hp – DT four-wheel drive. The engines are David Brown's own three- and four-cylinder diesels of 2.9 to 4.4 litres at 2,180 to 2,400 rpm, the transmissions David Brown's synchromesh gearboxes with the Hydra-Shift powershift step in the larger models; the hydraulics carried David Brown's Selectamatic system.
Read on 3 more paragraphs
The register lists 6 versions with 38.2 to 66.2 kW from three- and four-cylinders of 2,933 to 4,389 cm³, torque from 182 to 299 Nm, unladen weights from 2,358 to 3,113 kg, lengths from 3,454 to 3,845 mm, widths from 1,676 to 1,981 mm and heights from 2,375 to 2,670 mm.
The 95s are still at work on small farms in Britain and Ireland today and are the last tractors with David Brown technology; the successors 3200 and 4200 from Doncaster came with IH engines from Neuss.
On used tractors, operating hours, engine condition and injection pump, clutch, gearbox and Hydra-Shift, Selectamatic hydraulics, four-wheel-drive clutch on DT models and sheet metal count; parts run through Case IH and David Brown specialists in Britain.
Sources: SpecCodex register, model data: Case International 95er-Baureihe, Case IH (manufacturer)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 60 hp (44.1 kW)correct |
| Rated speed | 2,300 rpmcorrect |
| Torque | 220 Nmcorrect |
| Speed at max. torque | 1,400 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 3,382 cm³correct |
| Bore | 98.4 mmcorrect |
| Stroke | 111.1 mmcorrect |
| Compression ratio | 15correct |
| Injection pressure | 225 barcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,607 mmcorrect |
|---|---|
| Width | 1,905 mmcorrect |
| Height | 2,451 mmcorrect |
| Wheelbase | 2,146 mmcorrect |
| Ground clearance | 561 mmcorrect |
| Unladen weight | 2,921 kgcorrect |
Drivetrain and chassis
| Drive | rear- or four-wheel drivecorrect |
|---|---|
| Gearbox | 8 V/4 R, 16 V/8 R and 8 V/8 Rcorrect |
| Front tyres | 7.50-16 ASF (DT: 12.4 R 24 AS)correct |
| Rear tyres | 14.9 R 28 (DT: 13.6 R 38 AS)correct |
| Top speed | 30 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 15.1 kW/t (44 kW / 2.9 t)
Power class: Universal (40–100 hp)
Stronger than 41% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Case 595 (DT) have?
The Case 595 (DT) delivers 60 hp.
How much does the Case 595 (DT) weigh?
The unladen weight is 2,921 kg.
What engine does the Case 595 (DT) have?
4 cylinders, 3,382 cm³ displacement, Diesel.
How fast does the Case 595 (DT) go?
Top speed is 30 km/h.
What are the dimensions of the Case 595 (DT)?
3,607 mm × 1,905 mm × 2,451 mm.
When was the Case 595 (DT) built?
Production years: 1990–1993.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 25 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
