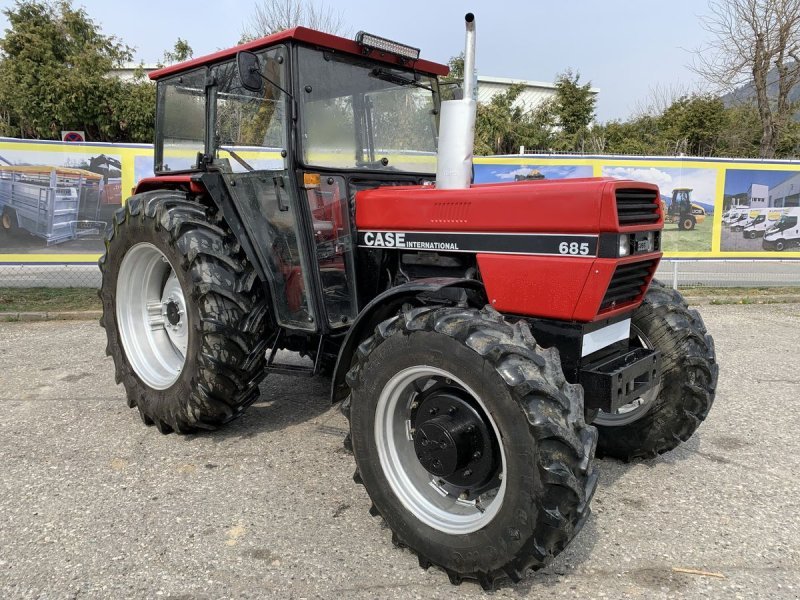

Case 685 (DT)
Built: 1985–1990 · Series: 85 er-Baureihe
More machines from model year 1985
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Case International 85 series (1985–1990) – the Doncaster tractors with David Brown heritage: 485 to 885, the final digits 85 as series, the first digit as size class, DT for four-wheel drive
The 85 series was the first range to come to market in red as Case International after the merger of Case and International Harvester in 1985 – the successors to the David Brown 94 range from Meltham and the IH 84 range from Doncaster, merged into one range Case IH built in Doncaster, England. The type logic: the final digits 85 mark the series, the first digit orders the size in ascending order – 485 about 50 hp, 585 about 60, 685 about 70, 785 about 75, 885 about 85 hp – DT four-wheel drive. The engines are the David Brown three- and four-cylinders of 2.9 to 4.4 litres at 2,180 to 2,400 rpm that the 85s took over from the 94s, with the gearboxes with Hydra-Shift powershift step and the Synchro shuttle; the cab was David Brown's Q-Cab, regarded as quiet.
Read on 3 more paragraphs
The register lists 5 versions with 38.2 to 61 kW from three- and four-cylinders of 2,933 to 4,389 cm³, torque from 164 to 296 Nm, unladen weights from 2,358 to 3,014 kg, lengths from 3,180 to 3,747 mm, widths from 1,760 to 1,870 mm and heights from 2,310 to 2,649 mm.
The 85s are numerous in the fleets of Britain, Ireland, Scandinavia and Germany and the last tractors with David Brown engine; in 1990 the 95s followed and afterwards the 3200s and 4200s with IH engines from Neuss.
On used tractors, operating hours, engine condition and injection pump, clutch, gearbox and Hydra-Shift, hydraulics, four-wheel-drive clutch on DT models, cab and sheet metal count; parts run through Case IH and David Brown specialists.
Sources: SpecCodex register, model data: Case International 85er-Baureihe, Case IH (manufacturer)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 69 hp (50.7 kW)correct |
| Rated speed | 2,400 rpmcorrect |
| Torque | 238 Nmcorrect |
| Speed at max. torque | 1,600 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 3,913 cm³correct |
| Bore | 98.4 mmcorrect |
| Stroke | 128.5 mmcorrect |
| Compression ratio | 16correct |
| Injection pressure | 225 barcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,597 mmcorrect |
|---|---|
| Width | 1,840 mmcorrect |
| Height | 2,451 mmcorrect |
| Wheelbase | 2,146 mmcorrect |
| Unladen weight | 2,647 kgcorrect |
Drivetrain and chassis
| Drive | rear- or four-wheel drivecorrect |
|---|---|
| Gearbox | 8 V/4 R or 16 V/8 Rcorrect |
| Front tyres | 7.50-16 ASF (DT: 12.4 R 24 AS)correct |
| Rear tyres | 16.9 R 30 (DT: 16.9 R 34 AS)correct |
| Top speed | 30 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 19.2 kW/t (51 kW / 2.6 t)
Power class: Universal (40–100 hp)
Stronger than 47% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Case 685 (DT) have?
The Case 685 (DT) delivers 69 hp.
How much does the Case 685 (DT) weigh?
The unladen weight is 2,647 kg.
What engine does the Case 685 (DT) have?
4 cylinders, 3,913 cm³ displacement, Diesel.
How fast does the Case 685 (DT) go?
Top speed is 30 km/h.
What are the dimensions of the Case 685 (DT)?
3,597 mm × 1,840 mm × 2,451 mm.
When was the Case 685 (DT) built?
Production years: 1985–1990.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
