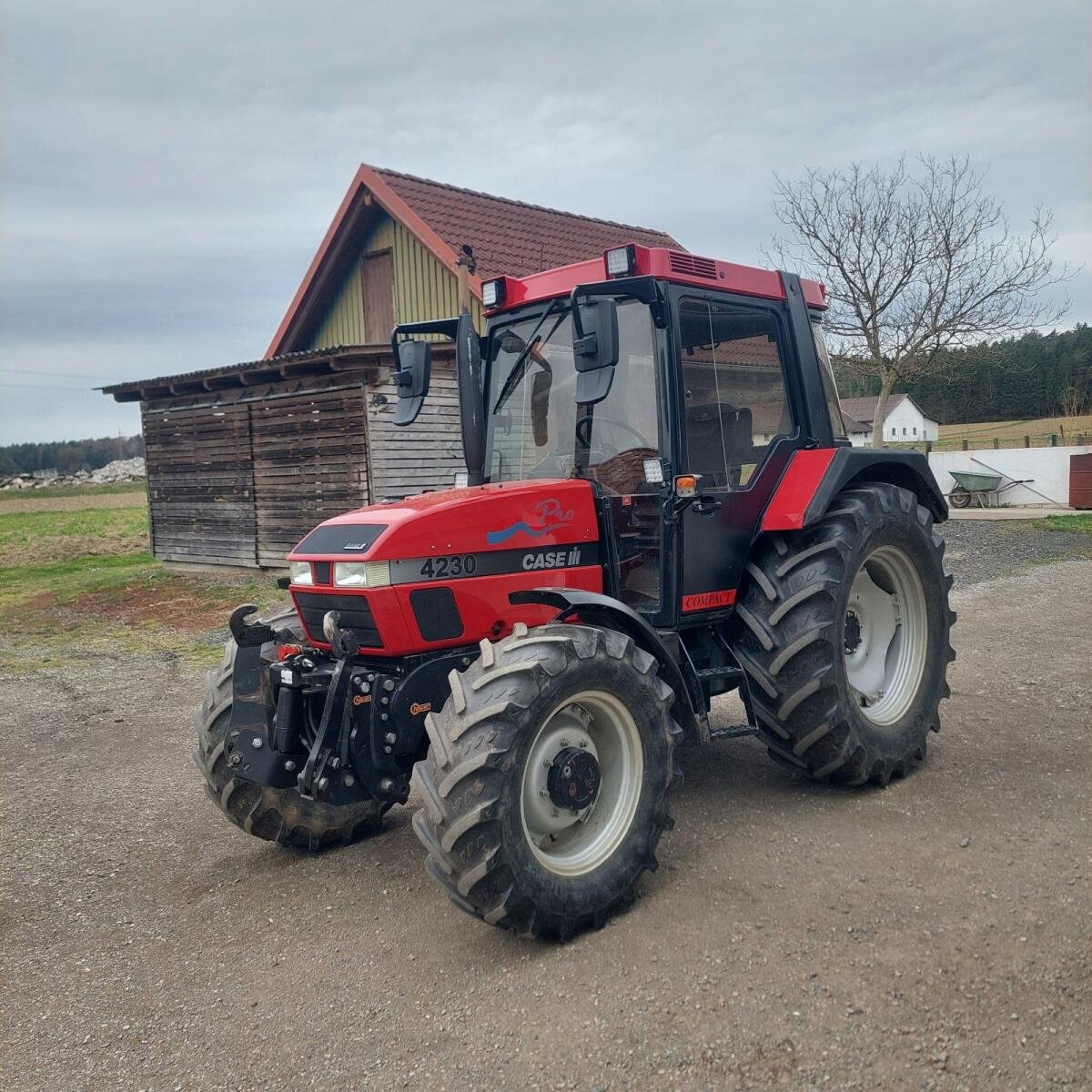

Case 4230 (DT)

Built: 1993–1998 · Series: 4200 er-Serie

More machines from model year 1993

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The 4200er series from Case includes the 4230 (DT). Production: 1993–1998. The engine delivers 82 hp (60.3 kW), has 4 cylinders, with a displacement of 4,389 cm³. Torque is 289 Nm. Rated speed is 2,400 rpm. The machine is 3,510 mm long, 2,080 mm wide and 2,620 mm high. The unladen weight is 3,020 kg. The wheelbase measures 2,253 mm. Top speed is 30 km/h. Transmission: 16 V/8 R, 15 V/8 R and 8 V/8 R. The engine is water-cooled. Tyres: front 7.50-16 ASF (DT: 13.6 R 24 AS), rear 16.9 R 34 AS. The fuel is diesel. The bore measures 100 mm. The stroke is 139.7 mm. The compression ratio is 15.1:1. Maximum torque is reached at 1,300 rpm. Injection pressure is 225 bar. The 4200 er-Serie series covers 3 models. Rated output within it ranges from 70 to 82 hp; the 4230 (DT) sits at the top of that range with 82 hp. Its immediate neighbours are the 4220 (DT) below it with 77 hp. Unladen weight within it ranges from 2,998 to 3,099 kg; here the 4230 (DT) sits in the lower part of that range with 3,020 kg. 636 Case models across 32 series are on record.

Case International 4200 series, types 4210 DT to 4230 DT – four-wheel-drive four-cylinder diesels from Doncaster: 51.5 to 60.3 kW, 2,998 to 3,099 kg, 3,909 to 4,389 cm³

Case International was the brand name under which Case and International Harvester appeared jointly after their 1985 merger until the mid-1990s, before the brand became Case IH. The 4200 series with the types 4210, 4220 and 4230 covered the mid power class; the designation DT denotes the four-wheel-drive version. The joint brand was meant to signal to customers that the long-established sales and service networks of both companies were retained after the merger.

Read on 3 more paragraphs

The register lists 3 versions with 51.5 to 60.3 kW from four-cylinder diesel engines of 3,909 to 4,389 cm³ displacement, torque of 250 to 289 Nm at 2,300 to 2,400 rpm. Unladen weights range from 2,998 to 3,099 kg, lengths from 3,510 to 3,759 mm, widths from 1,854 to 2,080 mm and heights from 2,620 to 2,666 mm.

As general-purpose tractors with four-wheel drive, the 4200 series was designed for mid-sized arable and grassland farms and competed directly with comparable series from Ford, Massey Ferguson and Deutz-Fahr. A synchronised shuttle shift and a cab with reduced noise levels were among the improvements that set the series apart from older Case models.

When buying used, what counts is the operating hours and condition of the four-cylinder diesel, clutch and gearbox, the condition of the four-wheel drive and front axle, and the tightness of the hydraulics; parts now run through the Case IH dealer network.

Sources: SpecCodex register, model data: Case International 4200er-Serie, Case IH (CNH Industrial, Nachfolgemarke)

Technical data

Engine

Fuel	dieselcorrect
Power	82 hp (60.3 kW)correct
Rated speed	2,400 rpmcorrect
Torque	289 Nmcorrect
Speed at max. torque	1,300 rpmcorrect
Cylinders	4correct
Displacement	4,389 cm³correct
Bore	100 mmcorrect
Stroke	139.7 mmcorrect
Compression ratio	15.1correct
Injection pressure	225 barcorrect
Cooling	water-cooledcorrect

Dimensions and weights

Length	3,510 mmcorrect
Width	2,080 mmcorrect
Height	2,620 mmcorrect
Wheelbase	2,253 mmcorrect
Ground clearance	(DT: 360) mmcorrect
Unladen weight	3,020 kgcorrect

Drivetrain and chassis

Drive	rear- or four-wheel drivecorrect
Gearbox	16 V/8 R, 15 V/8 R and 8 V/8 Rcorrect
Front tyres	7.50-16 ASF (DT: 13.6 R 24 AS)correct
Rear tyres	16.9 R 34 AScorrect
Top speed	30 km/hcorrect

Where this model stands

Power-to-weight ratio: 20 kW/t (60 kW / 3 t)

Power class: Universal (40–100 hp)

Stronger than 57% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Case 4230 (DT) have?

The Case 4230 (DT) delivers 82 hp.

How much does the Case 4230 (DT) weigh?

The unladen weight is 3,020 kg.

What engine does the Case 4230 (DT) have?

4 cylinders, 4,389 cm³ displacement, Diesel.

How fast does the Case 4230 (DT) go?

Top speed is 30 km/h.

What are the dimensions of the Case 4230 (DT)?

3,510 mm × 2,080 mm × 2,620 mm.

When was the Case 4230 (DT) built?

Production years: 1993–1998.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
