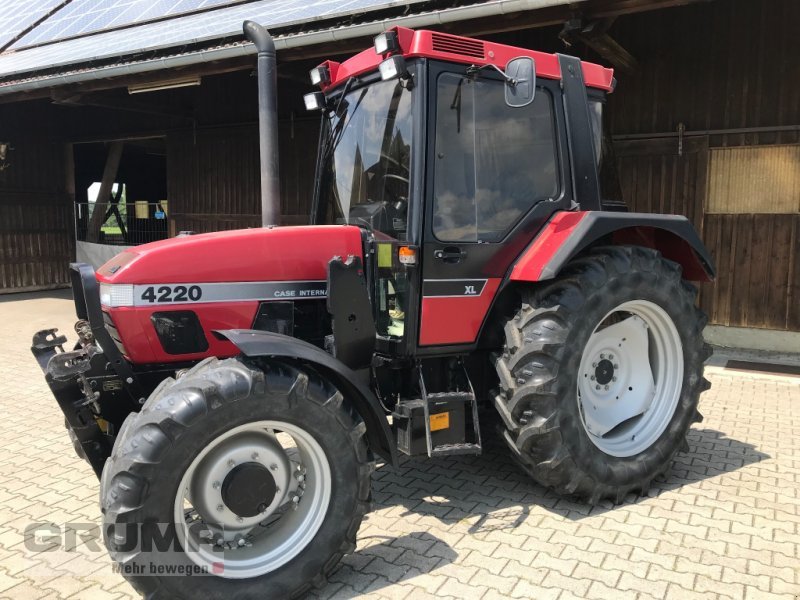

Case 4220 (DT)
Built: 1993–1998 · Series: 4200 er-Serie
More machines from model year 1993
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Case International 4200 series, types 4210 DT to 4230 DT – four-wheel-drive four-cylinder diesels from Doncaster: 51.5 to 60.3 kW, 2,998 to 3,099 kg, 3,909 to 4,389 cm³
Case International was the brand name under which Case and International Harvester appeared jointly after their 1985 merger until the mid-1990s, before the brand became Case IH. The 4200 series with the types 4210, 4220 and 4230 covered the mid power class; the designation DT denotes the four-wheel-drive version. The joint brand was meant to signal to customers that the long-established sales and service networks of both companies were retained after the merger.
Read on 3 more paragraphs
The register lists 3 versions with 51.5 to 60.3 kW from four-cylinder diesel engines of 3,909 to 4,389 cm³ displacement, torque of 250 to 289 Nm at 2,300 to 2,400 rpm. Unladen weights range from 2,998 to 3,099 kg, lengths from 3,510 to 3,759 mm, widths from 1,854 to 2,080 mm and heights from 2,620 to 2,666 mm.
As general-purpose tractors with four-wheel drive, the 4200 series was designed for mid-sized arable and grassland farms and competed directly with comparable series from Ford, Massey Ferguson and Deutz-Fahr. A synchronised shuttle shift and a cab with reduced noise levels were among the improvements that set the series apart from older Case models.
When buying used, what counts is the operating hours and condition of the four-cylinder diesel, clutch and gearbox, the condition of the four-wheel drive and front axle, and the tightness of the hydraulics; parts now run through the Case IH dealer network.
Sources: SpecCodex register, model data: Case International 4200er-Serie, Case IH (CNH Industrial, Nachfolgemarke)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 77 hp (56.6 kW)correct |
| Rated speed | 2,300 rpmcorrect |
| Torque | 256 Nmcorrect |
| Speed at max. torque | 1,600 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 4,037 cm³correct |
| Bore | 100 mmcorrect |
| Stroke | 128.5 mmcorrect |
| Compression ratio | 16correct |
| Injection pressure | 225 barcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,749 mmcorrect |
|---|---|
| Width | 1,854 mmcorrect |
| Height | 2,649 mmcorrect |
| Wheelbase | 2,235 mmcorrect |
| Unladen weight | 2,998 kgcorrect |
Drivetrain and chassis
| Drive | rear- or four-wheel drivecorrect |
|---|---|
| Gearbox | 8 V/4 R, 16 V/8 R and 8 V/8 Rcorrect |
| Front tyres | 10.00-16 ASF (DT: 12.4 R 24 AS)correct |
| Rear tyres | 16.9 R 34 AScorrect |
| Top speed | 35 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 18.9 kW/t (57 kW / 3 t)
Power class: Universal (40–100 hp)
Stronger than 53% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Case 4220 (DT) have?
The Case 4220 (DT) delivers 77 hp.
How much does the Case 4220 (DT) weigh?
The unladen weight is 2,998 kg.
What engine does the Case 4220 (DT) have?
4 cylinders, 4,037 cm³ displacement, Diesel.
How fast does the Case 4220 (DT) go?
Top speed is 35 km/h.
What are the dimensions of the Case 4220 (DT)?
3,749 mm × 1,854 mm × 2,649 mm.
When was the Case 4220 (DT) built?
Production years: 1993–1998.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 24 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
