Start › Tractors › Case IH › Farmall 35B

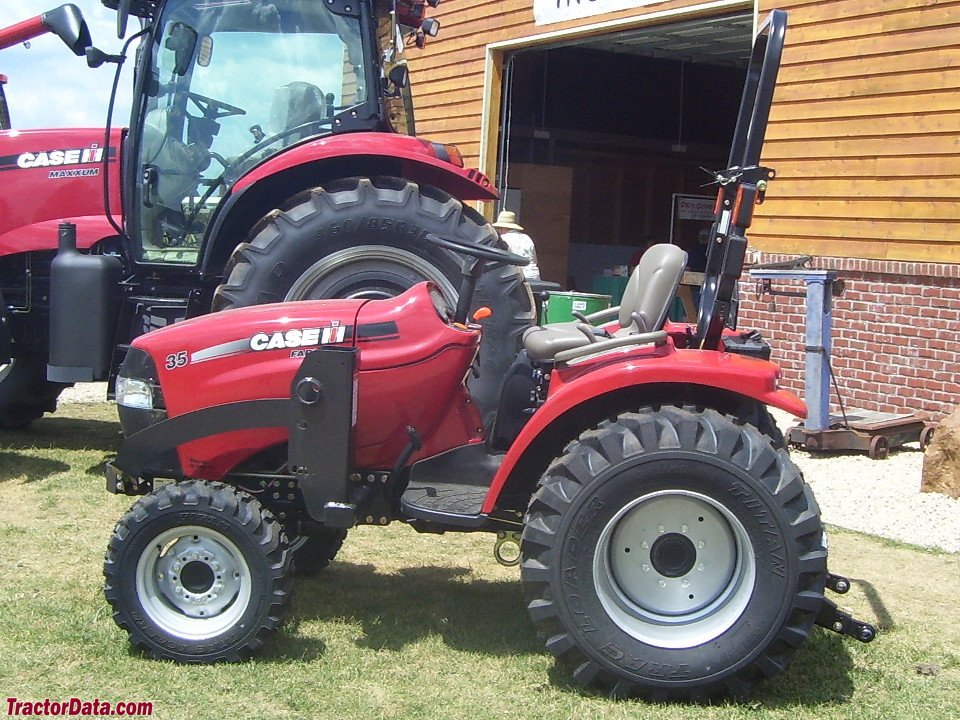

Case IH Farmall 35B

Built: 2011 · Series: Farmall

← Predecessor: Farmall 35

More machines from model year 2011

Source: https://www.tractordata.com/farm-tractors/005/7/5/5750-casei

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Farmall 35B from Case IH is part of the Farmall series. Production: 2011. The engine delivers 38 hp (28 kW), has 4 cylinders. The engine comes from Mitsubishi. Rated speed is 2,600 rpm. Lifting capacity is 650 kg. Transmission: synchromesh gearbox Shuttle Shift (SSS). The engine is water-cooled. The model was built in South Korea. The fuel is diesel. The engine fitted is the S4L. The gearbox offers 12 forward gears. There are also 12 reverse gears. The linkage is category I. Its predecessor was the Case IH Farmall 35. The PTO runs at 540 rpm. The Farmall series covers 122 models. Rated output within it ranges from 28 to 95 hp; the Farmall 35B sits at the bottom of that range with 38 hp. Its immediate neighbours are the Farmall 35A below it with 36 hp and the Farmall 40 CVT above it with 40 hp. Lifting capacity within it ranges from 650 to 2,605 kg; here the Farmall 35B sits at the bottom of that range with 650 kg. 1222 Case IH models across 76 series are on record.

Case IH Farmall – A, C and U: the compact utility class and what the letters mean

At Case IH, Farmall is today the family of compact and mid-size utility tractors – the name goes back to International Harvester's Farmall line, which shaped the row-crop tractor from the 1920s onward. Today's Farmalls share only the name with the historic models; they span the range from a yard-loader substitute to an all-rounder for grassland, municipal work and specialty crops.

Read on 3 more paragraphs

The number in the name follows power, the letter the trim level: A marks the simply equipped entry version, C the more comfortable version with a better cab and hydraulics, U the utility class with more transmission options; suffixes such as PRO or EP denote equipment packages, Flatdeck a flat platform without a transmission tunnel. The engines come from within the group (FPT Industrial), mostly with three or four cylinders.

In the register the models run from 21 to 86 kW with 1,501 to 4,502 cm³ of displacement; PTO output lies between 25 and 90 hp, the rear linkage lifts 650 to 3,266 kg, and unladen weight ranges from about 1,154 to 4,740 kg. That spread shows Farmall is not a single series but a class with several size steps.

Buyers of used machines should check the trim level carefully – an A and a C with the same number differ clearly in transmission, hydraulic capacity and cab – and look at the service history of the exhaust aftertreatment on younger model years.

Sources: SpecCodex register, model data: Case IH Farmall, Case IH Traktorenprogramm (manufacturer), Farmall (Wikipedia)

Technical data

Engine

Engine makeMitsubishicorrect
Engine modelS4Lcorrect
Fueldieselcorrect
Power38 hp (28 kW)correct
Rated speed2,600 rpmcorrect
Cylinders4correct
Displacement107 cu incorrect
Coolingwater-cooledcorrect

Dimensions and weights

Wheelbase66 in (1676.4 mm)correct
Unladen weight3200 lbs (1451.5 kg)correct

Drivetrain and chassis

Driveselectable four-wheel drivecorrect
Gearboxsynchromesh gearbox Shuttle Shift (SSS)correct
Forward gears12correct
Reverse gears12correct

Working data

Lifting capacity650 kgcorrect
Lifting capacity1433 lbs (650 kg)correct
Fuel tank capacity8.7 galcorrect

Origin and approval

PlantSouth Koreacorrect

Other data

Linkage categoryCat Icorrect
PTO speed540correct
PredecessorCase IH Farmall 35correct

More machines with this engine (Mitsubishi S4L, 4)

Frequently asked questions

How much power does the Case IH Farmall 35B have?

The Case IH Farmall 35B delivers 38 hp.

What engine does the Case IH Farmall 35B have?

4 cylinders, Diesel.

How much does the rear linkage of the Case IH Farmall 35B lift?

The rear linkage lifts 650 kg.

When was the Case IH Farmall 35B built?

Production years: 2011.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Shift the gearbox cold and warm — jumps only show up at temperature.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
