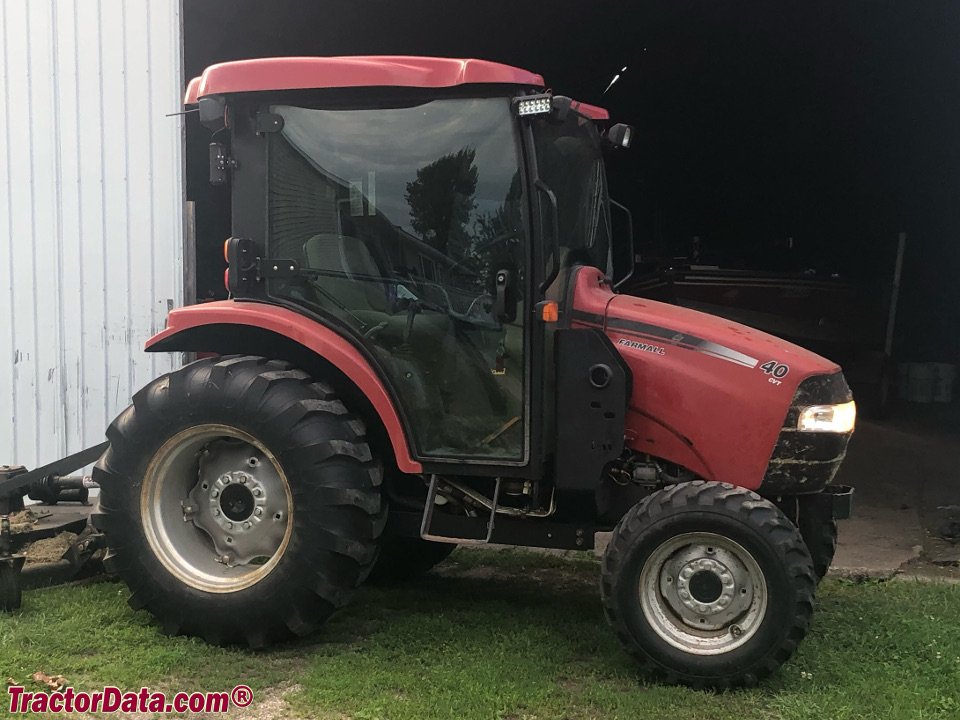

Case IH Farmall 40 CVT
Built: 2008-2011 · Series: Farmall
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The Case IH Farmall 40 CVT is a tractor from the Farmall series, built in 2008-2011. The engine produces 30 kW.
It runs with MFWD.
It runs on diesel; the engine is water-cooled. The predecessor was the Case IH DX40. Within the range, rated power spans from 21 to 86 kW; with 30 kW, the Farmall 40 CVT sits in the lower third. Directly alongside are the Farmall 40 with 29.8 kW below and the Farmall 40B with 30.6 kW above.
Technical data
Engine
| Engine make | Shibauracorrect |
|---|---|
| Fuel | dieselcorrect |
| Power | 40 hp (30 kW)correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Wheelbase | 73.5 in (1866,9 mm)correct |
|---|---|
| Unladen weight | 3, 252 to 4, 402 lbscorrect |
Drivetrain and chassis
| Drive | selectable four-wheel drivecorrect |
|---|
Working data
| Lifting capacity | 2,330 lbs (1056,9 kg)correct |
|---|---|
| Fuel tank capacity | 13 galcorrect |
| PTO speed | 540correct |
| Linkage category | Cat Icorrect |
Origin and approval
| Predecessor | Case IH DX40correct |
|---|
Frequently asked questions
How much power does the Case IH Farmall 40 CVT have?
The Case IH Farmall 40 CVT delivers 40 hp.
When was the Case IH Farmall 40 CVT built?
Production years: 2008-2011.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
