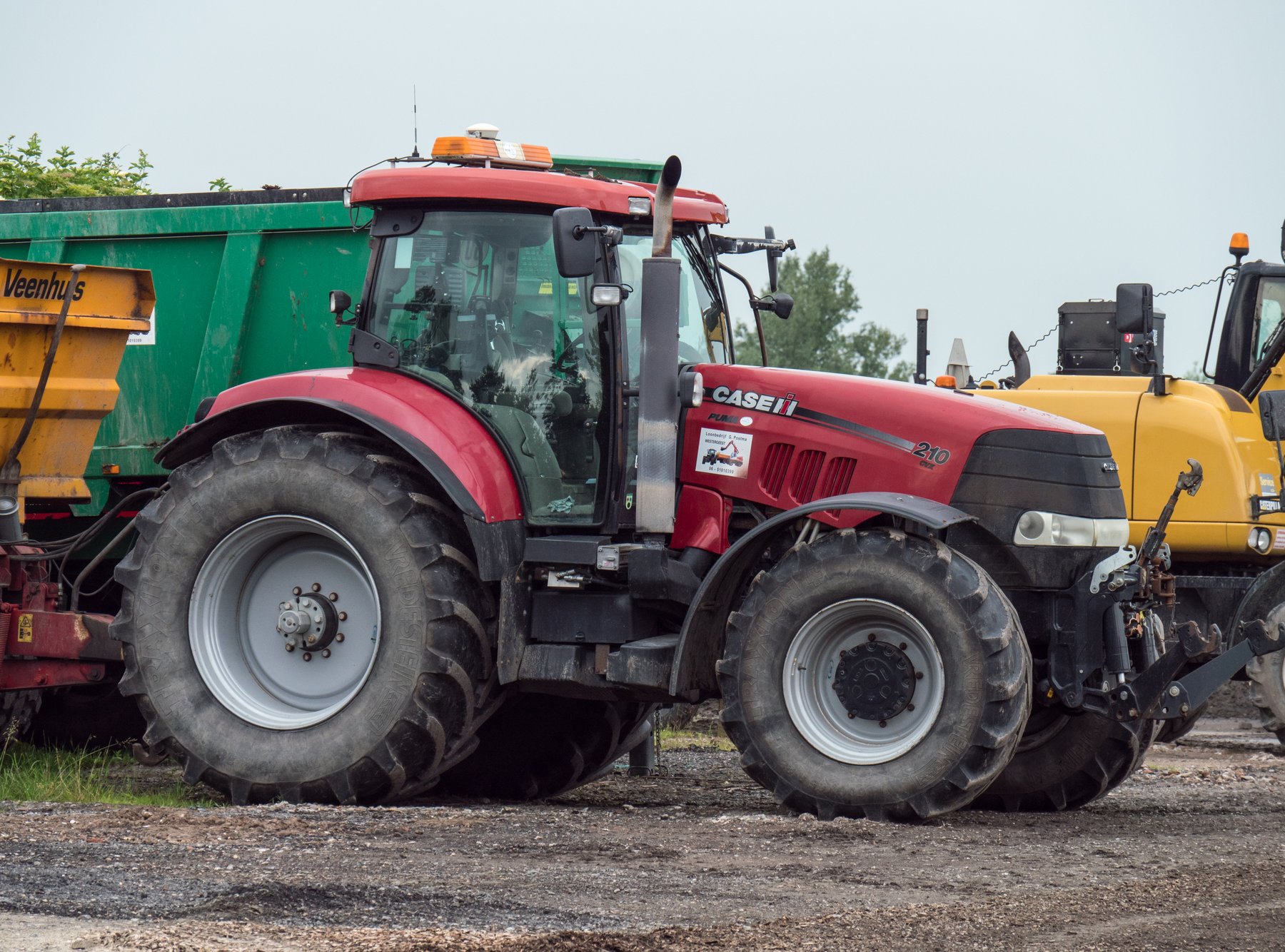

Case IH CVX 210 – specifications
Series: CVX
Build year not documented · Data origin: Reference work (Wikipedia/Wikibooks), Directory data · sources
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The Case IH CVX 210 is a tractor with a continuously variable transmission and the top model of the first CVX generation. Case IH introduced the CVX range in 2000; at its core it matched Steyr's CVT range. The first models, CVX 120 to CVX 170, had 6,6 liter Sisu engines; the CVX 210 sits above them and, according to the manufacturer, delivers over 210 hp when power management is active.
The data shows 210 PS (160 kW). The engine is water-cooled, and the four-wheel drive is switchable (MFWD). As neighbors in the ranking the database lists the CVX1195 at 159 kW and the MX 200-4X4/301 at 162 kW.
The CVX1195 appeared in 2005 as the new top model of the range with 195 hp and thereby took over from the CVX 210 at the top. For buyers the continuously variable transmission meant that travel speed could be adjusted without shift pauses, which counts for transport and baling work under changing load.
Case IH CVX – Early Stepless Series, 2000 to 2011, with Six-Cylinder Engines, 88.3 to 160 kW and Operating Weight from 6,270 to 7,520 kg
From 2000, Case IH used the CVX suffix to denote tractors with stepless transmission, before the technology was folded into the Puma series from 2007; the register lists models up to 2011. Engine output ranges from 88.3 to 160 kW, with models rated in horsepower spanning 120 to 210 hp, using six-cylinder engines with displacement from 6,590 to 6,600 cm³.
Read on 3 more paragraphs
Recorded operating weight runs from 6,270 to 7,520 kg, wheelbase from 2,806 to 2,832 mm, and top speed of the listed models spans 40 to 50 km/h.
The CVX series marked Case IH's entry into stepless transmission technology in the mid-to-upper power segment. For a used CVX model, distinguishing it from the later Puma CVX generation matters, since electronics and operating concept advanced considerably between generations.
With rated outputs from 88.3 to 160 kW, the CVX series falls within ISO 730 Category II to III for the rear three-point hitch, with a standard dual-speed power take-off at 540 and 1,000 revolutions per minute for heavy implements. Case IH remains part of the CNH Industrial group today, so spare parts for the engine, gearbox and hydraulics of this series run through the existing Case IH parts network, including electronic components for the stepless transmission, though older control units can be harder to source than mechanical parts.
Sources: SpecCodex register, model data: Case IH CVX, Case IH
Technical data
Engine
| Power | 210 hp (160 kW)correct |
|---|---|
| Cooling | water-cooledcorrect |
Drivetrain and chassis
| Drive | selectable four-wheel drivecorrect |
|---|
Frequently asked questions
How much power does the Case IH CVX 210 have?
The Case IH CVX 210 delivers 210 hp.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
