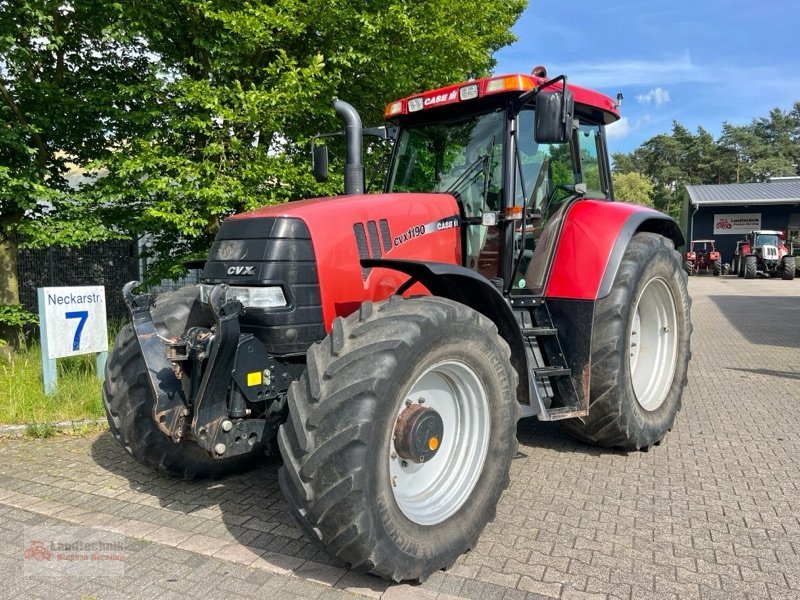

Case IH CVX 1190
Built: 2003–2005 · Series: CVX
More machines from model year 2003
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Case IH CVX – Early Stepless Series, 2000 to 2011, with Six-Cylinder Engines, 88.3 to 160 kW and Operating Weight from 6,270 to 7,520 kg
From 2000, Case IH used the CVX suffix to denote tractors with stepless transmission, before the technology was folded into the Puma series from 2007; the register lists models up to 2011. Engine output ranges from 88.3 to 160 kW, with models rated in horsepower spanning 120 to 210 hp, using six-cylinder engines with displacement from 6,590 to 6,600 cm³.
Read on 3 more paragraphs
Recorded operating weight runs from 6,270 to 7,520 kg, wheelbase from 2,806 to 2,832 mm, and top speed of the listed models spans 40 to 50 km/h.
The CVX series marked Case IH's entry into stepless transmission technology in the mid-to-upper power segment. For a used CVX model, distinguishing it from the later Puma CVX generation matters, since electronics and operating concept advanced considerably between generations.
With rated outputs from 88.3 to 160 kW, the CVX series falls within ISO 730 Category II to III for the rear three-point hitch, with a standard dual-speed power take-off at 540 and 1,000 revolutions per minute for heavy implements. Case IH remains part of the CNH Industrial group today, so spare parts for the engine, gearbox and hydraulics of this series run through the existing Case IH parts network, including electronic components for the stepless transmission, though older control units can be harder to source than mechanical parts.
Sources: SpecCodex register, model data: Case IH CVX, Case IH
Technical data
Engine
| Fuel | Diesel/RMEcorrect |
|---|---|
| Power | 192 hp (141.2 kW)correct |
| Rated speed | 2,100 rpmcorrect |
| Torque | 699 Nmcorrect |
| Speed at max. torque | 1,200 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 6,597 cm³correct |
| Bore | 108 mmcorrect |
| Stroke | 120 mmcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,766 mmcorrect |
|---|---|
| Width | 2,490 mmcorrect |
| Height | 3,055 mmcorrect |
| Wheelbase | 2,832 mmcorrect |
| Ground clearance | 500 mmcorrect |
| Unladen weight | 7,520 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | continuously variablecorrect |
| Front tyres | 540/65 R 28 AScorrect |
| Rear tyres | 650/65 R 38 AScorrect |
| Top speed | 40 km/hcorrect |
Working data
| Fuel tank capacity | 310 lcorrect |
|---|
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Other data
| Linkage category | Cat IIIcorrect |
|---|
Where this model stands
Power-to-weight ratio: 18.8 kW/t (141 kW / 7.5 t)
Power class: Heavy (> 180 hp)
Stronger than 90% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Case IH CVX 1190 have?
The Case IH CVX 1190 delivers 192 hp.
How much does the Case IH CVX 1190 weigh?
The unladen weight is 7,520 kg.
What engine does the Case IH CVX 1190 have?
6 cylinders, 6,597 cm³ displacement, Diesel/RME.
How fast does the Case IH CVX 1190 go?
Top speed is 40 km/h.
What are the dimensions of the Case IH CVX 1190?
4,766 mm × 2,490 mm × 3,055 mm.
When was the Case IH CVX 1190 built?
Production years: 2003–2005.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
