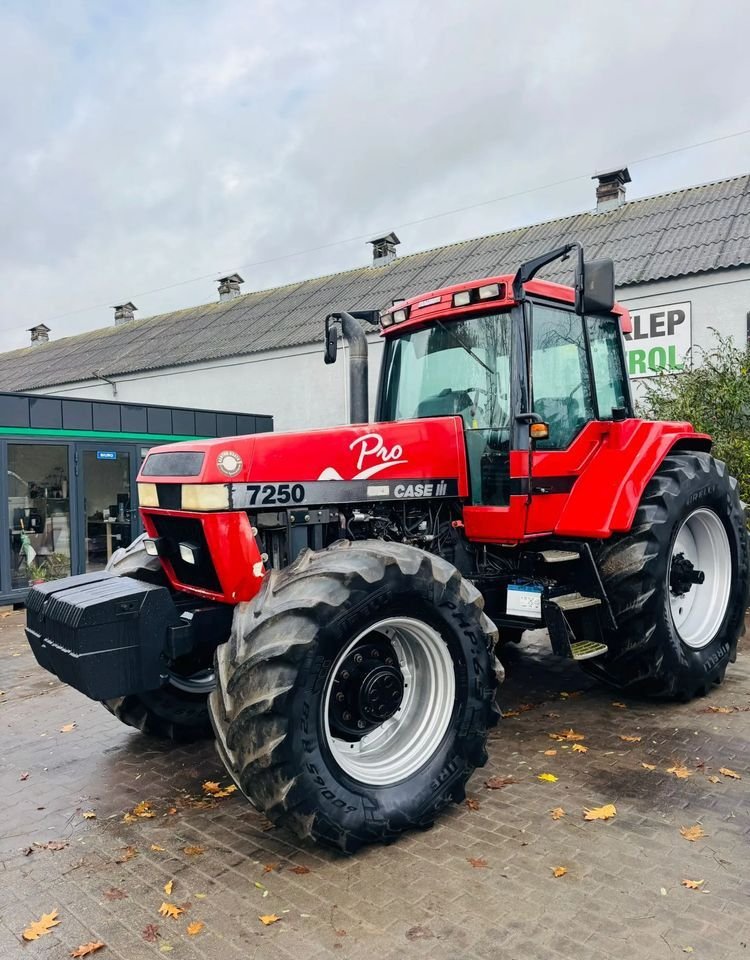

Case IH 7250 PRO
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The Case IH 7250 PRO is a tractor from the international brand Case IH. It belongs to the group of models that are not assigned to a specific series and was produced as part of the long‑term development of the brand. The machine is equipped with a 6‑cylinder engine with a displacement of 8,268 cc and a rated speed of 2,200 rpm.
With a power output of 261 hp (192 kW) and a maximum torque of 1,046 Nm, the 7250 PRO provides ample pulling capability for heavy tasks. Its curb weight of 8,318 kg and dimensions of 5,090 mm length, 3,048 mm width and 3,077 mm height give a stable stance and result in low ground pressure, which is advantageous on soft ground. The 24‑forward‑gear and 6‑reverse‑gear transmission (24 V/6 R) together with a fuel tank capacity of 359 L enable long operating periods without frequent refuelling. The Cat III lift category allows the use of heavy implements.
Since no comparative data are provided for the series, the typical applications of the 7250 PRO can be inferred from its size and power. Tractors of this class are commonly used for large‑area field work, intensive soil cultivation and the transport of heavy loads. The combination of high power, robust transmission and large fuel capacity makes it suitable for demanding agricultural operations where reliability and endurance are essential.
Case IH – other models: the collective page of tractors outside the named ranges, from the IH heritage (1056 XL, 1455 XL) through the 4200, 5100 and CS series to Farmall, Maxxum, Puma, Magnum and Steiger Quadtrac
This page gathers the Case IH tractors the register could not assign to a named range – the brand that emerged in 1985 when Tenneco bought the farm-equipment division of International Harvester and merged it with J.I. Case of Racine. The tractors therefore carry several origins: the IH 56 and 55 series from Neuss and Doncaster (1056 XL, 1455 XL, 1255) with the XL cab, the 4200 and 5100 (Maxxum) series from Neuss and Racine of the 1990s, the Steyr relatives CS and CVX after the merger into CNH in 1999, and today's Farmall (compact and utility tractors), Maxxum, Puma, Magnum and Steiger ranges, whose number gives the hp class – Puma 195 about 195 hp, Magnum 235 235 hp, Steiger 535 535 hp – and whose suffixes CVX, Quadtrac, Accusteer and Heavy-Duty mark the stepless transmission, the four-track undercarriage and chassis versions. The engines are IH's own in the old, Perkins in the small, FPT (NEF and Cursor) in the medium and big and Cummins in the oldest Steigers.
Read on 3 more paragraphs
The register lists here 275 versions with 17 to 398.9 kW from three- to six-cylinders of 2,539 to 14,994 cm³, PTO outputs from 45 to 473 hp, lift capacities from 742 to 19,620 kg, unladen weights from 2,115 to 24,494 kg, lengths from 3,390 to 6,040 mm and widths from 1,347 to 3,048 mm.
Case IH is New Holland's red sister in the CNH group, number two behind John Deere in North America and, with the Quadtrac, the inventor of the four-track big tractor; the Maxxum and Puma ranges are technically the twins of the Steyr Profi and CVT from St. Valentin.
On used tractors, clutch, transmission and XL cab count on the IH heirs, operating hours, powershift or CVX transmission, front-axle suspension and electronics on the Maxxum and Puma, engine, transmission and tyres or tracks on the Magnum and Steiger; parts run through CNH.
Sources: SpecCodex register, model data: Case IH (weitere Modelle), Case IH (CNH, Hersteller)
Technical data
Engine
| Power | 261 hp (192 kW)correct |
|---|---|
| Rated speed | 2,200 rpmcorrect |
| Torque | 1,046 Nmcorrect |
| Cylinders | 6correct |
| Displacement | 8,268 cm³correct |
Dimensions and weights
| Length | 5,090 mmcorrect |
|---|---|
| Width | 3,048 mmcorrect |
| Height | 3,077 mmcorrect |
| Wheelbase | 3,006 mmcorrect |
| Unladen weight | 8,318 kgcorrect |
Drivetrain and chassis
| Gearbox | 24 V/6 Rcorrect |
|---|
Working data
| Fuel tank capacity | 359 lcorrect |
|---|
Other data
| Linkage category | Cat IIIcorrect |
|---|
Where this model stands
Power-to-weight ratio: 23.1 kW/t (192 kW / 8.3 t)
Power class: Heavy (> 180 hp)
Stronger than 96% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Case IH 7250 PRO have?
The Case IH 7250 PRO delivers 261 hp.
How much does the Case IH 7250 PRO weigh?
The unladen weight is 8,318 kg.
What engine does the Case IH 7250 PRO have?
6 cylinders, 8,268 cm³ displacement.
What are the dimensions of the Case IH 7250 PRO?
5,090 mm × 3,048 mm × 3,077 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 14 individual figures for this model. They come from 2 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
