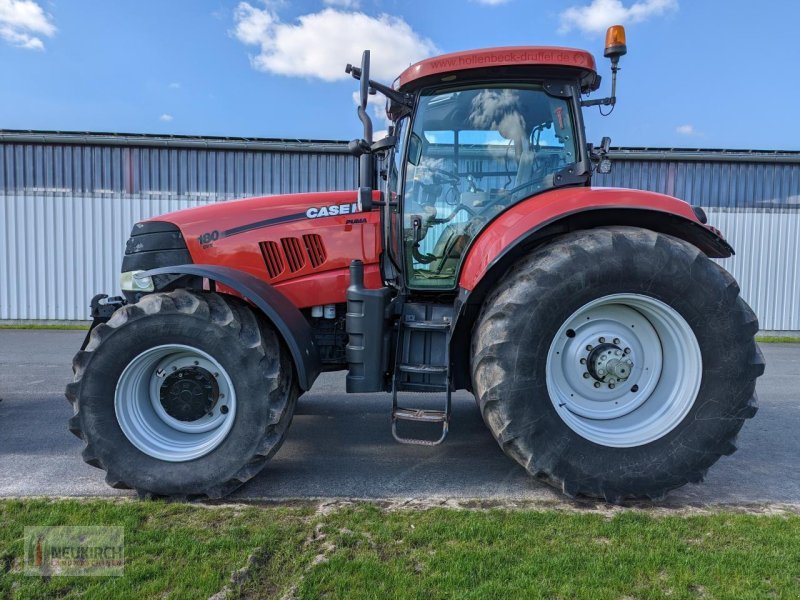

Case IH 180 2WD – specifications
Series: Other models
Build year not documented · Data origin: Reference work (Wikipedia/Wikibooks), Directory data · sources
Case IH – other models: the collective page of tractors outside the named ranges, from the IH heritage (1056 XL, 1455 XL) through the 4200, 5100 and CS series to Farmall, Maxxum, Puma, Magnum and Steiger Quadtrac
This page gathers the Case IH tractors the register could not assign to a named range – the brand that emerged in 1985 when Tenneco bought the farm-equipment division of International Harvester and merged it with J.I. Case of Racine. The tractors therefore carry several origins: the IH 56 and 55 series from Neuss and Doncaster (1056 XL, 1455 XL, 1255) with the XL cab, the 4200 and 5100 (Maxxum) series from Neuss and Racine of the 1990s, the Steyr relatives CS and CVX after the merger into CNH in 1999, and today's Farmall (compact and utility tractors), Maxxum, Puma, Magnum and Steiger ranges, whose number gives the hp class – Puma 195 about 195 hp, Magnum 235 235 hp, Steiger 535 535 hp – and whose suffixes CVX, Quadtrac, Accusteer and Heavy-Duty mark the stepless transmission, the four-track undercarriage and chassis versions. The engines are IH's own in the old, Perkins in the small, FPT (NEF and Cursor) in the medium and big and Cummins in the oldest Steigers.
Read on 3 more paragraphs
The register lists here 275 versions with 17 to 398.9 kW from three- to six-cylinders of 2,539 to 14,994 cm³, PTO outputs from 45 to 473 hp, lift capacities from 742 to 19,620 kg, unladen weights from 2,115 to 24,494 kg, lengths from 3,390 to 6,040 mm and widths from 1,347 to 3,048 mm.
Case IH is New Holland's red sister in the CNH group, number two behind John Deere in North America and, with the Quadtrac, the inventor of the four-track big tractor; the Maxxum and Puma ranges are technically the twins of the Steyr Profi and CVT from St. Valentin.
On used tractors, clutch, transmission and XL cab count on the IH heirs, operating hours, powershift or CVX transmission, front-axle suspension and electronics on the Maxxum and Puma, engine, transmission and tyres or tracks on the Magnum and Steiger; parts run through CNH.
Sources: SpecCodex register, model data: Case IH (weitere Modelle), Case IH (CNH, Hersteller)
Technical data
Engine
| Power | 182 hp (133.9 kW)correct |
|---|---|
| Rated speed | 2,200 rpmcorrect |
| Torque | 802 Nmcorrect |
| Cylinders | 6correct |
| Displacement | 6,751.5 cm³correct |
| Aspiration | turbocharged, intercooledcorrect |
| Engine oil capacity | 15.1 lcorrect |
Dimensions and weights
| Length | 4,916 mmcorrect |
|---|---|
| Width | 2,165 mmcorrect |
| Height | 3,040 mmcorrect |
| Wheelbase | 2,886.5 mmcorrect |
| Unladen weight | 7,125 kgcorrect |
Drivetrain and chassis
| Gearbox | 18 V/6 R, 19 V/6 R and 28 V/12 Rcorrect |
|---|---|
| Gearbox type | 17-speed full powershift transmissioncorrect |
| Forward gears | 17correct |
| Reverse gears | 6correct |
Working data
| Lifting capacity | 5,800 kgcorrect |
|---|---|
| Pump flow | 184.3 l/mincorrect |
| Hydraulic oil capacity | 100.3 lcorrect |
| Fuel tank capacity | 440.2 lcorrect |
Other data
| Linkage category | Cat II/IIIcorrect |
|---|---|
| PTO output | 150 hpcorrect |
| PTO speed | 540E/1000 rpmcorrect |
| System voltage | 12 Vcorrect |
Where this model stands
Power-to-weight ratio: 18.8 kW/t (134 kW / 7.1 t)
Power class: Heavy (> 180 hp)
Stronger than 89% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Case IH 180 have?
The Case IH 180 delivers 182 hp.
How much does the Case IH 180 weigh?
The unladen weight is 7,125 kg.
What engine does the Case IH 180 have?
6 cylinders, 6,752 cm³ displacement.
What is the PTO output of the Case IH 180?
PTO output is 150 hp. PTO speeds: 540E/1000 rpm.
How much does the rear linkage of the Case IH 180 lift?
The rear linkage lifts 5,800 kg.
What are the dimensions of the Case IH 180?
4,916 mm × 2,165 mm × 3,040 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 25 individual figures for this model. They come from 2 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Are you the manufacturer or a dealer of this machine? Check the data and add missing figures — we mark your correction as manufacturer or dealer information.
Check and complete the data →Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
