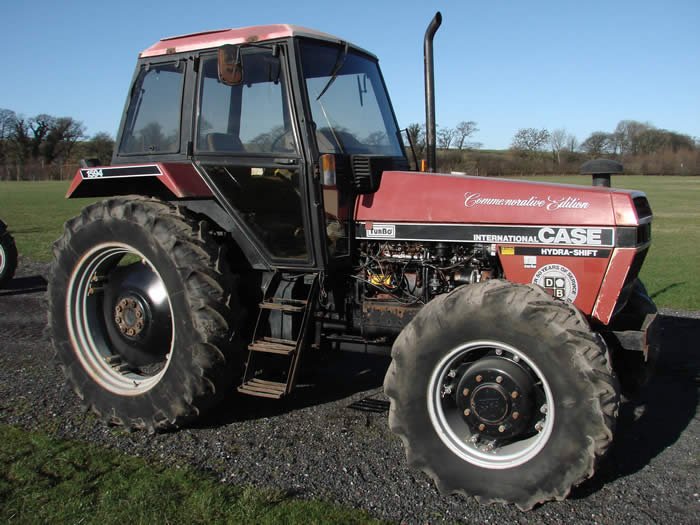

Case IH 1594
Built: 1985-1988 · Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The Case IH (cnh) 1594 rolled off the line in 1985-1988 as a tractor. It is powered by a six-cylinder engine producing 63 kW. Rated power is reached at 2,325 rpm.
It runs on diesel; the engine is water-cooled. The predecessor was the Case 1594 / David Brown 1594. Within the range, rated power spans from 17 to 400 kW; with 63 kW, the 1594 sits in the lower third. Directly alongside are the CX80A-S-4X4/236 with 62 kW below and the CS86 Bavaria with 64 kW above.
Technical data
Engine
| Engine make | Casecorrect |
|---|---|
| Engine model | AD6/55correct |
| Fuel | dieselcorrect |
| Power | 85 hp (63 kW)correct |
| Rated speed | 2,325 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 5,392 cccorrect |
| Bore | 100correct |
| Stroke | 114correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Wheelbase | 88.5 in (2247,9 mm)correct |
|---|---|
| Unladen weight | 7, 380 to 8, 180 lbscorrect |
Drivetrain and chassis
| Drive | rear-wheel driveWD/MFWDcorrect |
|---|---|
| Forward gears | 12correct |
| Reverse gears | 4correct |
Working data
| Lifting capacity | 5,366 lbs (2 434 kg)correct |
|---|---|
| Fuel tank capacity | 35.9 galcorrect |
| PTO speed | 540/1000correct |
| Linkage category | Cat IIcorrect |
Origin and approval
| Plant | Englandcorrect |
|---|---|
| Predecessor | Case 1594 / David Brown 1594correct |
Frequently asked questions
How much power does the Case IH 1594 have?
The Case IH 1594 delivers 85 hp.
What engine does the Case IH 1594 have?
6 cylinders, diesel.
When was the Case IH 1594 built?
Production years: 1985-1988.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
